Driverless LED Flood Light

Home  /  Products / LED Flood Light / Driverless LED Flood Light
  • 20w LED Floodlight With Integral Driver
  • 20w LED Floodlight With Integral Driver
  • 20w LED Floodlight With Integral Driver
  • 20w LED Floodlight With Integral Driver
  • 20w LED Floodlight With Integral Driver

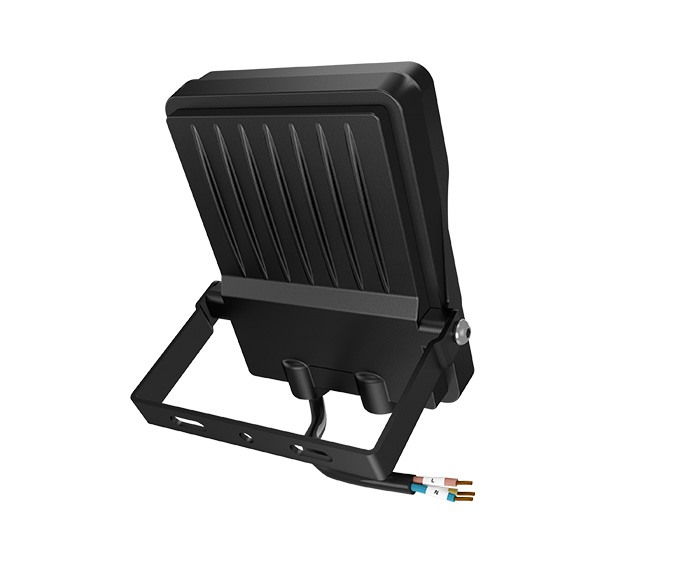

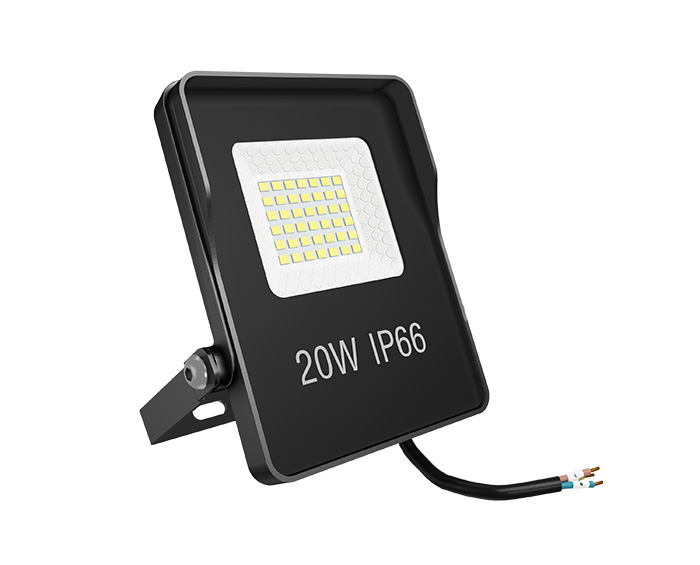

20w LED Floodlight With Integral Driver

Our LED driverless floodlights combine modern lighting technology with functional design to deliver unmatched lighting performance and energy efficiency. IP66 rated 20w LED Floodlight with ultra-thin design with minimal visual impact; IK08 grade die-cast aluminum housing and tempered glass provide excellent protection.



Key Features

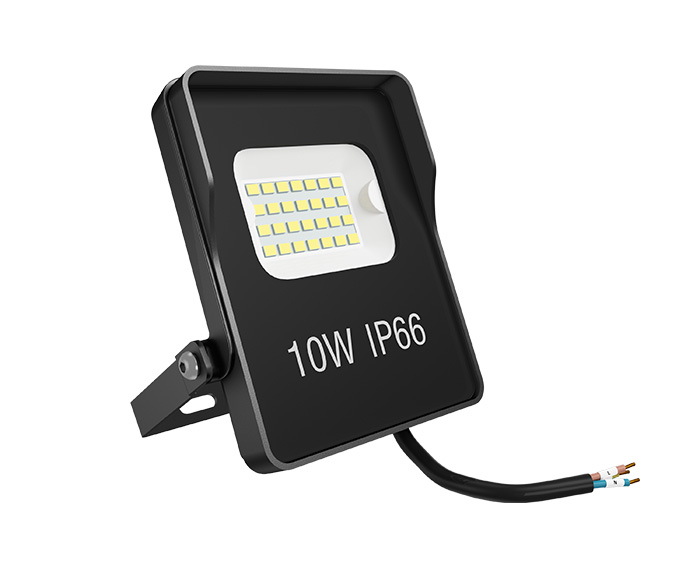

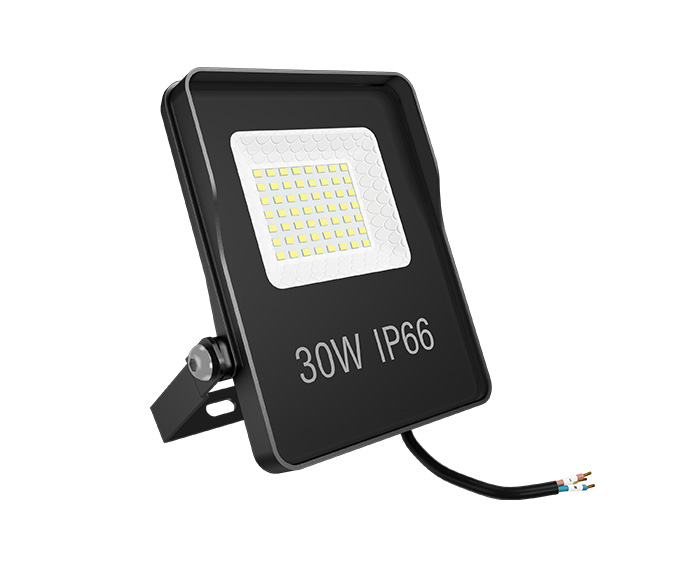

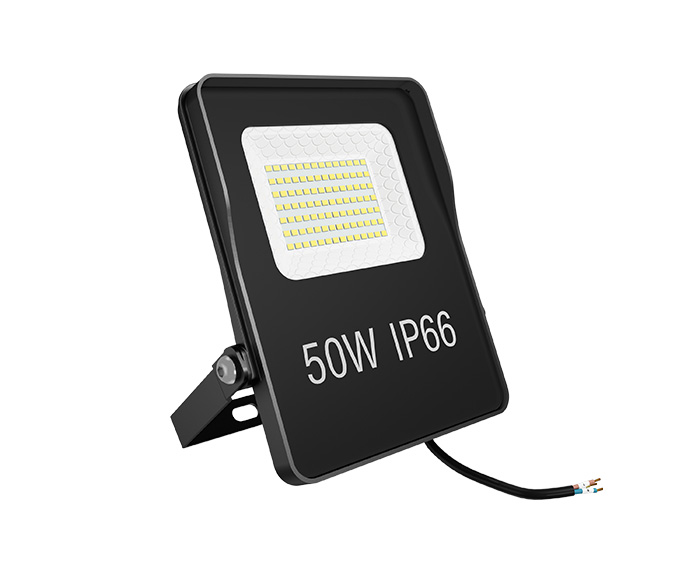

1. Wide power range: 10W~50W

2. Ideal for retro-fit of existing halogen fixtures

3. No upper light output ratio (ULOR 0%) when mounted at 0° tilt

4. Optimized weight and size due to compact design

5. Energy savings of up to 90 % compared to halogen floodlights

6. No mercury or other hazardous materials

7. 2 years warranty

8. Multiple lighting distributions available

9. CE/ RoHS/ IK08/IP66


LED BrandSMD 2835
Driver BrandIntegrated Driver
Normal Wattage20W
Input Voltage220-240VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency120lm/w
Lamp Rated Lumen output2400 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature4000K, or 5000K
Photometric Type120   degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C,   10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-casting aluminum
CoverToughened   glass
RatingIP66, IK08
Protection Class I
CertificationCE, ROHS, LM80
Dimming OptionsNon-dimming
Control OptionsPIR sensor
Color OptionsBlack
Warranty2   years


What is a driverless floodlight?

Driverless LEDs use high-voltage integrated circuits with adjustment and change chips to cleverly change the number of LEDs in the string during the cable cycle so that the voltage of the LED string matches the instantaneous cable voltage.

What is the purpose of floodlights?

Floodlights are specifically designed to illuminate areas such as the front and back yards, parking lots, terraces, and decks. Floodlights work by "flooding" an area with light, where they can produce a wider beam of light, typically up to 120 degrees.

Can LED lights work without a driver?

Because LEDs require a constant DC or 12v or 24v, all LED systems require LED drivers (except those specifically developed for power control by the supply voltage, such as supply voltage strips or LED bulbs).
