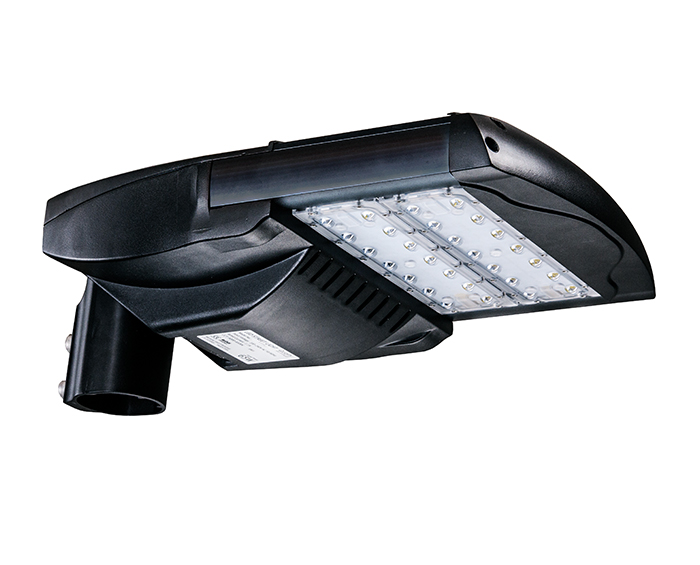

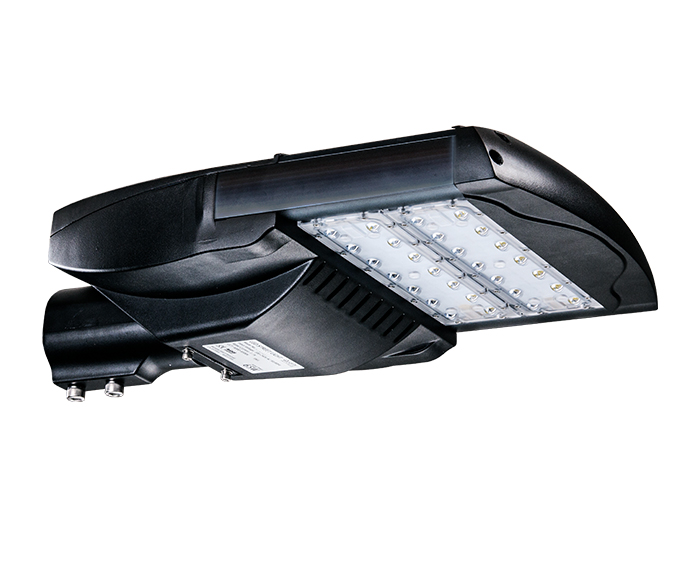

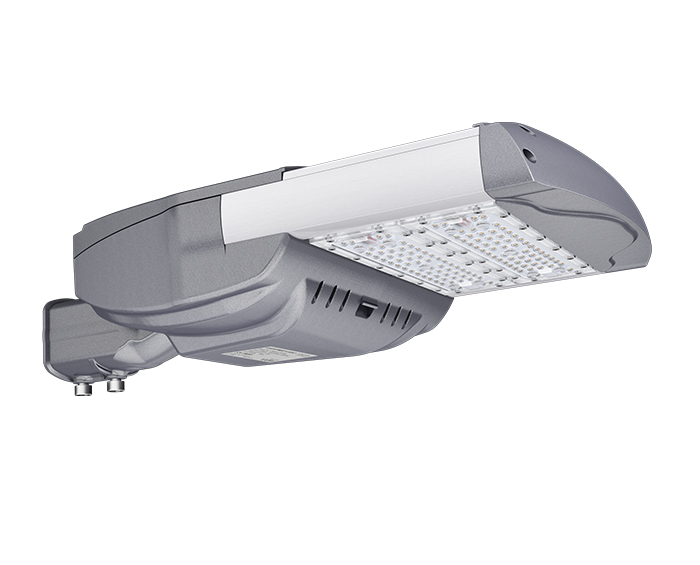

80W Modular Design Road Lamp

80W Modular Design Road Lamp, Tool-free opening and modular design saving installation and maintenance costs, this is the most classic led street light in ZGSM, So far, it has sold more than 500,000 pieces, exported to more than 100 countries and regions, and has been widely praised.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED damage won't affect others' normal work.

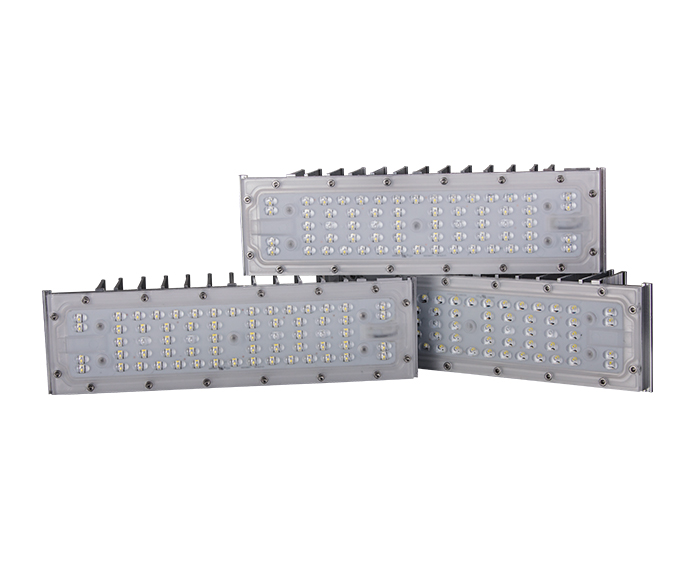

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE,ROHS,GS,CB,LM80,FCC,IP66,IK10

14. 7 years warranty


Specifications

ModelZGSM-LD80H4
LED BrandLumileds 3030/5050
Driver BrandMeanwell or Inventronics
Normal Wattage80W
LED Module Quantity2 modules
Input Voltage100-240/277VAC/DC24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-165 lm/w
Lamp Rated Lumen output11200-13200 lm (Lumen tolerance +/- 5%)
Color Rendering Index70( 80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE,ROHS,ENEC,CB,LM80,LM79,FCC,IP66,IK10
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years



FAQ

1. Why do street lights have glare?

Glare is an effect that occurs when the eyes face bright light against a dark background. This effect is common in oncoming headlights at night, as well as when dealing with street lights. Most contemporary street lamps are usually cobra heads or cone headlamps.


2. How do street light sensors work?

Active infrared sensors emit low-intensity infrared energy to specific areas to detect vehicles. When this energy is interrupted by the presence of the vehicle, the sensor sends a pulse to the traffic light to change the light.


3. What is SPD?

SPD in LED lighting area usually means Surge Proection Device. It's a device or appliance that protects electrical equipment against voltage spikes in alternating current (AC) circuits. A voltage spike is a brief transient occurrence that can reach over 1,000 volts and lasts 1 to 30 microseconds. Lightning can generate a spike in voltage of over 100,000 volts, which can burn through wiring insulation and cause fires, but even small spikes can harm a wide range of electrical items, including computers, battery chargers, modems, and televisions. The surge device will typically activate at a predetermined voltage, usually 3 to 4 times the mains voltage, and divert the current to earth. The surge may be absorbed by some gadgets and released as heat.
