Modular Design LED Flood Light

Home  /  Products / LED Flood Light / Modular Design LED Flood Light
  • UL Standard 80w Modular Design led floodlight outdoor
  • UL Standard 80w Modular Design led floodlight outdoor
  • UL Standard 80w Modular Design led floodlight outdoor
  • UL Standard 80w Modular Design led floodlight outdoor
  • UL Standard 80w Modular Design led floodlight outdoor

UL Standard 80w Modular Design led floodlight outdoor

Series H LED Flood Light

Model:

ZGSM-FGD80H

Application:

Warehouse | Workshop | Garage | Area | Building


PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

3. High Lumen output up to 165lm/ w with high quality LED chips.

4. Various applications with different mounting Accessories.

5. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

6. Designed to last at least 100, 000 hours at L70.

7. Multiple lighting distributions are available.


Specifications

ModelZGSM-FGD80H
LED BrandLumileds LUXEON® TX

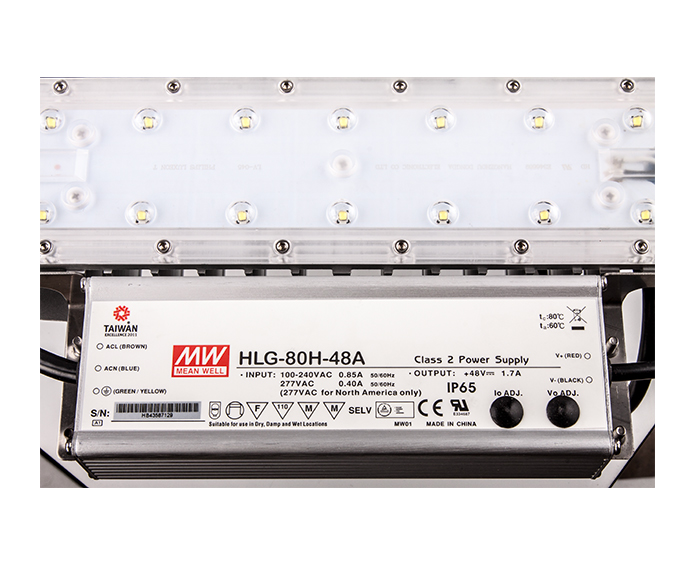

Driver BrandMeanwell HLG series
Norminal Wattage80W
LED Module Quantity2 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110 lm/w
Lamp Rated Lumen output8800 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

Fixture Dimension366 x340 x156 mm
Fixture Weight4.3 kg /9.5 lbs
Packing Dimension415 x365 x160 mm
Packing Weight5.1 kg /11.2 lbs
