Economical LED street light

Home  /  Products / LED Street Light / Economical LED street light
  • 70w Economical LED street Light
  • 70w Economical LED street Light
  • 70w Economical LED street Light
  • 70w Economical LED street Light
  • 70w Economical LED street Light

70w Economical LED street Light

Series Kmini2 LED Street Light

Model:

ZGSM-LD70Kmini2+

Application:

Street | Road | Highway | Parking lot | Bridge | Path


70w Economical LED street Light
PRODUCT DESCRIPTION

Key Features

● Wide power range: 60W~130W.

● Smart design, low transportation costs.

● Special circuit design, single LED's damage won't affect others' normal work.

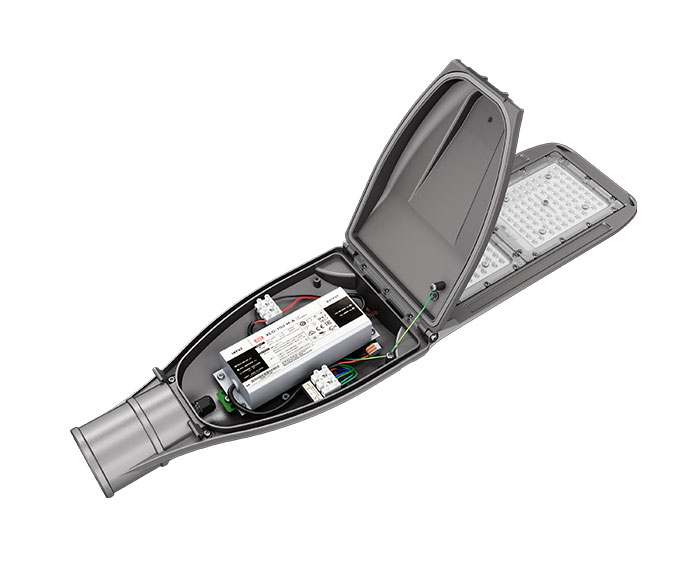

● Tool-less open for easy installation, replacement and maintenance.

● High Lumen output up to 160lm/ w with high quality LED chips.

● Multiple lighting control options are available, e.g.1-10V, photocell, motion sensor.

● Designed to last at least 100,000 hours at L70.


Specifications

Specifications
ModelZGSM-LD70Kmini2+
LED BrandLUMILEDS® LUXEON 3030/ 5050
Driver BrandInventronics
Norminal Wattage70W
LED Chip Quantity

3030: 160pcs  5050: 56pcs

Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency3030: 153 lm /w  5050: 160 lm /w
Lamp Rated Lumen output3030: 10710 lm  5050: 11200 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric Type3030: Type II Medium  5050: Type II Medium BLS
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; PC Lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I
SPD10KV (20KV optional)
CertificationCE, ENEC,CB ROHS,LM80,LM79,IP66 IK10,ISTMT
Dimming Options1-10V
Control OptionsPhotocell or Smart control
Color OptionsDeep grey
Warranty5 years



Packing Details

Packing Details
Fixture Dimension717X178X99mm
Fixture Weight3.62 kg
Packing Dimension735X195X120mm
Packing Weight4.20 kg
