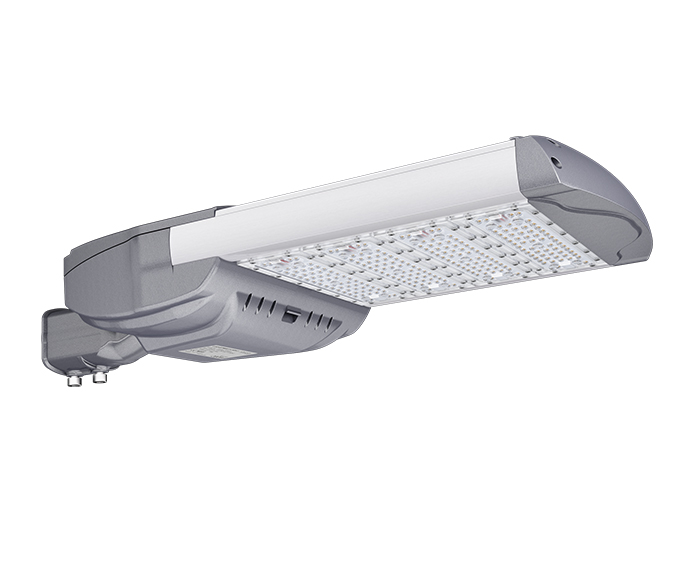

160w Class II Modular Design Street Light

ZGSM is a factory focusing on street light production . And modular street light is our main product line.

We have developed three different modular street lights since 2013, the H series street light is our most well sold modular street light till now.

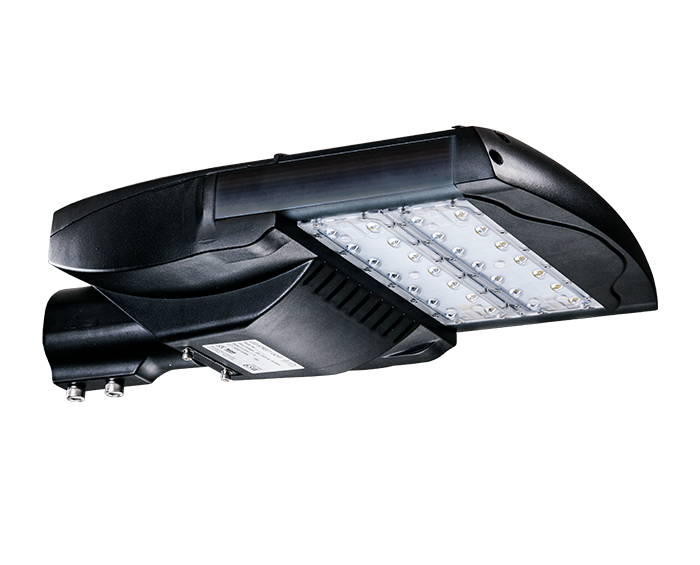

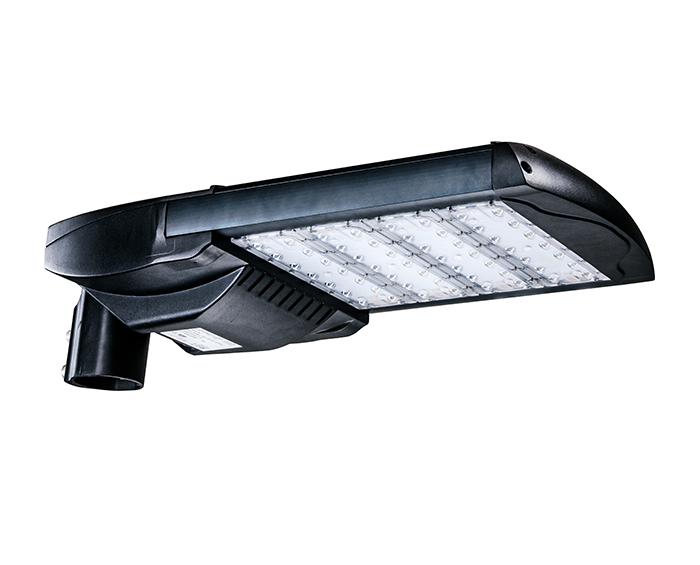

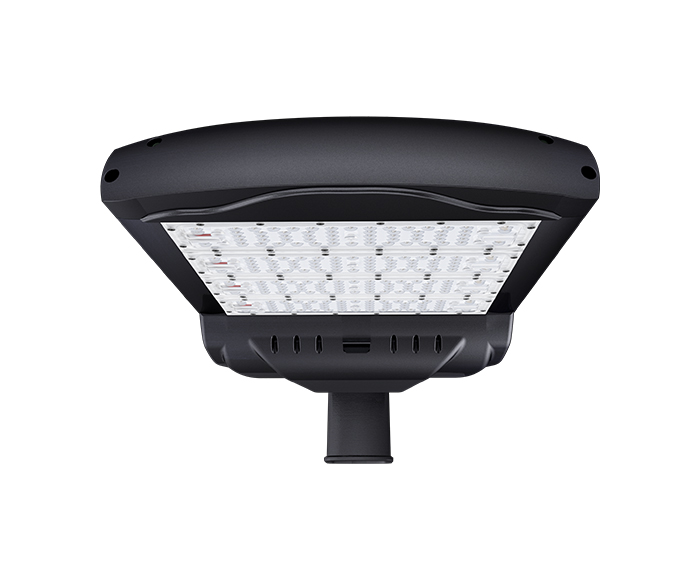

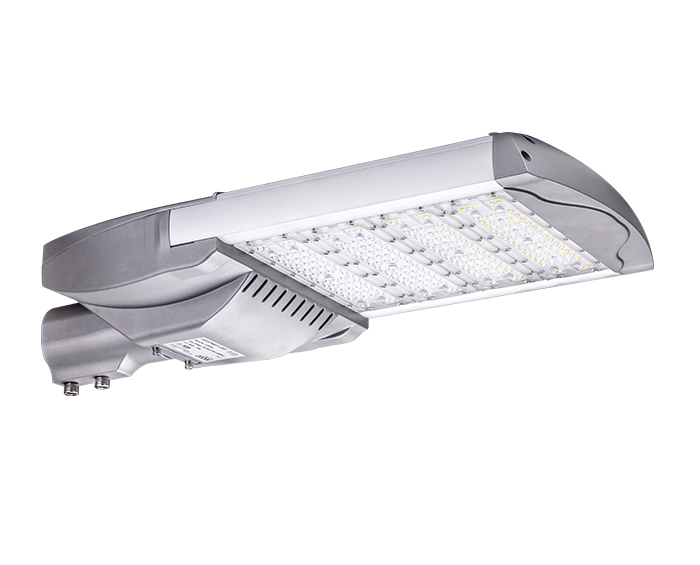

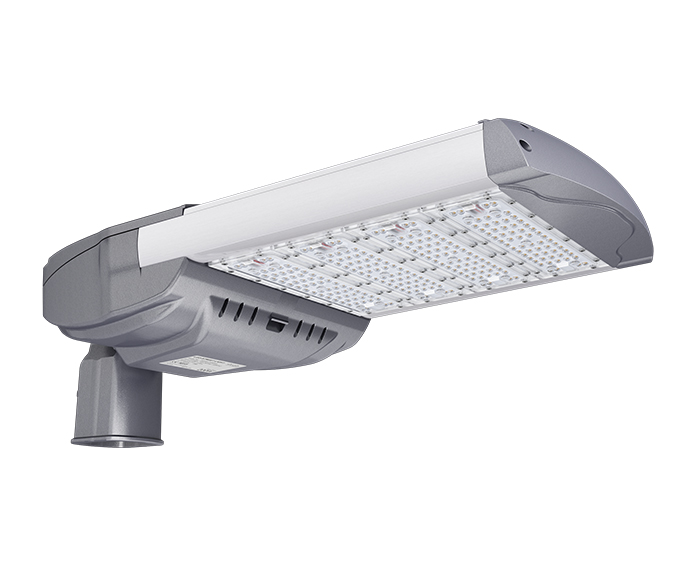

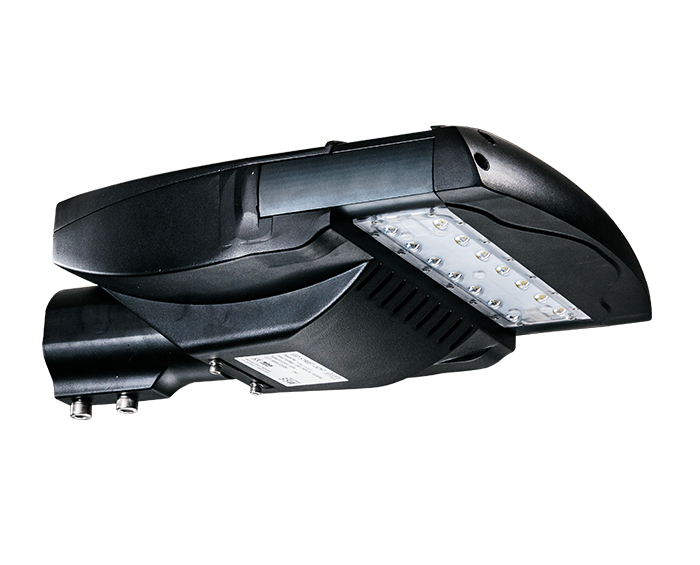

H series adopts modular pluggable technology which makes it much more convenient and easy for future maintenance.

Besides the technology improvement, the heat dissipation and waterproof performance are very good for the H series modular LED street lights.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

Below are the features of our H series.

1. Wide power range: 35W~320W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE,ROHS,GS,CB,LM80,FCC,IP66,IK10

14. 7 years warranty

Specifications

Model	ZGSM-LD160H2
LED Brand	Lumileds Luxeon TX
Driver Brand	Meanwell or Inventronics
Normal Wattage	160W
LED Module Quantity	4 modules
Input Voltage	100-240/277VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	>110lm/w
Lamp Rated Lumen output	17600 lm (Lumen tolerance +/- 5%)
Color Rendering Index	Ra>70
Color Temperature	3000K or 4000K or 5000K or 5700K
Photometric Type	Type I Medium;Type II Medium;Type III Medium,TypeV,Short
Optimal Operating Temperature	25°
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100000 hours -L70, @25 ºC (77 ºF)
Wind Index	Force 12
Body	Die-cast aluminum Housing
Cover	PC lens
Pole Fitter Diameter	60mm ( 50mm optional)
Rating	IP66 IK10
Protection	Class I ( Class II optional)
SPD	10KV (20KV optional)
Certification	CE,ROHS,GS,CB,LM80,FCC,IP66,IK10
Dimming Options	1-10V or DALI or PWM or Timer
Control Options	Photocell or Motion sensor or Smart control
Color Options	Silver or Black
Warranty	7 years

FAQ

1. What's Modular LED Street Light?

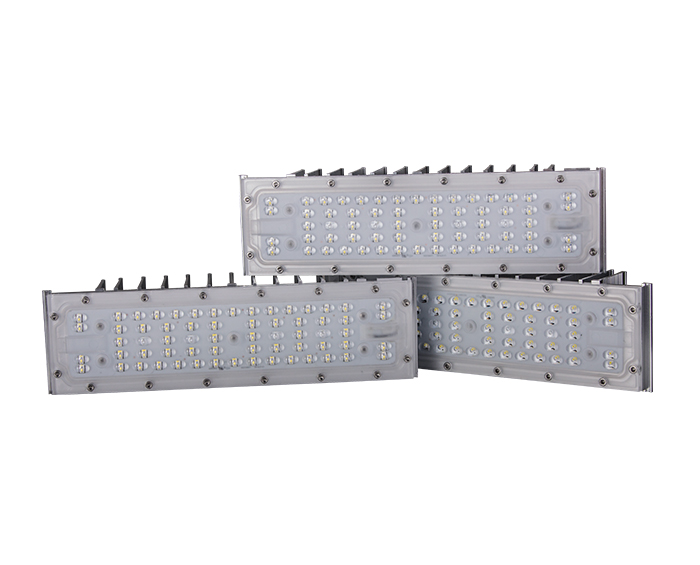

Modular LED street light refers to street light of LED modules which consist of LED chips, heatsink, and lens. An LED module is a structure that integrates LED light source, light distribution, heat dissipation, dustproof and waterproof grades. Years ago LED street lamp which is composed of one or several modules replaced traditional LED street lights. Compare to traditional LED street lamps, LED light sources of modular street lights are much easier to replace on-site once they are damaged. Previously the lamps can only be replaced as a whole or returned to the factory for maintenance, which results in waste of resources, time-consuming and laborious problems.

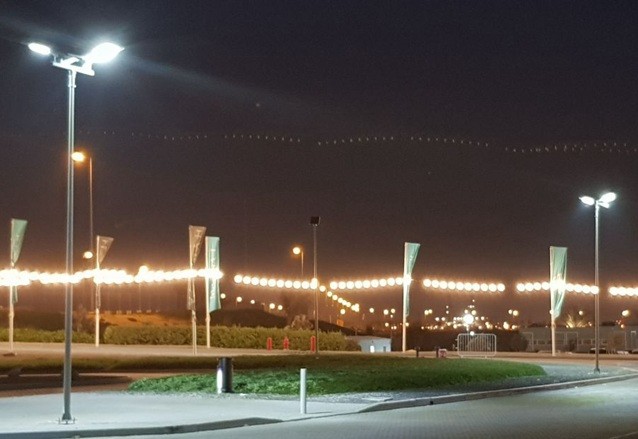

2. Which kind of LED lights are best for parking lot lighting?

LED Street Lights, LED Flood Lights and LED High Mast Lights and other kinds of LED lights, which could be installed on the pole and have wide beam angles, are best for parking lot lighting. Choosing LED lights to replace the old HPS or metal halide lamps could not only help to save energy, but also good to our environment.

3. What are the benefits of LED solutions?

· Significant energy savings - more than 60% as compared to typical street lighting

· Good color rendering, which makes colors appear more natural.

· Long service life - up to 100,000 hours, resulting in lower maintenance costs.

· White light that is uniform and of good quality. LED lighting helps to make spaces safer by improving facial recognition for security and CCTV cameras.

· When light is not required, LEDs can be muted, resulting in extra energy savings. LEDs can also be networked and controlled remotely by connecting them to sensors and controls.
