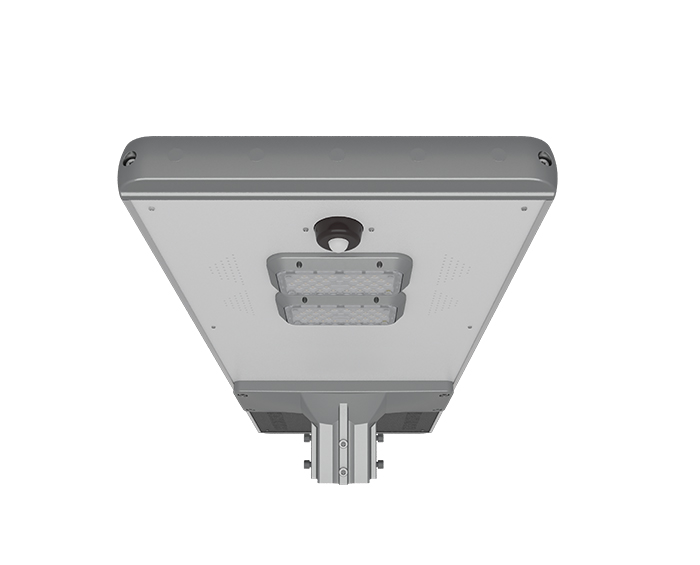

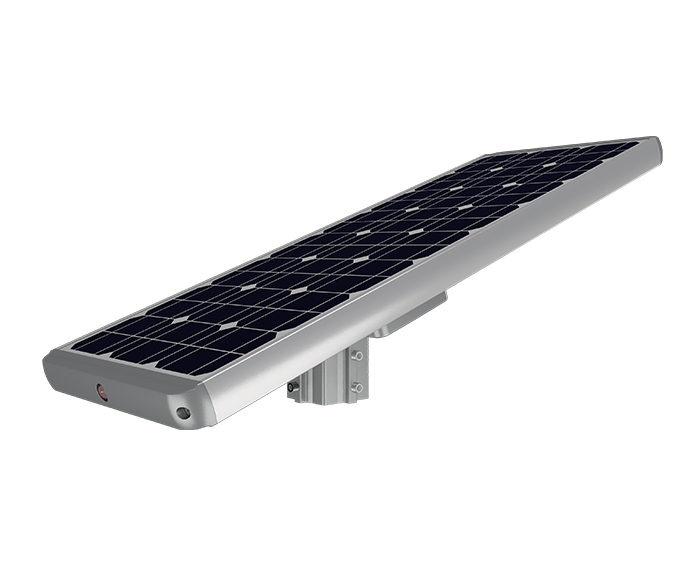

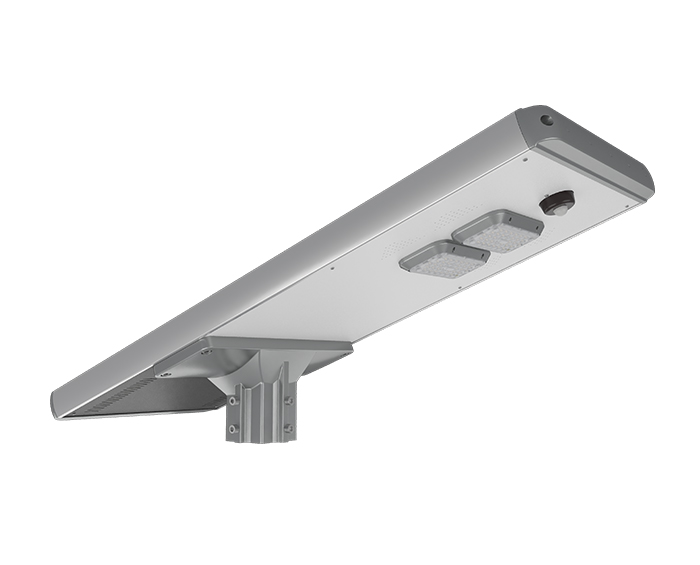

40AH Intelligent induction 60w solar courtyard lamp

Series PV2 All in One Solar Street Light

Model:

ZGSM-PV706040

Application:

Street | Road | Highway | Parking lot | Path | Garden


Share:
PRODUCT DESCRIPTION

Key Features

1. Wide power range: 10W~60W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

3. High Lumen output up to 145lm/ w with high quality LED chips.

4. Lithium batteryimproves the reliability of the luminaire.

5. Monocrystalline silicon solar panels, greatly improving solar energy conversion efficiency.

6. Smart MPPT controller realizes intelligent control of lamps.

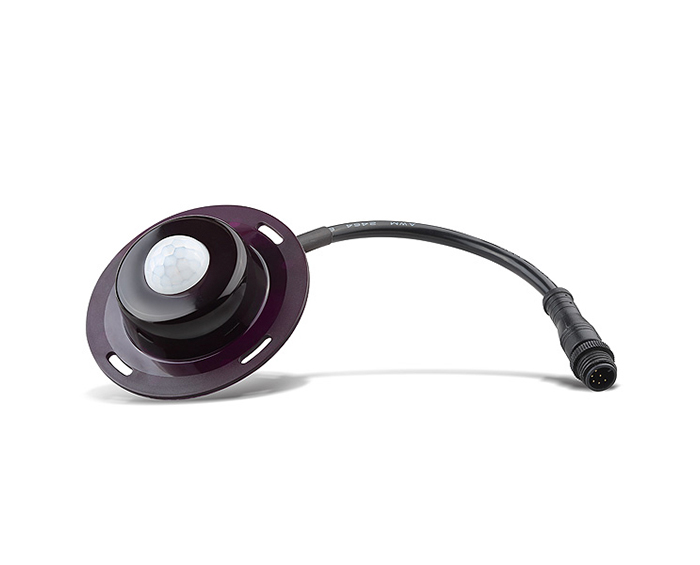

7. Multiple lighting control options are available, e.g. motion sensor, PIR sensor.


Specifications

ModelZGSM-PV706040
LED Number90units
Nominal Power60W
Battery Spec.40AH /11.1V
Solar Panel Spec.Monocrystal 70W /18V
LED BrandPhilips Lumileds 3030 2D
Luminous Flux7800lm
Light type1S
CCT3000K.4000K.5000K.5700K
Charge time<6.5 Hours (Low battery voltage)
Worktime at Energy
-saving Model(30%)
more than 19.5 hours
Discharge Temperature-20℃~+60℃
Charge temperature<60℃
Light control voltage5-11V
mounting height6-8m
space between light18~35m
Pole Diamerter FixtureRound pole: Φ60~85mm; Square pole : 60 x60 ~77 x77mm
RatingIP65 IK10
Induction TypeHuman infrared induction or microwave induction function
CertificationCE,ROHS,LM80
warranty period3 years

Packing Details

Fixture Dimension1120x426x229mm
Fixture Weight17.8kg
Packing Dimension1175X485X140mm
Packing Weight19.4kg
