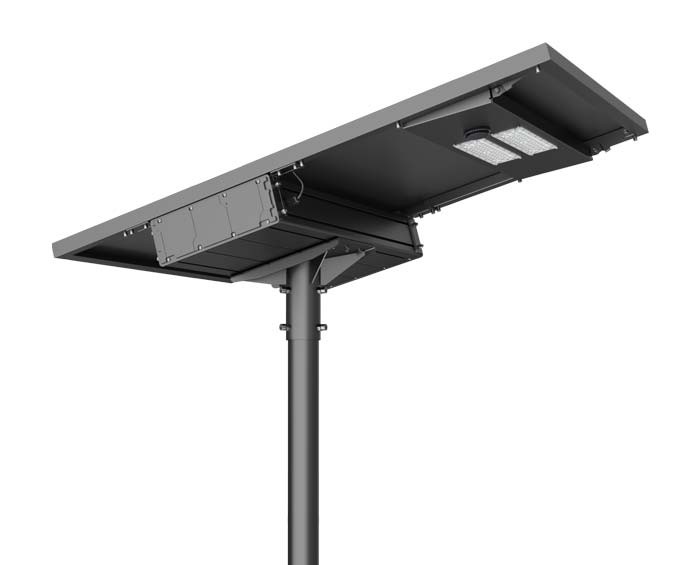

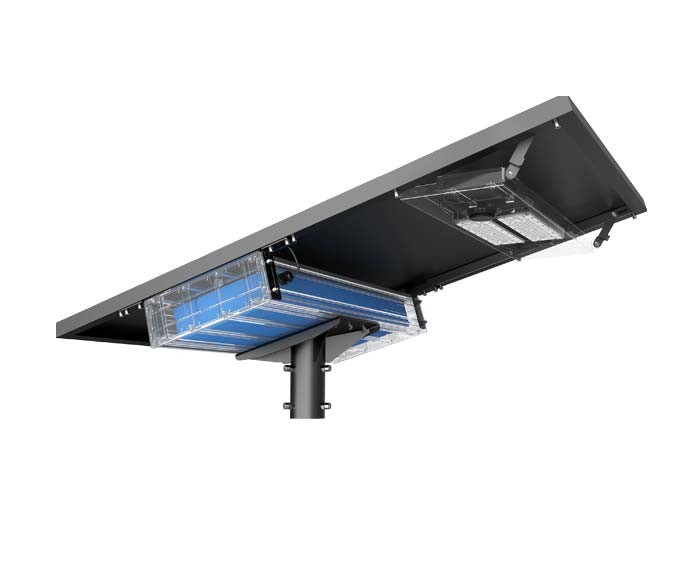

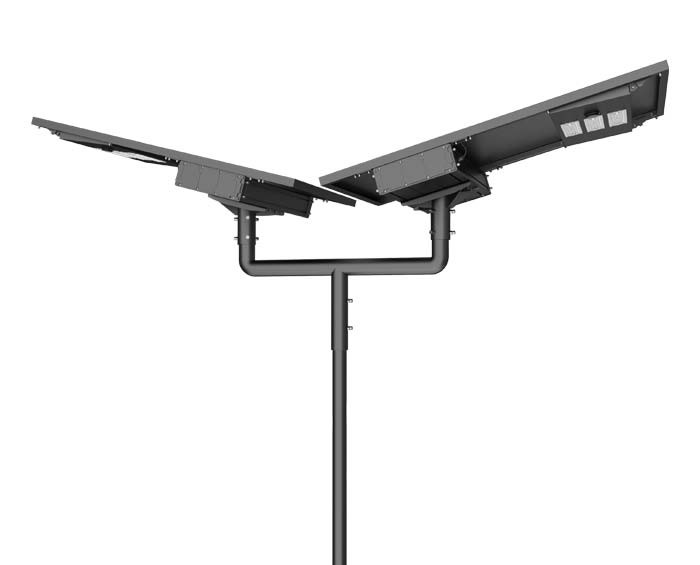

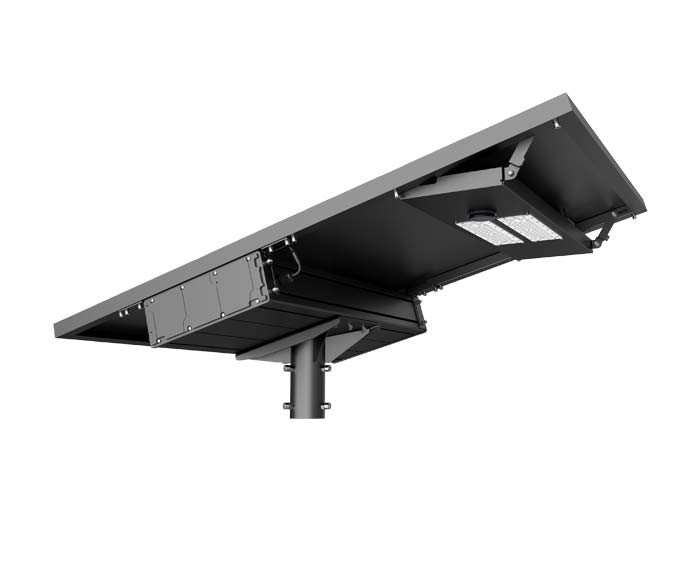

Series PV7 Integrated Solar Street Light

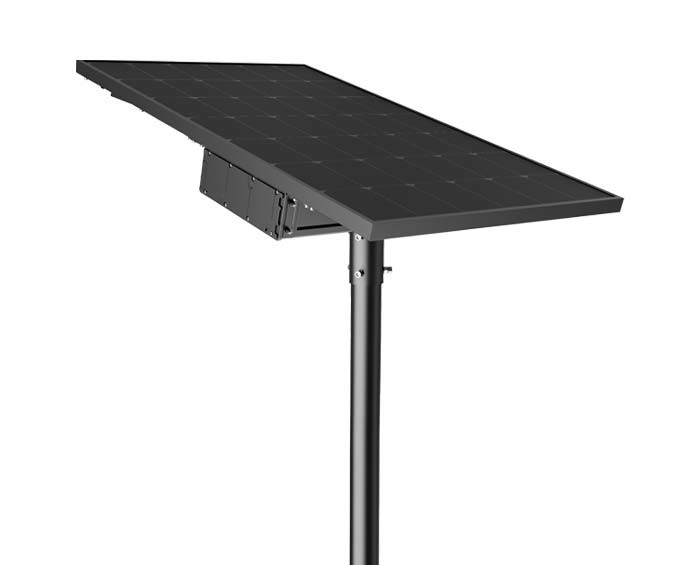

PV7 series integrated solar street light integrate solar panels, batteries, controllers, LED light sources and other components into one lamp. Its main features are compact design and easy installation. Adjustable LED modules and rich light distribution curve design enable PV7 to provide uniform lighting over a large area. PV7 series integrated solar street light offer two designs: integrated and semi-integrated. Both designs of LED solar street lights have the advantages of easy installation, energy saving and environmental protection, and are suitable for areas where wiring is not required.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Watts: 80-120W

2. Light Efficiency up to 200lm/w

3. All in one design

4. MPPT smart controller featuring various dimming options

5. Lithium-ion battery with higher power density

6. Tailored solar street lighting solutions available

7. Adjustable LED module for aiming the target area

8. Support remote control to adjust configuration

9. CE, ROHS, IP66, MSDS certified

10. Integrated Motion/PIR Sensor for energy conservation

Specifications

Series No	Series PV7
Power	80W, 90W, 100W, 120W
Efficacy	200lm/W
Input Voltage	DC 12/24V
Battery Spec	1536-2304WH
Solar Panel Spec	Monocrystalline silicon 160W/180W/200W/240W
IP Rating	IP66
IK Rating	IK10
CCT	2200K-6500K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-20°C to + 60°C
Light Distribution	Type II, Type III, Type V
Mounting Option	Post top
Warranty	3 Years
Certification	CE, IEC, ROHS, LM79, IP66, IK10, LM80, TM-21, IEC62471
Control	Motion sensor, PIR sensor, Timer dimming, Daylight sensor

FAQ

What is integrated solar street light?

Integrated solar street lights are a type of street lighting that uses solar power to provide energy to the light. They consist of a solar panel, a battery, and a light all integrated into one unit.

What is the difference between integrated and semi integrated solar street lights?

The key difference between integrated and semi-integrated solar street lights lies in how the components (solar panel, battery, controller, and light fixture) are assembled. Integrated lights have all components housed within a single unit, while semi-integrated lights have the solar panel separated from the light fixture and battery.
