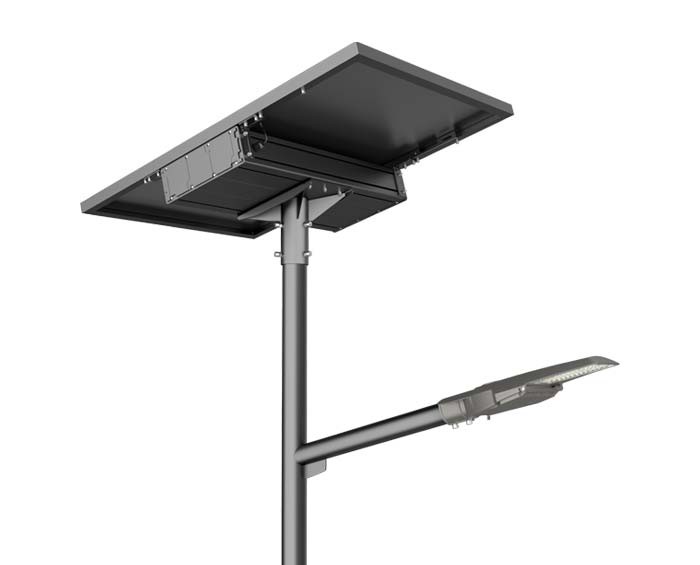

Series PV6 All in Two Solar Street Light

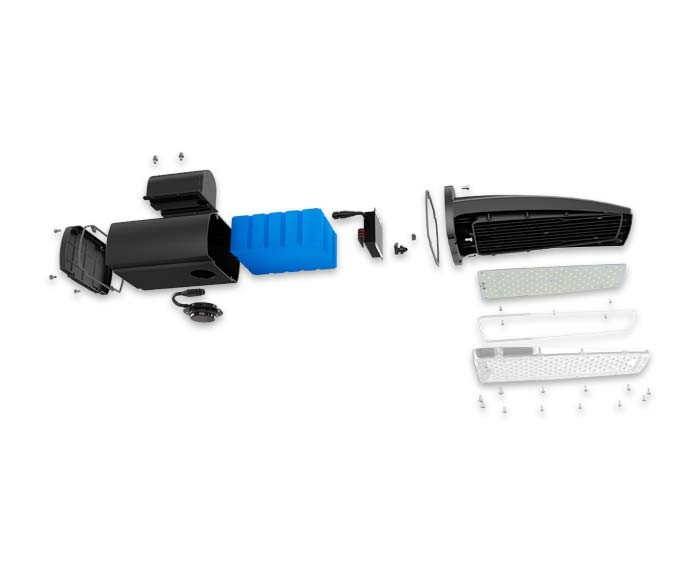

The PV6 series all in two solar street light adopts the latest semi-integrated design. Its detachable monocrystalline silicon solar panel can track sunlight to the greatest extent. The die-cast aluminum housing integrates lithium iron phosphate batteries and MPPT controllers. The solar panel and die-cast aluminum LED light are connected by cables. The separate solar panel design ensures a larger solar panel capacity, thereby achieving greater LED output power. The series pv6 all in two solar street light provides 6300-25200 lumens of professional-grade lighting in accordance with EN 13201 standards. The all in two design makes it easier to install without digging battery storage holes underground, which makes it to be an ideal choice for providing high-quality lighting in parks, parking lots, rural roads and other places.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Light efficiency up to 210lm/w

2. All in two design for flexible mounting

3. MPPT intelligent controller with up to 96% charging efficiency

4. Lithium-ion battery with a long lifetime

5. Customized solar street lighting solutions are available

6. 2.4G wireless communication which can realizes remote control

7. Smart Control: Motion/PIR sensor, or Timer dimming as per client’s request

Specifications

Series No	Series PV6
Power	30W, 40W, 50W, 60W, 70W, 80W
Efficacy	210lm/W
Input Voltage	DC 12/24V
Battery Spec	307WH-768WH
Solar Panel Spec	Monocrystalline silicon 60W/80W/100W/120W/150W/160W
IP Rating	IP66
IK Rating	IK10
Light Distribution	Type II
Mounting Option	Side Entry
Warranty	3 Years
Certification	CE, IEC, ROHS, LM79, IP66, IK10, LM80, TM-21, IEC62471
Control	Motion sensor, PIR sensor, Timer dimming, Daylight sensor

FAQ

What is all in two solar street light?

An all-in-two solar street light is a type of solar-powered lighting system where the solar panel is separated from the rest of the light fixture, which integrates the LED lamp, battery, and controller. This design combines the benefits of both traditional split-type and all-in-one solar streetlights, offering easier installation than the former and more flexibility in panel placement than the latter.

Can solar street lights be used at night?

Most solar panels automatically turn on and off by sensing outdoor light. Solar street lights are designed to operate throughout the night. Even if there are no sunlight for several days, many solar street lights can continue to illuminate for more than one night.

What are the disadvantages of solar street lights?

Compared to traditional street lights, solar street lights require a higher initial investment. Due to the relatively high equipment cost, there is also a higher risk of theft. Snow or dust, combined with moisture, can accumulate on horizontal photovoltaic panels, reducing or even stopping power generation.
