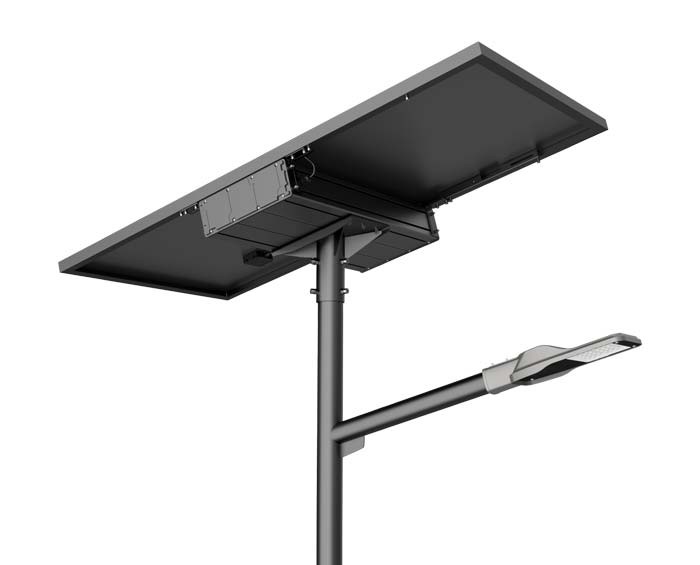

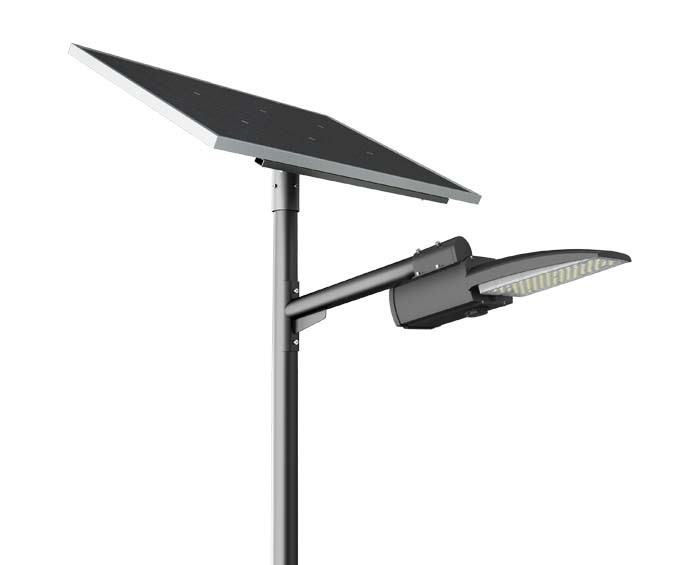

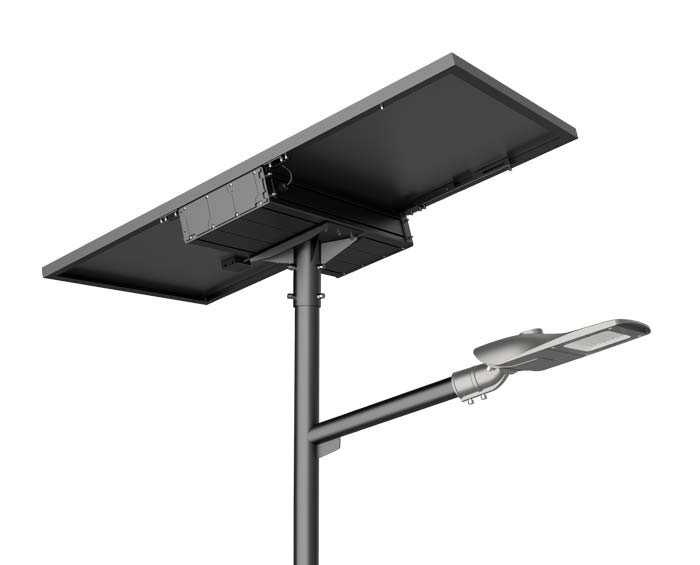

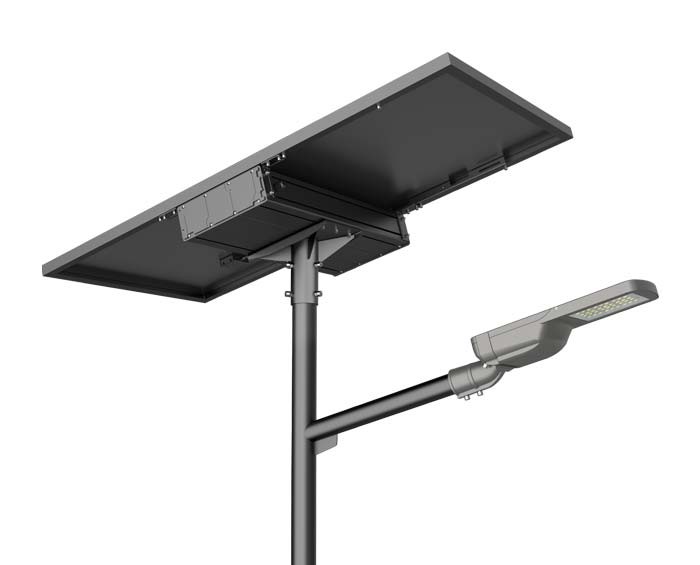

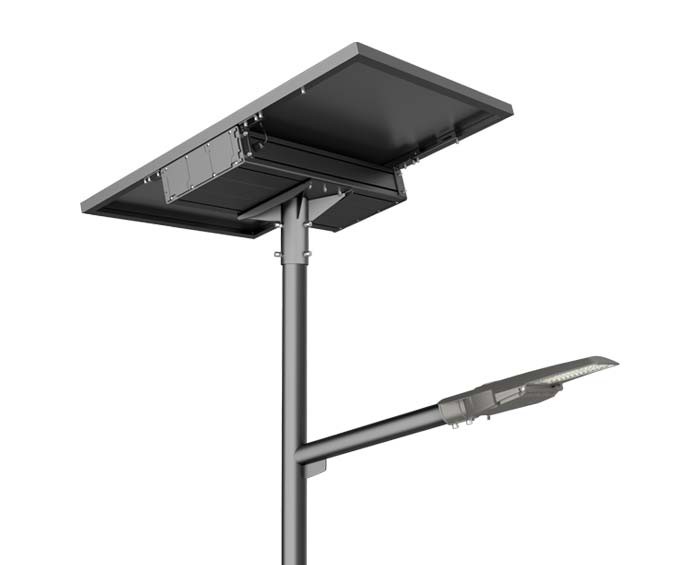

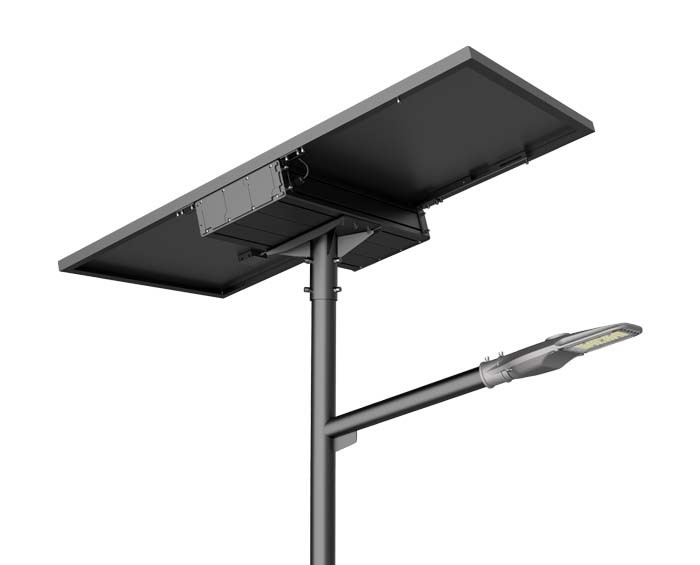

Series PV7 Semi Integrated Solar Street Light

The PV7 series of semi integrated solar street lights have become an innovative and sustainable solution for public space lighting. "Semi-integrated" means that the series adopts a two-in-one modular design, integrating high-efficiency monocrystalline solar panels (conversion rate 23%), lithium iron phosphate (LiFePO4) batteries and MPPT smart controllers (charging efficiency 96%) into one, while the LED lamp heads can be replaced separately to meet the personalized needs of customers. The system connects each part through cables to achieve fast assembly and ensure its waterproof performance. The product can use microwave/infrared sensors and timer dimming to achieve intelligent dimming to reduce energy consumption and extend the service life of the lamp. Semi integrated solar street lights are easy to install, even in places without power, and have low maintenance costs.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Watts: 40-120W

2. Light Efficiency up to 180lm/w

3. All in two design for quick and flexible installation

4. MPPT intelligent controller with up to 96% charging efficiency

5. Lithium-ion battery with 8 years expected lifetime

6. Customized SSL solutions are available

7. Support remote setting the parameters of controller

8. CE, ROHS, IP66, MSDS certified

9. Smart Control: Motion/PIR sensor, or Timer dimming as per client’s request

Specifications

Series No	Series PV7
Power	40W, 60W, 80W, 90W, 100W, 120W
Efficacy	155-180lm/W
Input Voltage	DC 12/24V
Battery Spec	1228-2304WH
Solar Panel Spec	Monocrystalline silicon 160W/180W/200W/240W
IP Rating	IP66
IK Rating	IK10
Light Distribution	Type II
Mounting Option	Side Entry
Warranty	3 Years
Certification	CE, IEC, ROHS, LM79, IP66, IK10, LM80, TM-21, IEC62471
Control	Motion sensor, PIR sensor, Timer dimming, Daylight sensor

FAQ

What is the difference between integrated and Semi Integrated Solar Street Light?

Integrated: All components are integrated into a single unit. Semi-integrated: The solar panel is separate, while the light fixture, battery, and controller are all-in-one.

Can solar street lights operate at night?

Most solar panels automatically turn on and off by sensing outdoor light. Solar street lights are designed to operate throughout the night. Even if there are no sunlight for several days, many street lights can continue to illuminate for more than a night.
