What Should We Do If The Solar Street Light Not Work?

Feb. 07, 2019

Solar Street Lights provide great convenience for the general public to travel, and are deeply loved by everyone. However, due to the fact that it is an electronic product, it will malfunction after a long period of time, resulting in the solar street lamp not working properly. How to quickly troubleshoot and propose solutions, this is very important. Today, as a senior solar street lamp manufacturer, ZGSM will tell you the reasons and treatment of solar street lights.


1. Solar Street Light Controller Is Wrong

Please check whether the solar street light controller is connected according to the installation instructions of the controller. When the solar street light is on, it will not light up. The time for lighting is not enough. It does not light or keep lit during the day. Solution: Reconnect to the controller. If the solar street light controller does not have any indicator lights, then the manual controller is faulty. Solution: Re-purchase the applicable controller.


2. The Battery Is Connected To The Positive And Negative Poles, Poor Contact, Expiration Of The Service Life, Battery Damage, ETC., So That The Battery Can Not Work Normally, The Voltage Is Too Low

Please confirm whether the positive and negative poles of the battery are connected in reverse and test whether the battery is broken. Use your own power supply to charge the battery. After the 12V battery is fully charged, the test voltage should be around 13.8V. Then connect the battery directly to the load, test the voltage with a multimeter, and see if the voltage changes. If the voltage decreases slowly, it means The battery is normal. If the voltage is reduced quickly in a short time (a few minutes), the battery is broken. The solar street light system can't work normally, the LED light is not bright, the lighting time is not enough, the brightness is not enough, and it does not light when it is bright. Solution: Reconnect the battery, replace the battery, replace the battery terminals, repair the battery, or replace the battery directly.


What Should We Do If The Solar Street Light Is Not Lit?cid=314


3. Line Aging Or Line Disconnection

The All In One Solar Street Light system does not work properly, and the solar controller LED does not light or flash. Solution: Reconnect the wires

Four: Parts that cause damage to the solar street light system (lamps, solar panels)

The solar street light system does not work properly. Hardware repair or replacement.


Video of Solar Street Light




Specification


ModelLD25KSLD35KSLD55KSLD60KMLD90KM
Power25W35W55W60W90W
Lumen3125-3625LM4375-5075LM8400-9900LM11200-13200LM14000-16500LM
Warranty3 YEARS3 YEARS3 YEARS3 YEARS3 YEARS
PanelsMono 80w x1Mono 100w x1Mono 100wx2Mono 100wx2Mono 150wx2
Battery120AH x 1150AH x 1150AH x 2150AH x 2200AH x 2
Controller10A/12v10A/12v10A/24v10A/24v15A/24v
Pole height3-5m4-6m6-8m6-8m8-12m
Pole distance8~12m9~14m18-25m18-25m24-36m
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverTempered Glass
Pole Fitter Diameter60mm ( 50mm optional)
ControlDaylight sensor, Timer
CertificationCE, ROHS, LM80


Download


Data Sheet_SolarStreetLight.pdf

Installation Manual_StreetLight_K.pdf


Related Products


What Should We Do If The Solar Street Light Not Work?cid=314What Should We Do If The Solar Street Light Not Work?cid=314What Should We Do If The Solar Street Light Not Work?cid=314

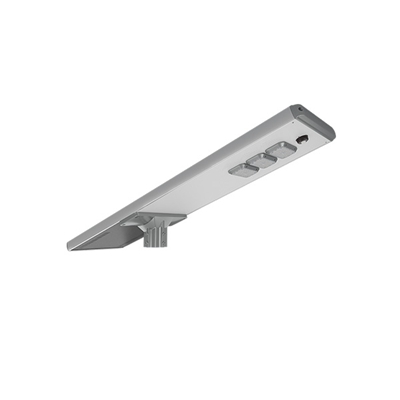

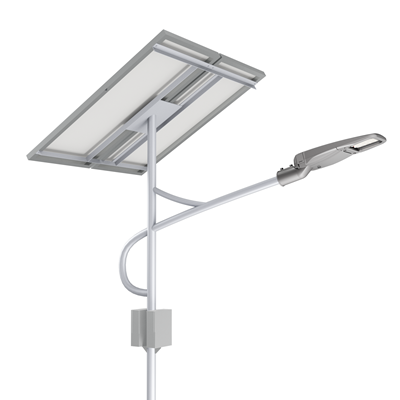

28-57w China Solar Street Light SupplierFactory Price 30-120w LED Solar Street LightIP66 Waterproof 25-120w Solar Powered Street Light
What Should We Do If The Solar Street Light Not Work?cid=314What Should We Do If The Solar Street Light Not Work?cid=314What Should We Do If The Solar Street Light Not Work?cid=314

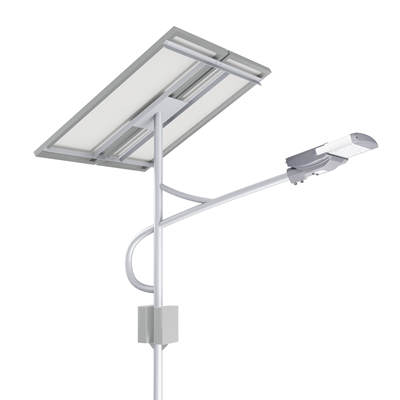

45AH Outdoor IP65 60w Solar Powered Street Lights40AH 50w Integrated Solar Street LightLithium Battery 15W Solar Street Light


Related Projects


What Should We Do If The Solar Street Light Not Work?cid=314What Should We Do If The Solar Street Light Not Work?cid=314What Should We Do If The Solar Street Light Not Work?cid=314

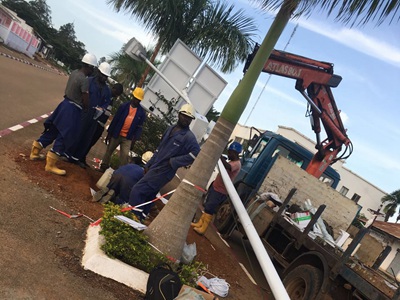

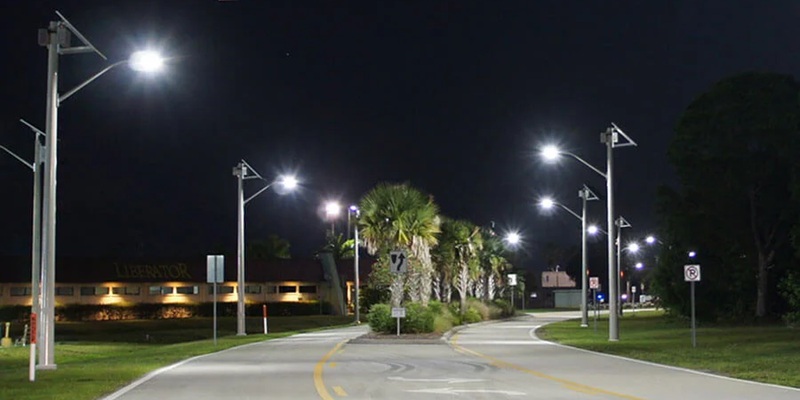

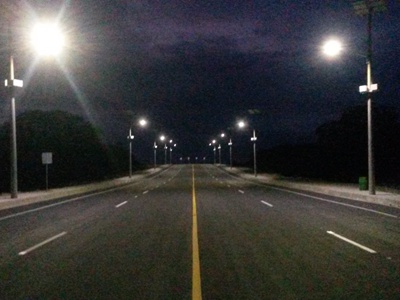

Solar Street Light Project In MexicoSolar Street Light Project In FranceSolar Street Light Project In Ecuador
What Should We Do If The Solar Street Light Not Work?cid=314What Should We Do If The Solar Street Light Not Work?cid=314What Should We Do If The Solar Street Light Not Work?cid=314

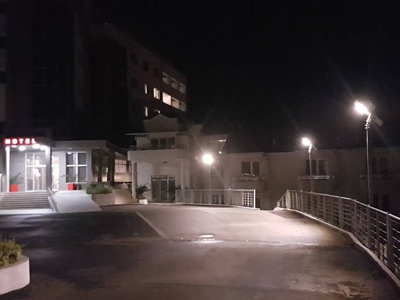

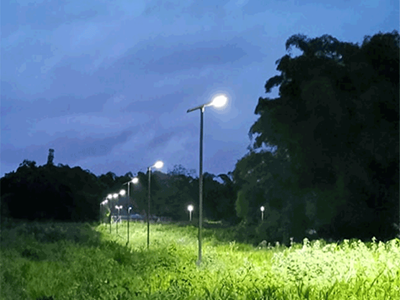

Integrated Solar Street Light Project In ThailandSolar Street Light Project In CameroonSolar Street Light Project In Serbia


Related Blogs


What Should We Do If The Solar Street Light Not Work?cid=314What Should We Do If The Solar Street Light Not Work?cid=314What Should We Do If The Solar Street Light Not Work?cid=314
6 Things Must Know about Solar Street LightHow do Solar Street Lamps Work on Rainy Days?
Solar Street Light Installation Method
What Should We Do If The Solar Street Light Not Work?cid=314What Should We Do If The Solar Street Light Not Work?cid=314What Should We Do If The Solar Street Light Not Work?cid=314
Things About Solar Street Light InstallationWhat Should I Notice When Wiring Solar Street Lights?
The Use Environment of Solar Street Lights


People Also Ask


  1.  What information you should provide us to better customize solar street LED lights?

    - What is the geographical location your solar LED street lighting system will be installed?

    - How many hours per night the LED street light works?

    - How many days to backup in case of continuous rainy days?

    - Do you need dimming the LED street light (during the off-peak hours)?

    - Any other requirements?


  2. What is integrated all in one solar street light?

    The term "integrated solar street light" refers to a new type of solar led street light that combines solar panels, batteries, controllers, and LED lights into a single lamp body.


  3. What are the advantages of Solar Street Light?

    - Solar street lights have good stability and long working life, no need to maintain;

    - High Efficacy with great performance;

    - No need to connect to city electric supply, not only more energy-saving but also could be installed to the places without electric supply;

    - Easy to install and very safe;

    - Could be widely applied to city streets, residential areas, factories, tourist sites, and parking lots.
