Economical LED street light
Series Kmini2 LED Street Light
Model：
ZGSM-LD90Kmini2
Application：
Street | Road | Highway | Parking lot | Bridge | Path
● Wide power range: 60W~130W.
● Smart design, low transportation costs.
● Special circuit design, single LED's damage won't affect others' normal work.

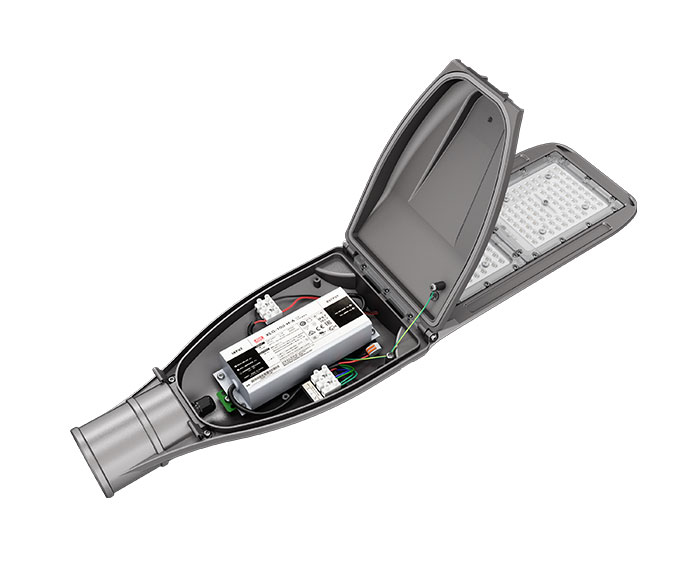

● Tool-less open for easy installation, replacement and maintenance.
● High Lumen output up to 160lm/ w with high quality LED chips.
● Multiple lighting control options are available, e.g.1-10V, photocell, motion sensor.
● Designed to last at least 100,000 hours at L70.
| Specifications | |
| Model | ZGSM-LD90Kmini2 |
| LED Brand | LUMILEDS® LUXEON 3030/ 5050 |
| Driver Brand | Inventronics |
| Norminal Wattage | 90W |
| LED Chip Quantity | 3030: 112pcs 5050: 44pcs |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 3030: 140 lm /w 5050: 153 lm /w |
| Lamp Rated Lumen output | 3030: 12600 lm 5050: 13770 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70(80 optional) |
| Color Temperature | 3000K or 4000K or 5000K or 5700K |
| Photometric Type | 3030: Type II Medium 5050: Type II Medium BLS |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body and Shell Materials | Die-cast aluminum; PC Lens |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK10 |
| Protection | Class I |
| SPD | 10KV (20KV optional) |
| Certification | CE, ENEC,CB ROHS,LM80,LM79,IP66 IK10,ISTMT |
| Dimming Options | 1-10V |
| Control Options | Photocell or Smart control |
| Color Options | Deep grey |
| Warranty | 5 years |
| Packing Details | |
| Fixture Dimension | 717X178X99mm |
| Fixture Weight | 3.62 kg |
| Packing Dimension | 735X195X120mm |
| Packing Weight | 4.20 kg |
