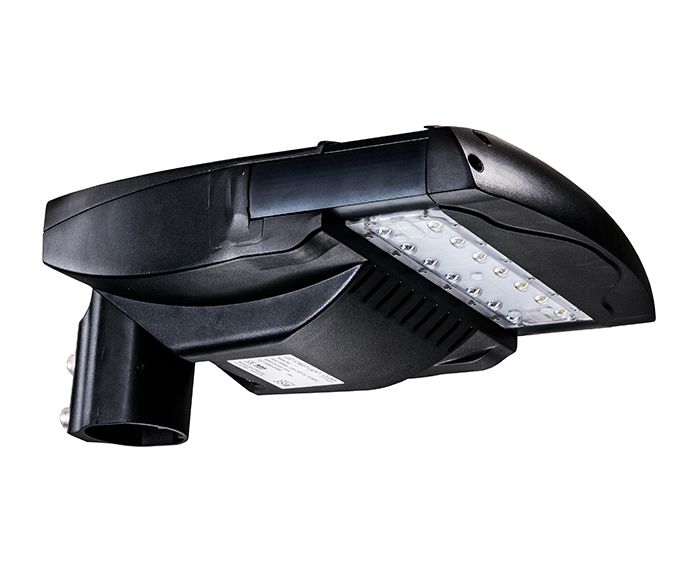

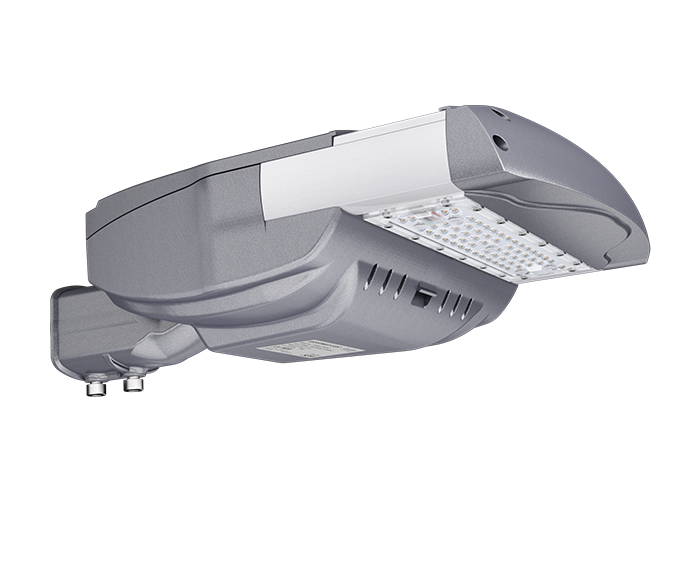

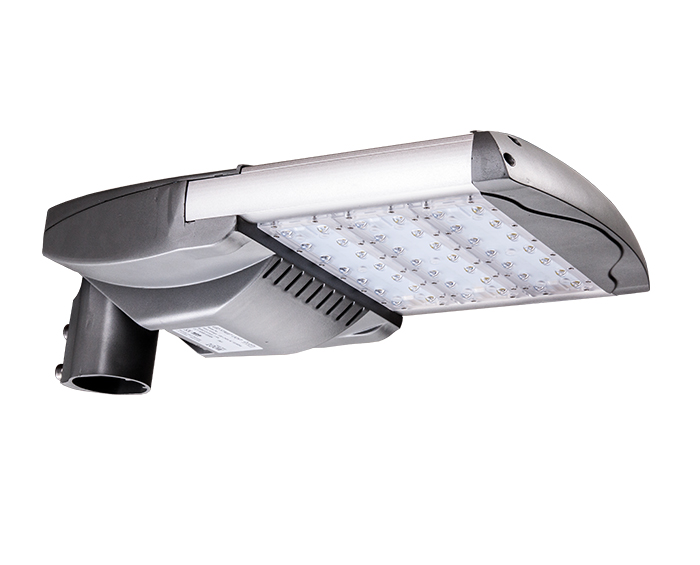

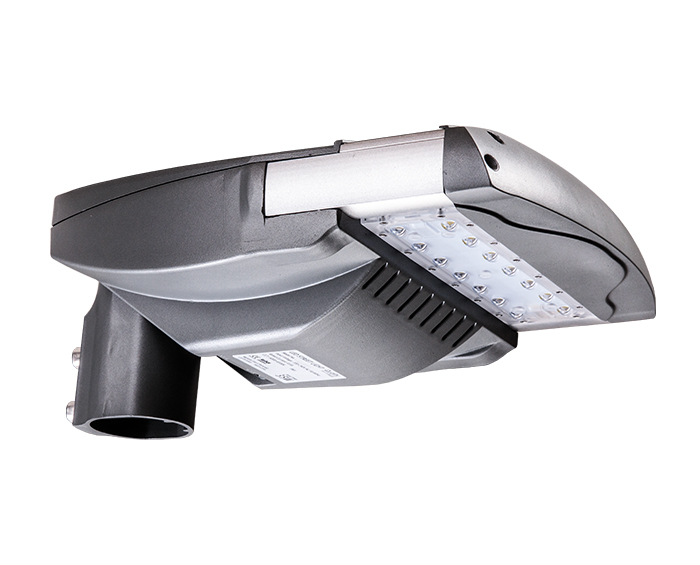

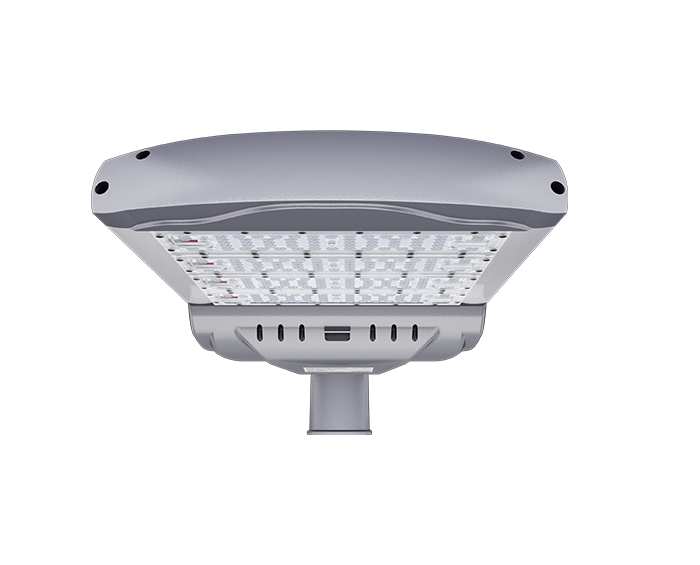

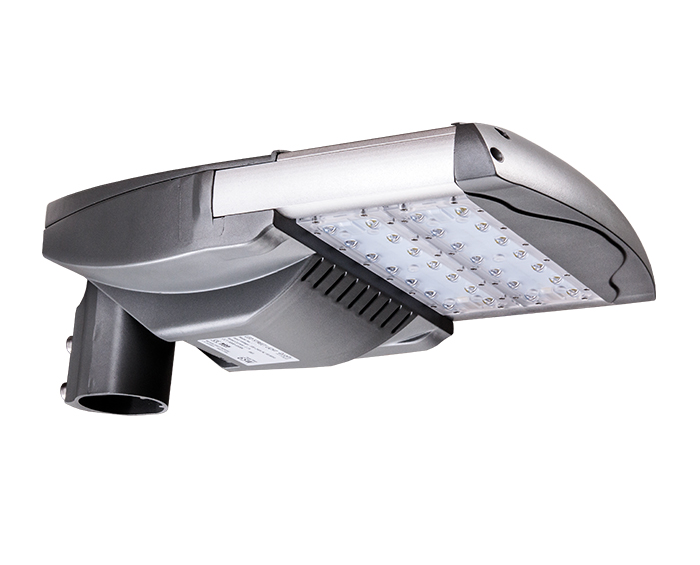

Modular design 40w high lumen led car park lighting

Series H4 LED Parking Lot Light

Model:

ZGSM-LD40H4

Application:

Street | Road | Highway | Parking lot | Bridge | Path


Share:
PRODUCT DESCRIPTION

Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

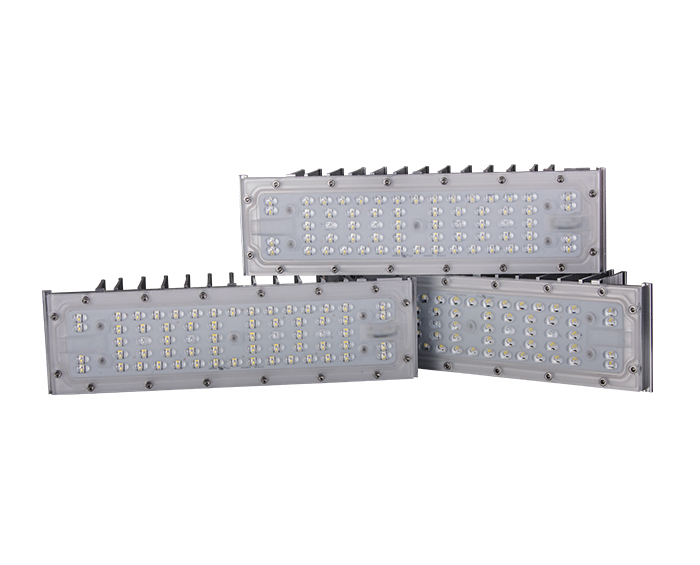

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of driver box of the lamp.

7. High Lumen output up to 165lm/ w with high quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE,ROHS,GS,CB,LM80,FCC,IP66,IK10

14. 7 years warranty


Specifications

Specifications
ModelZGSM-LD40H4
LED BrandLumileds 3030/5050
Driver BrandMeanwell or Inventronics
Norminal Wattage40W
LED Module Quantity1 module
Input Voltage100-240/277VAC/DC12/24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-165 lm/w
Lamp Rated Lumen output5600-6600 lm (Lumen tolerance +/- 5%)
Color Rendering Index70( 80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Optic (IESNA)Type I Medium;Type II Medium;Type III Medium,TypeV,Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE,ROHS,ENEC,CB,LM80,LM79,FCC,IP66,IK10
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years



Packing Details

Packing Details
Fixture Dimension431 x316 x136 mm
Fixture Weight5.3 kg /11.7 lbs
Packing Dimension480 x370 x200 mm
Packing Weight6.3 kg /13.9 lbs
