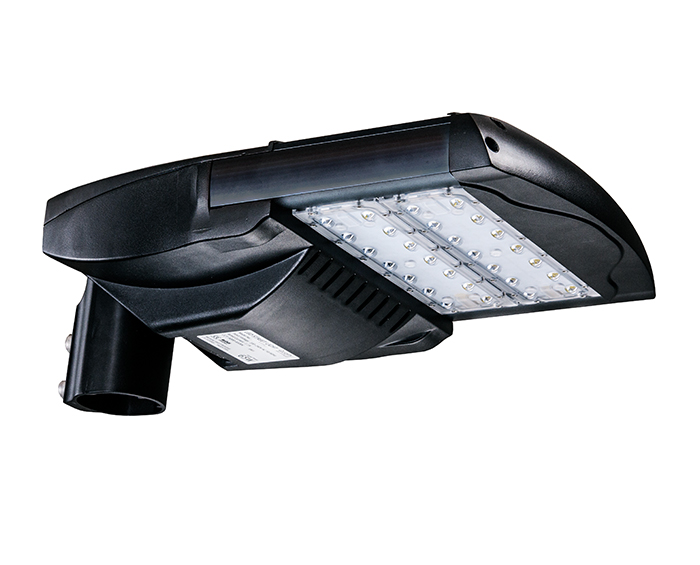

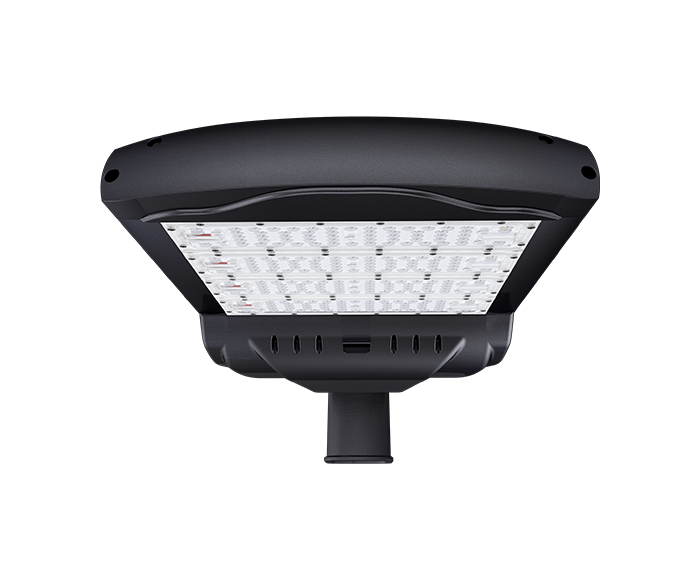

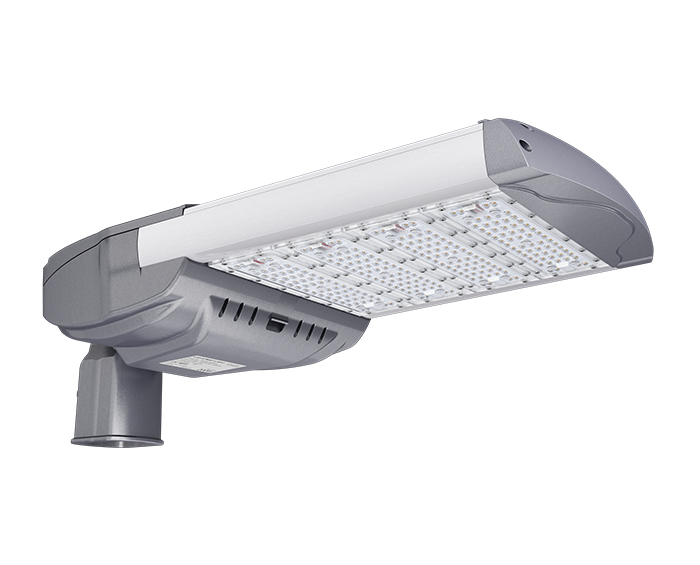

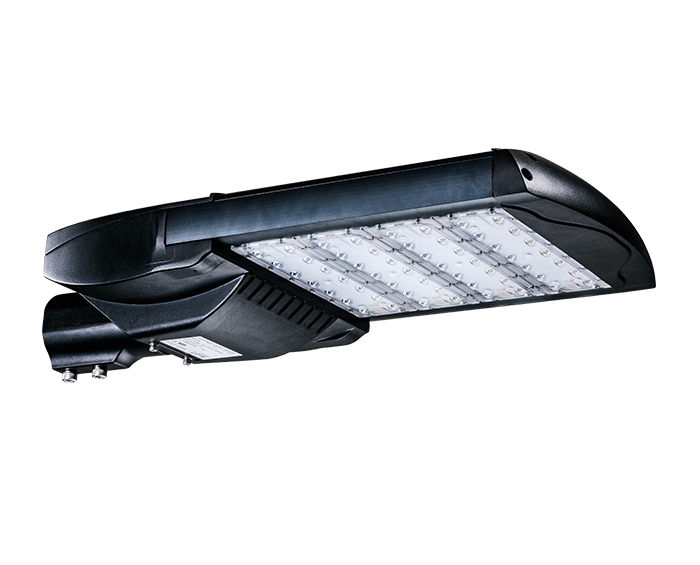

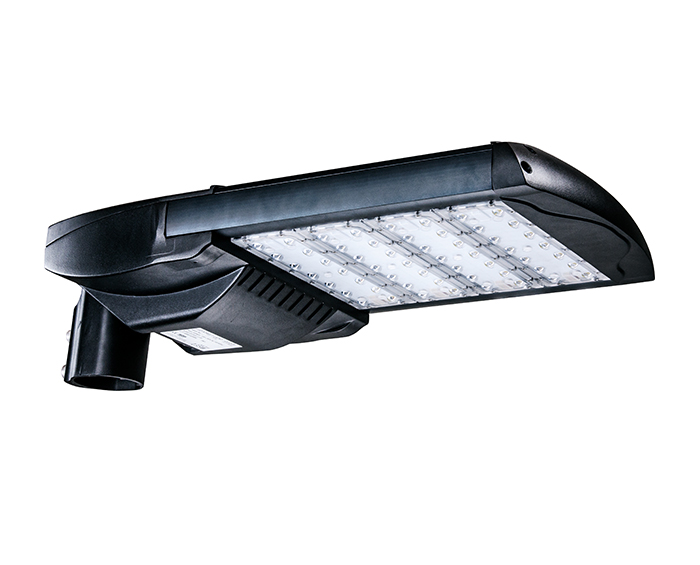

UL and DLC listed 135w Modular Design Street Light Fixtures

UL and DLC listed 135w Modular Design Street Light Fixtures are square fixtures and are available in a variety of sizes used for street lights. They are stylish and beautifully designed, and the number of modules can be determined according to the wattage you need, which is convenient for the maintenance of luminaires.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED damage won't affect others' normal work.

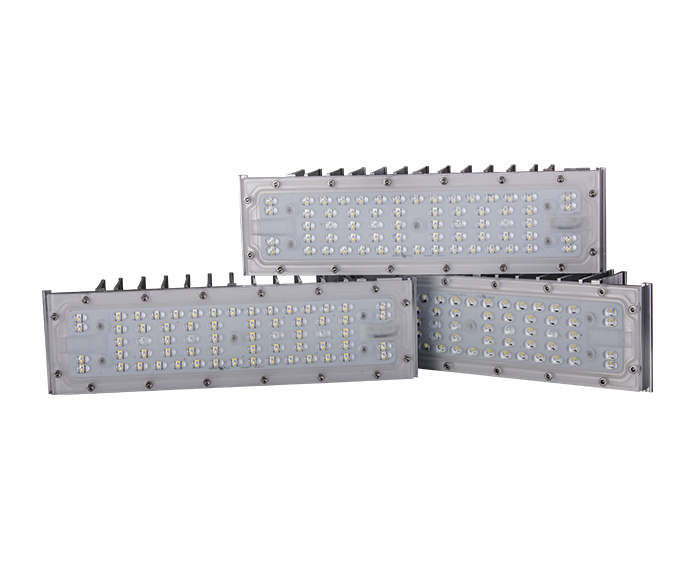

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE, ROHS, GS, CB, LM80, FCC, IP66, IK10

14. 7 years warranty


Specifications

ModelZGSM-LD135H
LED BrandLumileds Luxeon TX
Driver BrandMeanwell or Inventronics
Normal Wattage135W
LED Module Quantity4 modules
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110lm/w
Lamp Rated Lumen output14850 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ROHS, GS, CB, UL, cUL, DLC, LM-79, LM80,SAA
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years



FAQ

1. How do photocells work on street lights?

Automatic street light control is used to control street lights (turned on and off according to the lights). Here we use LDR (photoresistor) and LEDs (light-emitting diodes) and Arduino.

When sunlight is below the visible area of our eyes, it automatically turns on the light. (e.g. in the evening after sunset). When sunlight falls on top of it (i.e. on the LDR), it automatically turns off the light, for example in the morning, by using a sensor called an LDR (photoresistor), which senses light like our eyes. Our street lights can be equipped with Photocell to achieve this effect.


2. What is a DLC list?

What is a DLC list? The term DLC stands for DesignLights Consortium and is related to energy efficiency. If a product is rated DLC listed, rated, or approved, it means that the solution has been created to operate at energy efficiency levels.


3. What voltage are LED street lights?

The most frequent operating voltage for streetlights was 120 volts (62 percent), followed by 240 volts (28 percent ). The majority of entities that own streetlights (82 percent) employ individual photocells to operate the streetlight's on/off function.


4. What does UL listing mean?

Underwriters' Lab

Underwriters Laboratories or the well-known UL testing and evaluation allow manufacturers to place certification marks on components and products. The most common are the "UL Listed" and "UL Recognized" marks.
