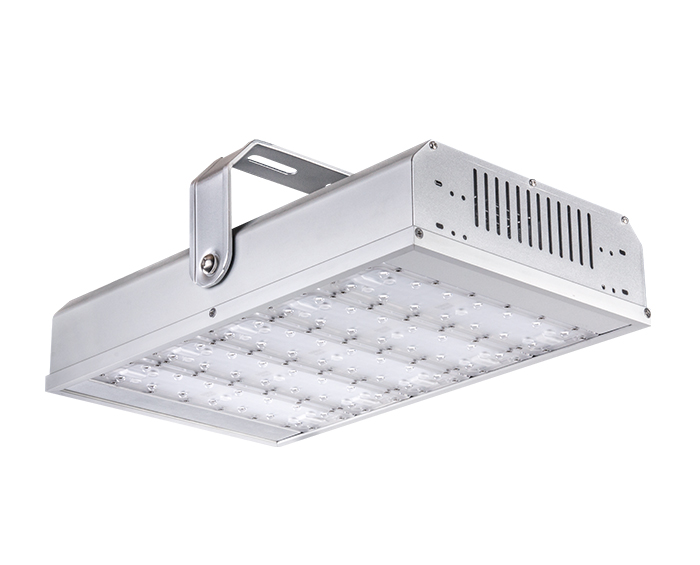

200w UL Certified Industrial Warehouse Lighting

ZGSM offers best-in-class Industrial Warehouse Lighting and other industrial lighting solutions. Save energy and costs for your company. This high bay light adopts a modular design, and the number of modules and power can be customized by customers. Motion sensor or Smart control is optional.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

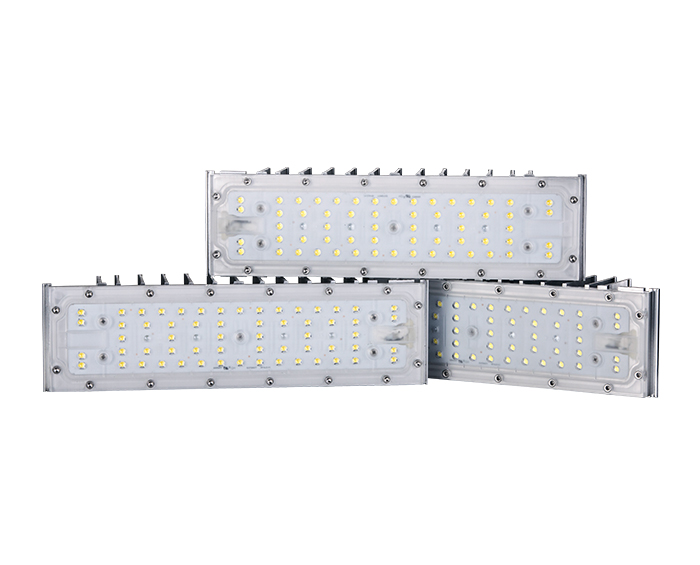

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-GCD200H
LED BrandLumileds LUXEON® TX
Driver BrandMeanwell HLG series
Normal Wattage200W
LED Module Quantity5 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110 lm/w
Lamp Rated Lumen output22000 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

How is the lighting of a warehouse calculated?

Use 100 watts of miner's lamps and separate them every 8-14 feet (8 for high brightness and 14 for plenty). For example, 6x3 mode is 18 lights for basic lighting or 7x3 (or 6x4/8x3 depending on cabling) for 21-24 lights for medium brightness levels. 32 of 8x4 will be very high brightness.


What kind of lighting equipment is used in the warehouse?

Warehouses typically use one of two types of lamps: linear fluorescent lamps or metal halide lamps. Although fluorescent lamps and metal halides are improved over incandescent bulbs, they still present disposal hazards, reduced lifespan, and lower lighting efficiency when directly compared to LEDs.


How many lux is needed in a warehouse?

Usually, in a warehouse, a light level of 100 lux is sufficient. However, it can be changed depending on the purpose and region. For example, a light level of 200 lux may be required to ensure that small products are recognized in the storage area. In cold storage, a light level of 300 lux is recommended.
