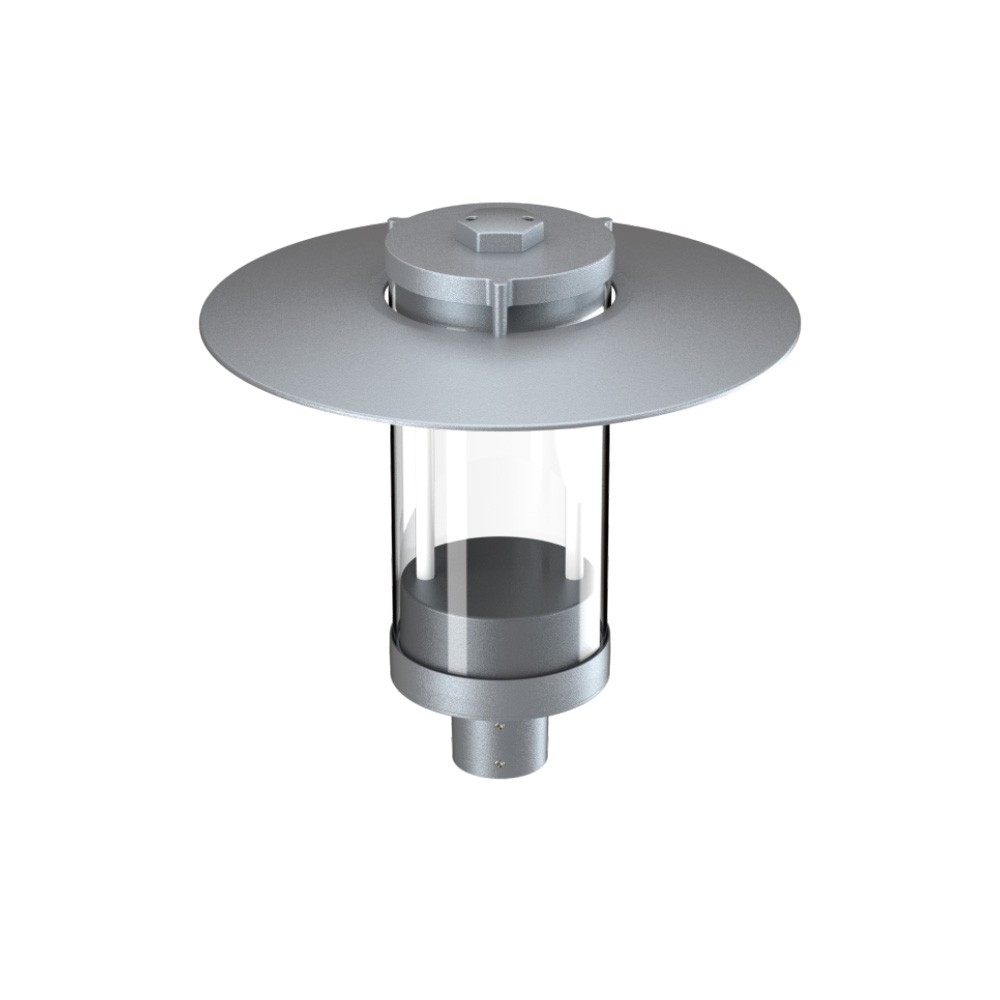

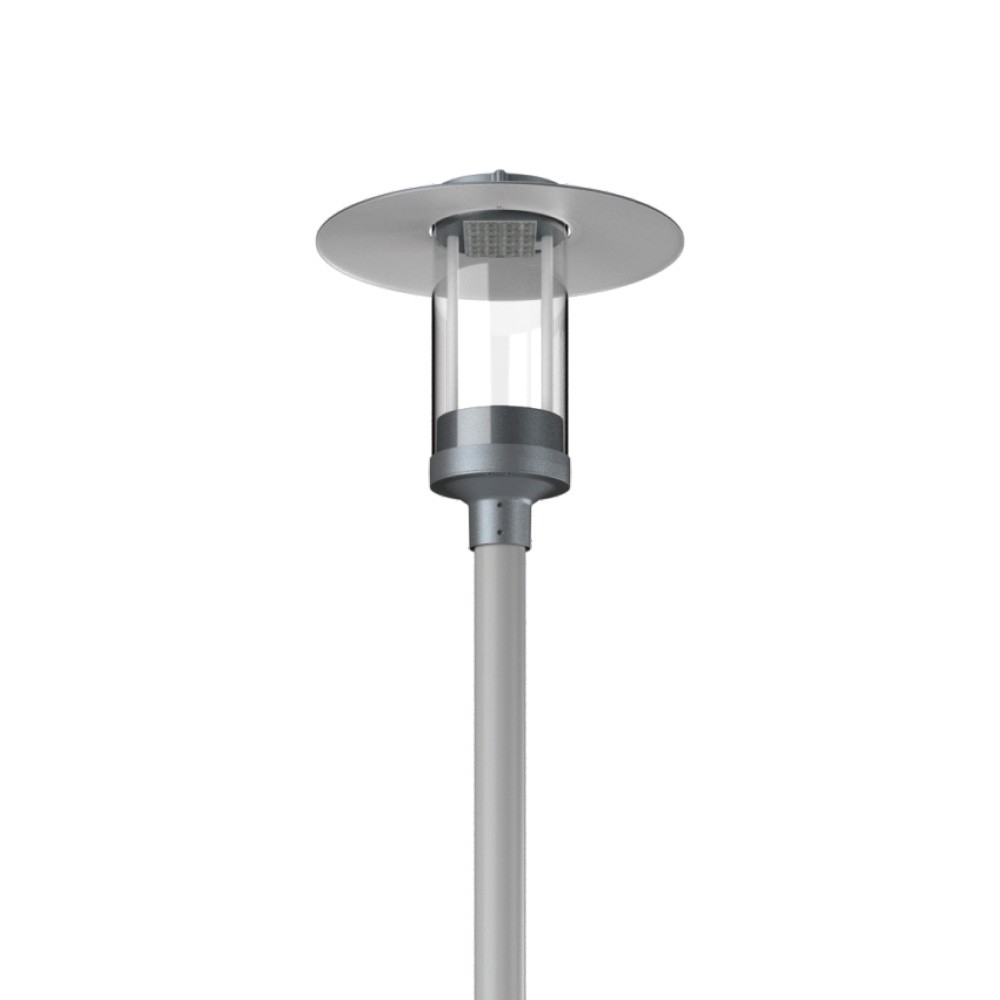

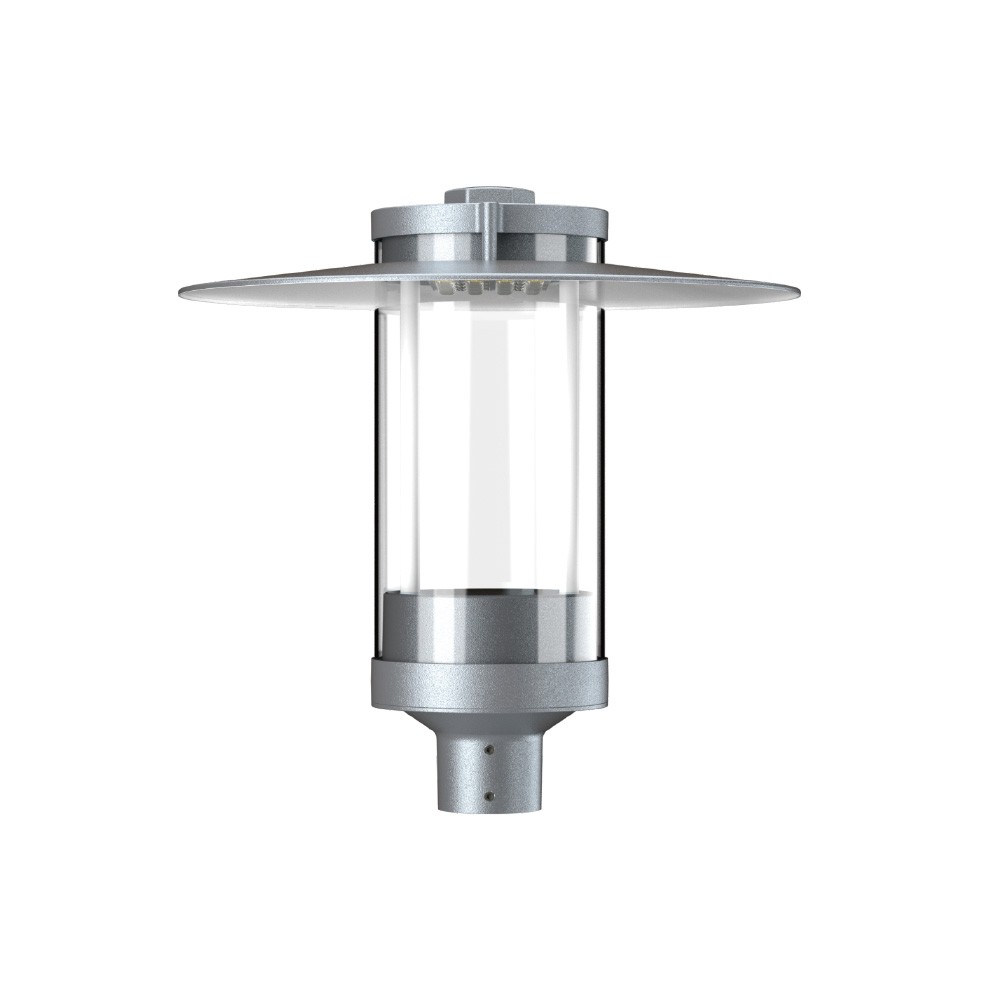

ZG-1022 LED Post Top Area Light

In order to meet the dimming requirements of different occasions and needs, we have equipped this LED column top lamp with a variety of dimming methods such as photocells, timed dimming and intelligent control. These flexible dimming options not only make the lighting effect more comfortable and pleasant, but also effectively save energy and achieve green lighting.

In addition, we also considered possible future upgrade needs and provided NEMA or Zhaga installation options for this lamp, which provides great convenience for future upgrades and maintenance.

To sum up, with its excellent performance, flexible application scenarios and forward-looking design, ZG-1022 column top lamp is undoubtedly your ideal choice to achieve efficient, economical and environmentally friendly lighting.

Wide power range: covering the power range from 40W to 60W, flexibly meeting the needs of different scenarios.High-efficiency performance: The lamp efficiency is as high as 150 lm/w, ensuring high efficiency and energy saving, and contributing to the environment.

Sturdy and durable material: It adopts a full die-cast aluminum casing (ADC12), which is sturdy and durable to ensure long-term use.

Optional safety levels: Two safety level options, Class I and Class II, are provided to meet the needs of different safety standards.

Excellent protective performance: reaching IP66&IK08 protection level, waterproof and dustproof, adaptable to various harsh environments.

Flexible light distribution design: Provides a variety of asymmetric or symmetric light distribution options to adapt to different lighting needs.

Easy maintenance: The driver and SPD are designed to be easily disassembled and replaced, reducing maintenance costs and improving convenience of use.

Intelligent dimming function: Supports default 1-10V dimming and scheduled dimming functions to achieve intelligent lighting control and create a comfortable environment.

Powerful surge protection: It has differential mode 6 kV and common mode 10 kV surge protection functions to ensure safe and stable operation of the lamps.

1. 1. What Is A LED Garden Light?

   As its name shows, the LED garden light is a kind of LED light designed for garden lighting or yard lighting. It usually not only has high efficacy and excellent lighting performance but is also designed with a beautiful appearance to meet the use environment of the garden.

   LED garden lights could be divided into common LED garden lights and solar LED garden lights. Common LED garden lights work under the power of the mains, while the solar-powered type work under the power transferred from sunshine by a solar panel.




2. 2. What does IP66 Mean?

   IP code is defined by the International Electrotechnical Commission (IEC) under the international standard IEC 60529 which classifies and provides a guideline to the degree of protection provided by mechanical casings and electrical enclosures against intrusion, dust, accidental contact, and water. It is published in the European Union by the European Committee for Electrotechnical Standardization (CENELEC) as EN 60529.

   IP66 means the enclosures of this products are able to protect against powerful water jets. Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction shall have no harmful effects. Test duration: at least 3 minutes. Water volume: 100 litres per minute.

   The LED lights with IP66, such as ZGSM Halo series LED street lights, could be applied to outdoor lightings without worrying about the rain.




3. 3. How can optics and controls help mitigate any negative impacts of public light?

   Controls for ZGSM lighting solutions, such as dusk-to-dawn sensors, can automatically dim or turn off the luminaires depending on the time of day, lowering both energy usage and any adverse environmental effects. Our solutions also include shields to reduce sidelight and uplight as well as, most crucially, "optics" to lessen glare regardless of how much blue light or what color temperature (e.g., 3,000K vs. 4,000K) they produce.
