280w Class II Modular Design LED Street Light Factory

ZGSM is a famous Led street light designer and factory in China. The main products of ZGSM are LED street light, LED flood light, LED canopy light, LED UFO light. We are committed to providing high-quality, high-performance LED products and solutions to all customers. As a factory, we produce more than 1000 LED lamps per day, and the daily aging test capacity is more than 1000 sets. And we also offer professional support for your project like lighting design, a full set of certificates customized design for your project.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE,ROHS,GS,CB,LM80,FCC,IP66,IK10

14. 7 years warranty

Specifications

Specifications
Model	ZGSM-LD280H2
LED Brand	Lumileds Luxeon TX
Driver Brand	Meanwell or Inventronics
Normal Wattage	280W
LED Module Quantity	7 modules
Input Voltage	100-240/277VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	>110lm/w
Lamp Rated Lumen output	30800 lm (Lumen tolerance +/- 5%)
Color Rendering Index	Ra>70
Color Temperature	3,000 K or 4,000 K or 5,000 K or 5,700K
Photometric Type	Type I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature	25°
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100000 hours -L70, @25 ºC (77 ºF)
Wind Index	Force 12
Body	Die-cast Aluminum Housing
Cover	PC lens
Pole Fitter Diameter	60mm ( 50mm optional)
Rating	IP66 IK10
Protection	Class I ( Class II optional)
SPD	10KV (20KV optional)
Certification	CE,ROHS,GS,CB,LM80,FCC,IP66,IK10
Dimming Options	1-10V or DALI or PWM or Timer
Control Options	Photocell or Motion sensor or Smart control
Color Options	Silver or Black
Warranty	7 years

Packing Details
Fixture Dimension	869 x316 x136 mm
Fixture Weight	10.8 kg /23.8 lbs
Packing Dimension	930 x370 x200 mm
Packing Weight	12.6 kg /27.8 lbs

FAQ

1. What's A Modular LED Street Light?

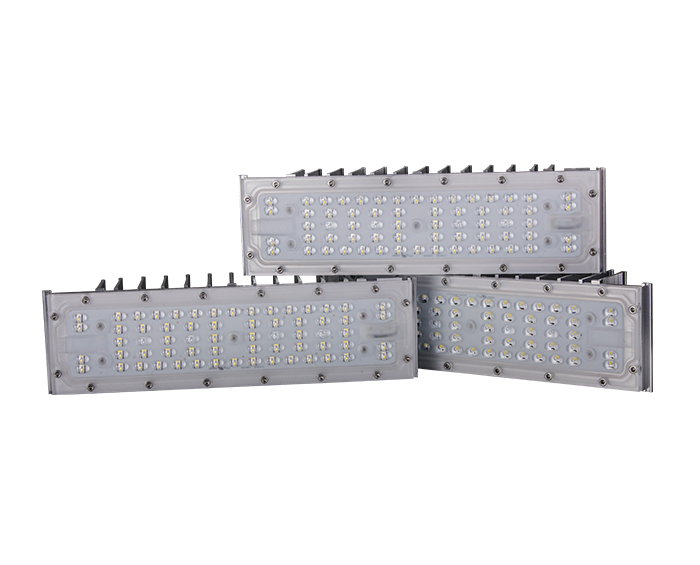

Modular LED street light refers to street light of LED modules which consist of LED chips, heatsink, and lens. An LED module is a structure that integrates LED light source, light distribution, heat dissipation, dustproof and waterproof grades. Years ago LED street lamp which is composed of one or several modules replaced traditional LED street lights. Compare to traditional LED street lamps, LED light sources of modular street lights are much easier to replace on-site once they are damaged. Previously the lamps can only be replaced as a whole or returned to the factory for maintenance, which results in waste of resources, time-consuming and laborious problems.

2. What is a motion sensor?

A motion sensor is a device that recognizes physical movement on a product or in the surrounding area. Real-time physical and/or kinetic movements can be detected and recorded by it.

Another name for a motion sensor is a motion detector.

The motion sensors in LED lighting area are usually used for detecting passing persons or cars. When there are no persons or cars, the LED lights could work under energy-saving mode, for example 30% power. If there are persons or cars coming and detected by motion sensor, the motion sensor would turn the LED lights to 100% power automatically.

3. What is a NEMA socket/connector?

NEMA means National Electrical Manufacturers Association in the USA. NEMA connectors are power plugs and receptacles used for AC mains electricity in North America and other countries that use the standards set by the US National Electrical Manufacturers Association. The voltage ratings for NEMA wire devices range from 125 to 600 volts and the current values range from 15 to 60 amperes (A) (V). For each combination of voltage, electric current carrying capacity, and grounding system, different permutations of contact blade widths, shapes, orientations, and dimensions result in non-interchangeable connections.
