IP66 Waterproof Design Outdoor LED Garden Light

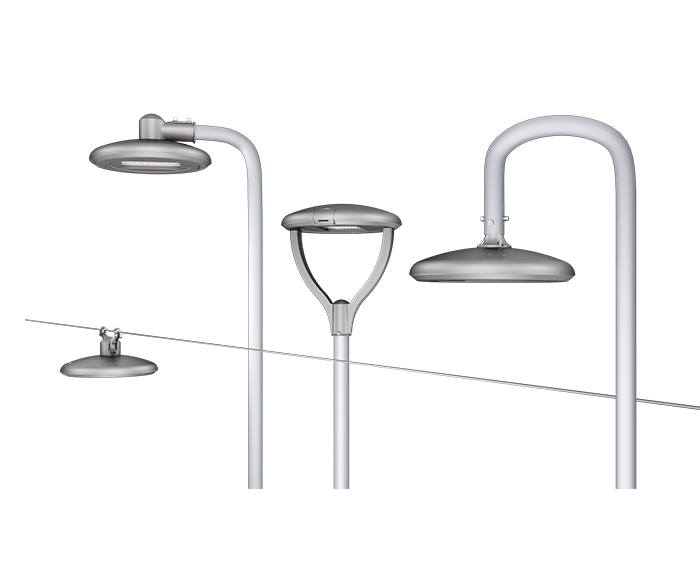

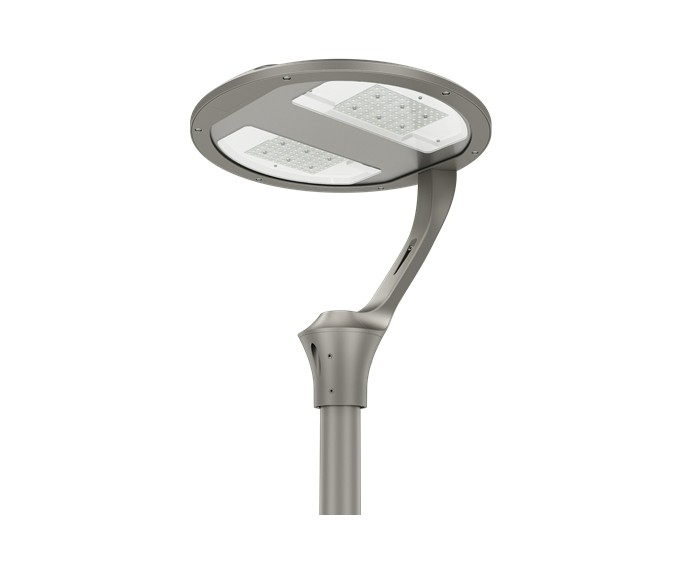

ZGSM new Halo series outdoor LED garden light is designed with an elegant round shell, which not only fits the beautiful environment of the garden, but also has a smooth surface without worrying about the accumulation of leaves, dust and bird droppings. With an IP66 waterproof enclosure, the Halo series can be safely used for outdoor garden lighting and park lighting without worrying about rain. Halo series garden LED light has 6 kinds of mounting types: single-arm post top, double-arm post top, side entry, wire suspension, pole pendant and high bay mounted ways, which are all easy to install and could meet the aesthetic needs of different people.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Power range 30W up to 150W

2. Super smooth body design

3. Full die-casting aluminum housing

4. Efficiency up to 170 lm/W

5. 10KV/20KV surge protection

6. Supports multiple installation modes

7. Class I and Class II are optional.

8. CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IP66, IK10 certified

9. Kinds of asymmetrical optical lens provide professional light distribution

10. Smart Control: 1-10V/ DALI dimming, NEMA, Zhaga, Photocell, Motion sensor, Zigbee /Lora control

Specifications

Model	ZGSM-ST20-XXYY( XX= 30~150W, YY=PT1,PT2,SE,WS,HB,PP)
LED Brand	LUMILEDS® LUXEON 3030 or 5050
Driver Brand	Meanwell / Inventronics
Normal Wattage	30W, 50W, 80W, 100W, 120W,150W

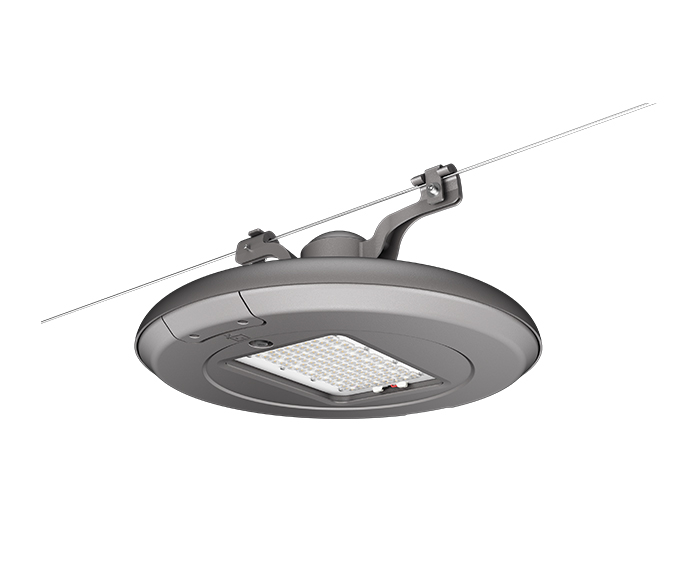

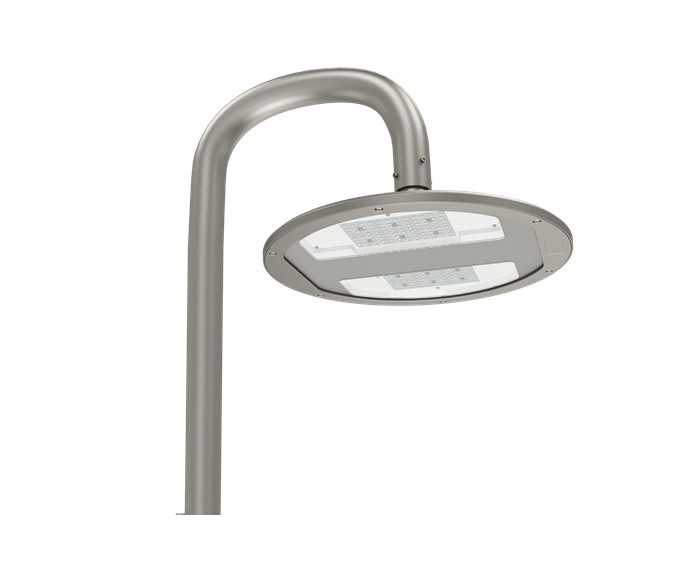

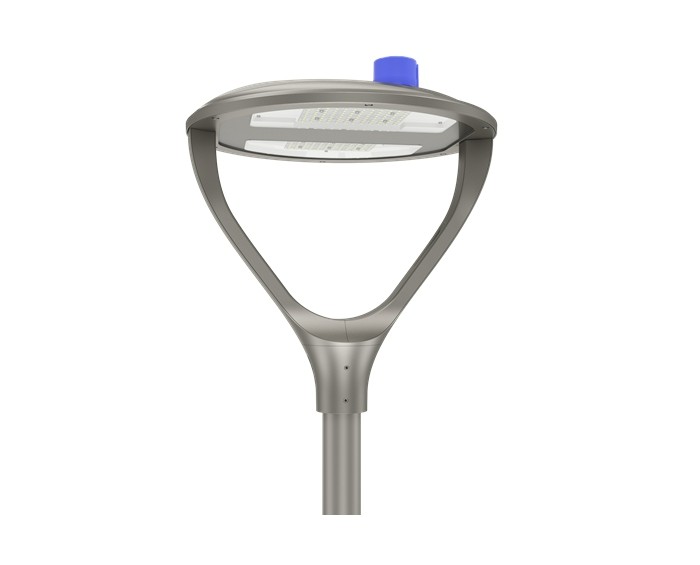

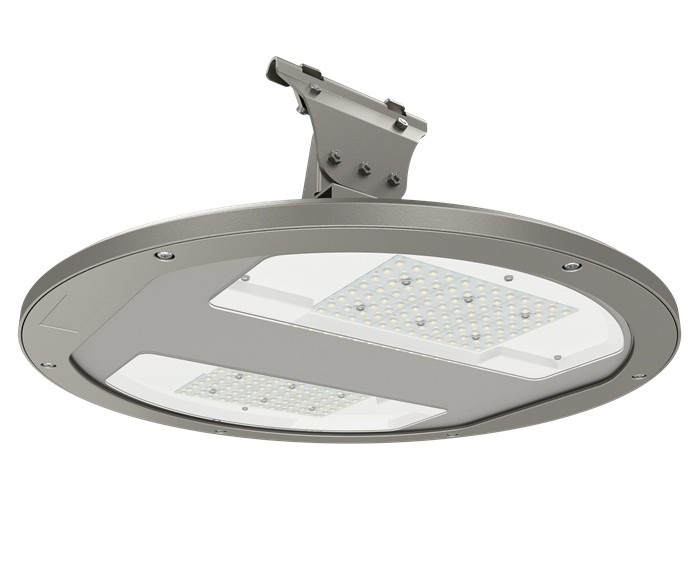

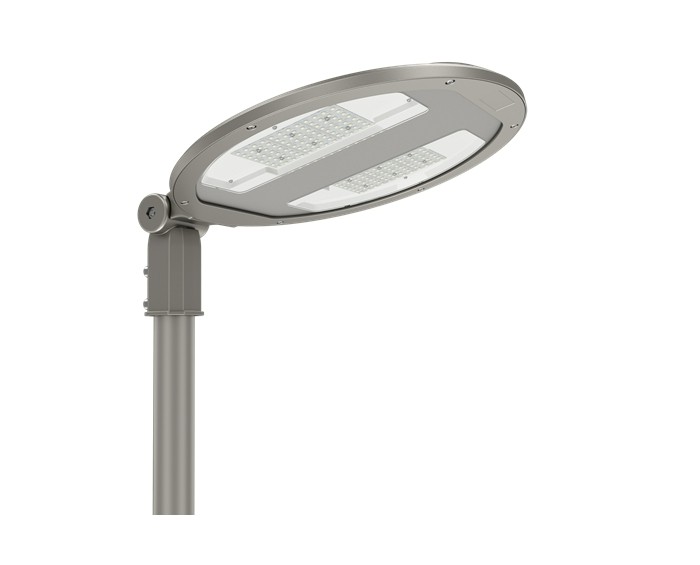

Mounting Way	Single Arm Post Top, Double Arm Post Top, Side Entry, Wire Suspension, High Bay, Pole Pendant
Input Voltage	100-240/277VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	145-170 lm/W
Standard Deviation of Color Matching	<5 SDCM
Color Rendering Index	70(80 optional)
Color Temperature	3000K or 4000K or 5000K or 5700K
Photometric Type	Type II Medium; Type III Medium.
Optimal Operating Temperature	25℃
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100,000 hours -L70, @25 ºC (77 ºF)
Wind Index	Force 12
Body and Shell Materials	Die-cast aluminum; Tempered Glass
Pole Fitter Diameter	60mm
Rating	IP66 & IK10
Protection	Class I ( Class II optional)
SPD	10KV (20KV optional)
Certification	CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IP66, IK10
Dimming Options	1-10V or DALI or PWM or Timer
Control Options	Photocell or Motion sensor or Smart control
Color Options	Gray (RAL9007) /Black (available on request)
Warranty	5 years

FAQ

1. What Is A LED Garden Light?
As its name shows, the LED garden light is a kind of LED light designed for garden lighting or yard lighting. It usually not only has high efficacy and excellent lighting performance but is also designed with a beautiful appearance to meet the use environment of the garden.
LED garden lights could be divided into common LED garden lights and solar LED garden lights. Common LED garden lights work under the power of the mains, while the solar-powered type work under the power transferred from sunshine by a solar panel.
2. What does IP66 Mean?
IP code is defined by the International Electrotechnical Commission (IEC) under the international standard IEC 60529 which classifies and provides a guideline to the degree of protection provided by mechanical casings and electrical enclosures against intrusion, dust, accidental contact, and water. It is published in the European Union by the European Committee for Electrotechnical Standardization (CENELEC) as EN 60529.
IP66 means the enclosures of this products are able to protect against powerful water jets. Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction shall have no harmful effects. Test duration: at least 3 minutes. Water volume: 100 litres per minute.
The LED lights with IP66, such as ZGSM Halo series LED street lights, could be applied to outdoor lightings without worrying about the rain.
3. How can optics and controls help mitigate any negative impacts of public light?
Controls for ZGSM lighting solutions, such as dusk-to-dawn sensors, can automatically dim or turn off the luminaires depending on the time of day, lowering both energy usage and any adverse environmental effects. Our solutions also include shields to reduce sidelight and uplight as well as, most crucially, "optics" to lessen glare regardless of how much blue light or what color temperature (e.g., 3,000K vs. 4,000K) they produce.
