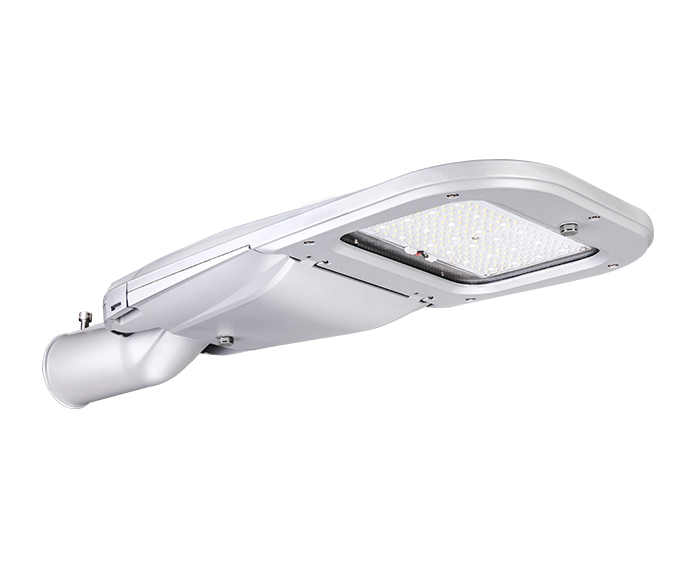

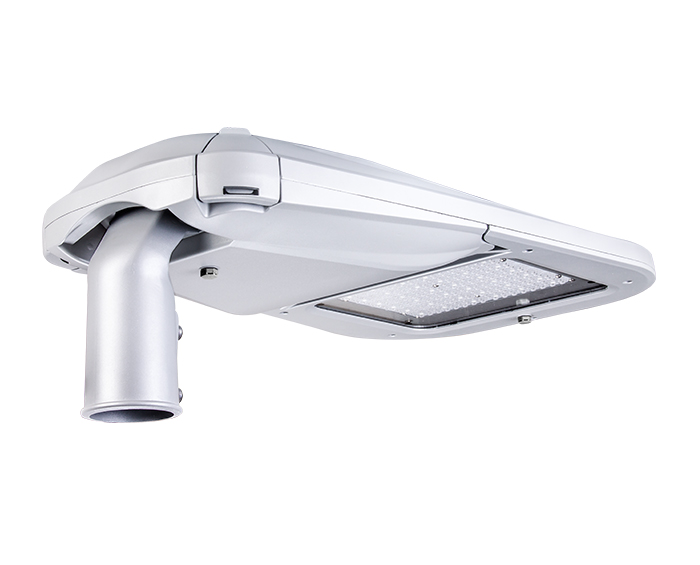

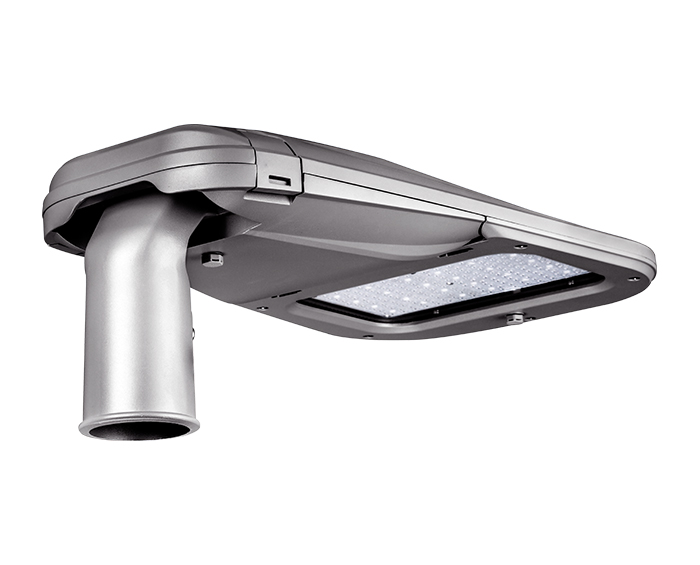

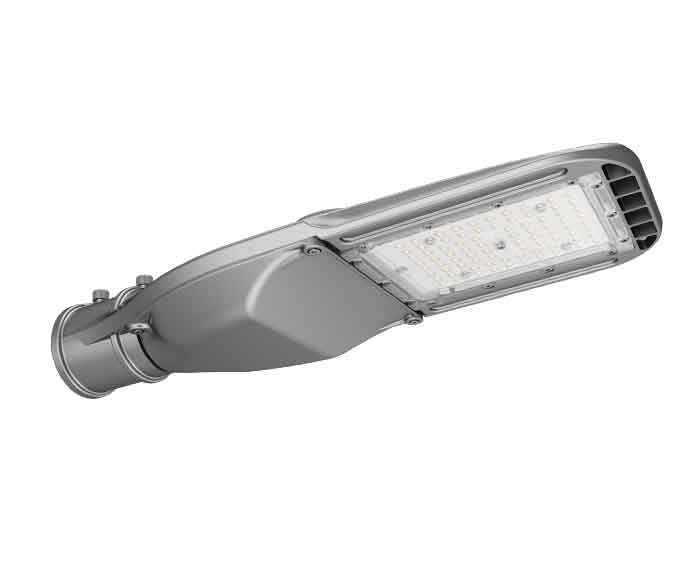

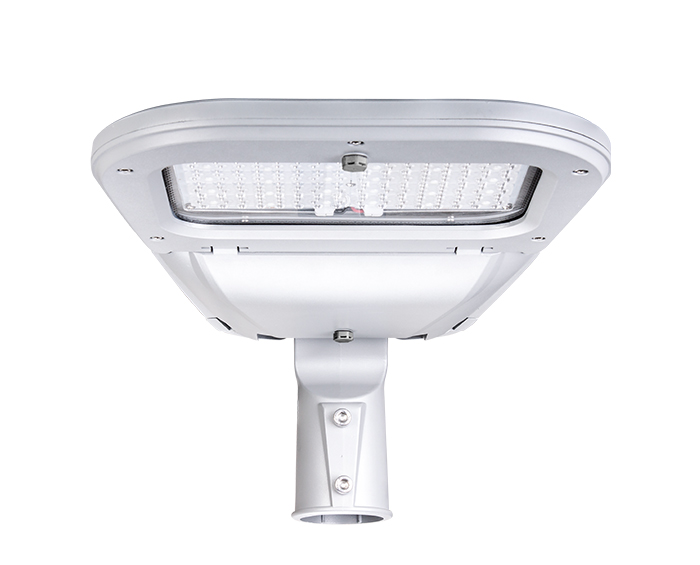

Tool-less Maintenance 120W LED Street Light

Tool-less 120w led street light has the buckle design, which allows the lamp to be opened without tools. It's safe and convenient to replace the LED driver and other components inside street light housing. Selectable smart controls are 1-10V dimming, DALI, daylight sensor, motion sensor, timer, Zigbee.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 25W~200W.

2. Special circuit design, single LED damage won't affect others' normal work.

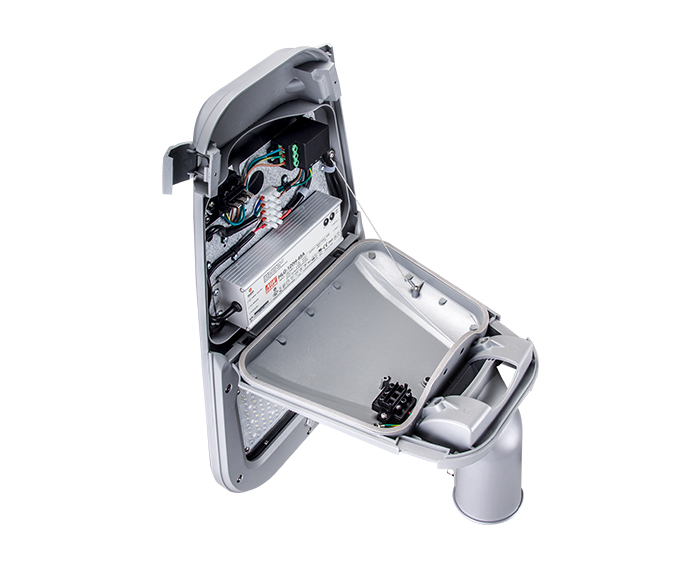

3. Tool-less open for easy installation, replacement, and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened.

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Level bubble makes it easy for the installer to adjust the position of the lamp.

7. High Lumen output up to 150lm/ w with high-quality LED chips.

8. Pass the 1000 hour salt spray test.

9. Vertical and horizontal installation are both available, adjustable by ±15° in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

14. 7 years limited warranty available.


Specifications

Specifications
ModelZGSM-LD120KM
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell / Inventronics
Normal Wattage120W
LED Chip Quantity3030: 192pcs 5050: 96pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-150 lm /w
Lamp Rated Lumen output15600-18000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; Tempered Glass
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey or Light grey
Warranty7 years



FAQ

1. Do LED lights save more power?

While once primarily used for indicators and traffic lights, white LEDs and general lighting applications are the most energy-efficient and rapidly evolving lighting technologies available today. Compared to conventional incandescent bulbs, LEDs consume 90% less energy and extend their service life by a factor of 25.


2. What are the requirements for good street lighting?

Specifications for effective street lighting or general lighting systems

• High lighting effect: Try to get more lumens (or brightness) per watt of energy.

• Cost-effective: Low operating costs.

• System life: The longer the life, the better.

• Good color rendering: Helps objects look more natural and pleasant.


3. What applications are LED Shoebox Light Fixtures good for?

LED shoebox lights are ideal for use as lighting equipment for large areas such as parking lots, airport terminals, parks, garages, city street, sports fields, sidewalks, intersections, bus stops, etc. They are also ideal for use in places where there are opportunities where large crowds gather.
