Economical LED street light

Home  /  Products / LED Street Light / Economical LED street light
  • 70W LED Street Light with Motion Sensor And Smart Controller
  • 70W LED Street Light with Motion Sensor And Smart Controller
  • 70W LED Street Light with Motion Sensor And Smart Controller
  • 70W LED Street Light with Motion Sensor And Smart Controller
  • 70W LED Street Light with Motion Sensor And Smart Controller

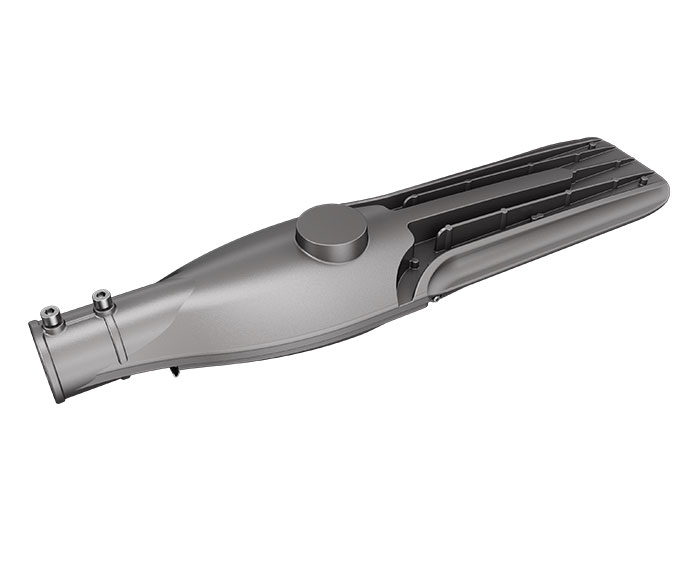

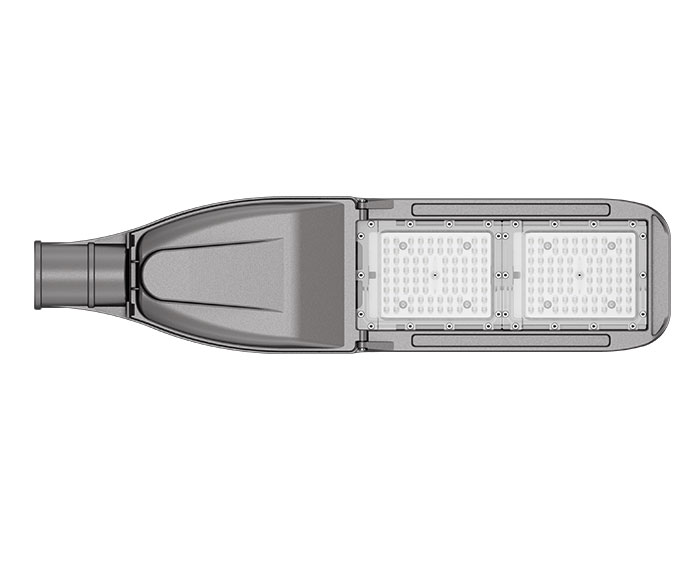

70W LED Street Light with Motion Sensor And Smart Controller

70w LED Street Light is a street lighting system controlled by motion sensors that automatically activate when a car or pedestrian is detected nearby. If no moving object passes by, the light automatically dims. As a professional LED street light manufacturer, ZGSM has rich experience in the combination of LED street lights and intelligent control systems.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

● Wide power range: 60W~130W.

● Smart design, low transportation costs.

● Special circuit design, single LED damage won't affect others' normal work.

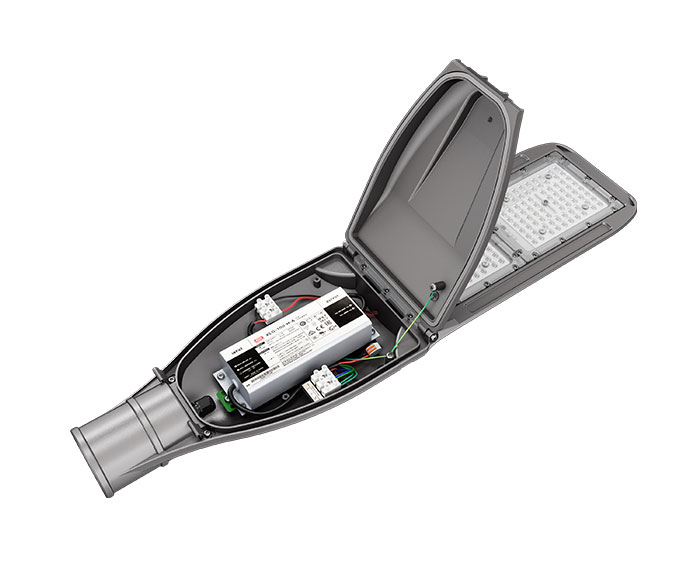

● Tool-less open for easy installation, replacement, and maintenance.

● High Lumen output up to 160lm/ w with high-quality LED chips.

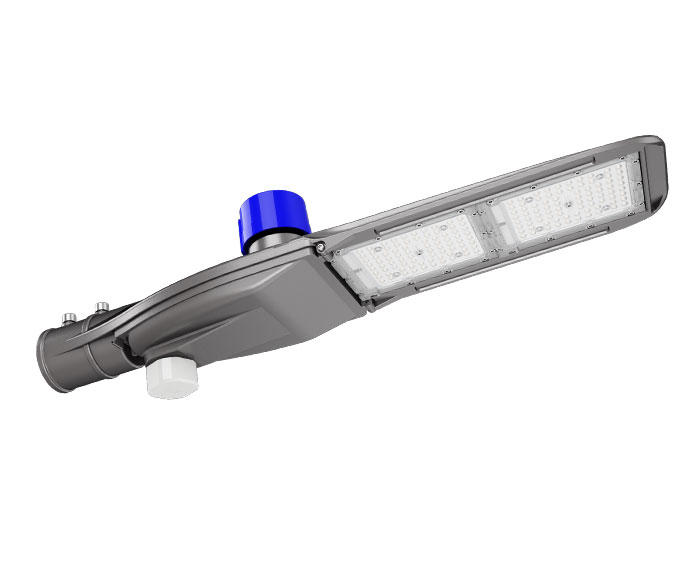

● Multiple lighting control options are available, e.g.1-10V, photocell, and motion sensor.

● Designed to last at least 100,000 hours at L70.


Specifications

ModelZGSM-LD70Kmini2
LED BrandLUMILEDS® LUXEON 3030/ 5050
Driver BrandInventronics
Normal Wattage70W
LED Chip Quantity

3030: 80pcs  5050: 32pcs

Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency3030: 135 lm /w  5050: 150 lm /w
Lamp Rated Lumen output3030: 9450 lm  5050: 10500 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric Type3030: Type II Medium  5050: Type II Medium BLS
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; PC Lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I
SPD10KV (20KV optional)
CertificationCE, ENEC,CB ROHS,LM80,LM79,IP66 IK10,ISTMT
Dimming Options1-10V
Control OptionsPhotocell or Smart control
Color OptionsDark grey
Warranty5 years


FAQ

1. Which sensors are used to control street lights?

Photocell sensors are also used to turn off street lights by detecting the brightness of the sun's light. In addition, solar-powered street light control and ZigBee-based street light control systems have been implemented.


2. How do smart street lights work?

Street lights work automatically by detecting the movement of objects on the street. Infrared sensors are used to detect objects. The system also includes a DHT11 humidity and temperature sensor that provides accurate information about the temperature and humidity of the area.


3. What is a NEMA socket/connector?

NEMA means National Electrical Manufacturers Association in the USA. NEMA connectors are power plugs and receptacles used for AC mains electricity in North America and other countries that use the standards set by the US National Electrical Manufacturers Association. The voltage ratings for NEMA wire devices range from 125 to 600 volts and the current values range from 15 to 60 amperes (A) (V). For each combination of voltage, electric current carrying capacity, and grounding system, different permutations of contact blade widths, shapes, orientations, and dimensions result in non-interchangeable connections.
