Modular Design LED Tunnel Light

Home  /  Products / LED Tunnel Light / Modular Design LED Tunnel Light
  • 120w led tunnel lights
  • 120w led tunnel lights
  • 120w led tunnel lights
  • 120w led tunnel lights
  • 120w led tunnel lights

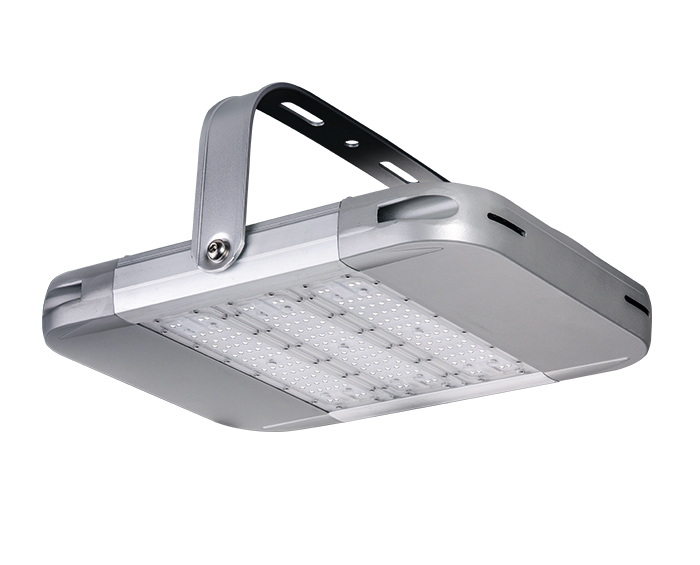

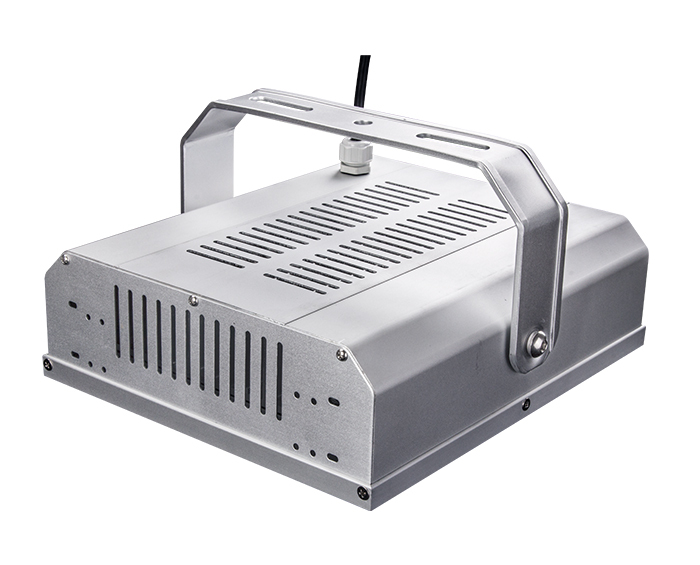

120w led tunnel lights

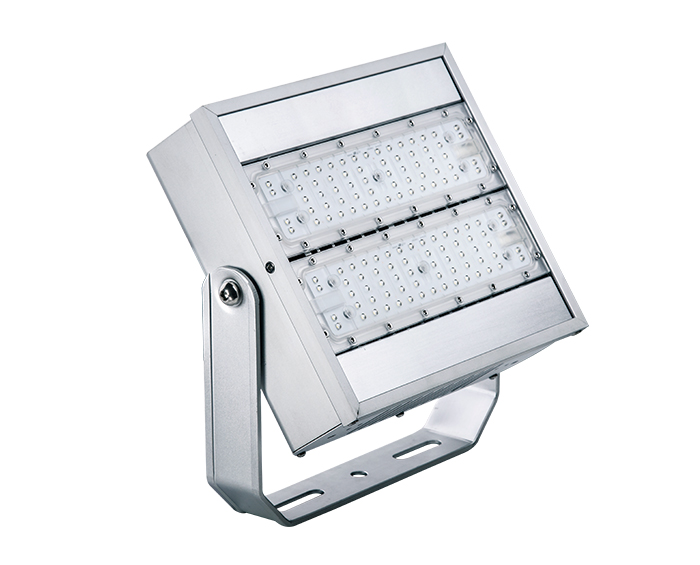

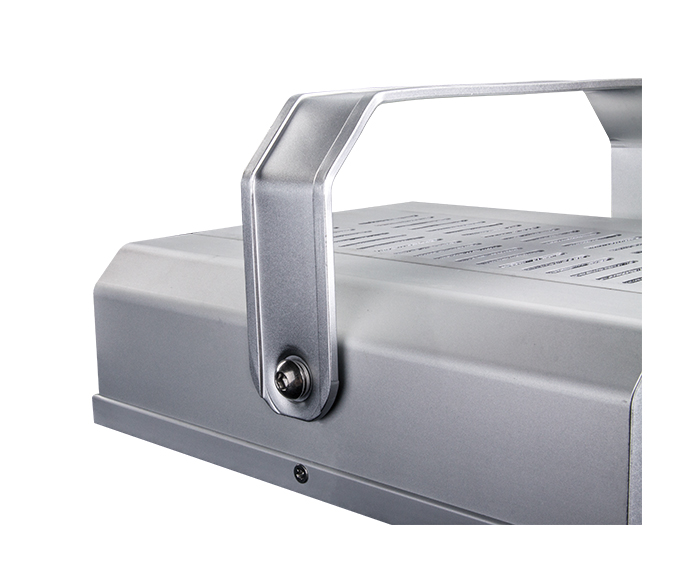

120w led tunnel lights are LED lighting specially designed for tunnels, underpasses, and corridors. The design of the asymmetric spectrum enhances the brightness of the one-way tunnel, providing high-quality lighting for the tunnel. A flexible bracket can adjust the installation angle arbitrarily.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

led tunnel light, tunnel lights, led light tunnel, tunnel lamp, tunnel lighting

1. Wide power range: 40W~240W.

2. Special circuit design, single LED damage won't affect others' normal work.

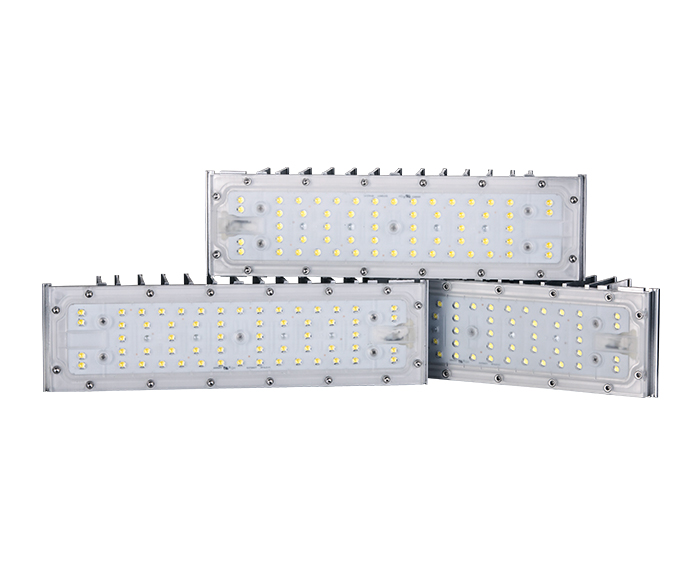

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Variety applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.

Specifications

ModelZGSM-SDD120H6
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage120W
LED Module Quantity2 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency125-155 lm/w
Lamp Rated Lumen output15000-18600 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

Why does tunnel lighting need?

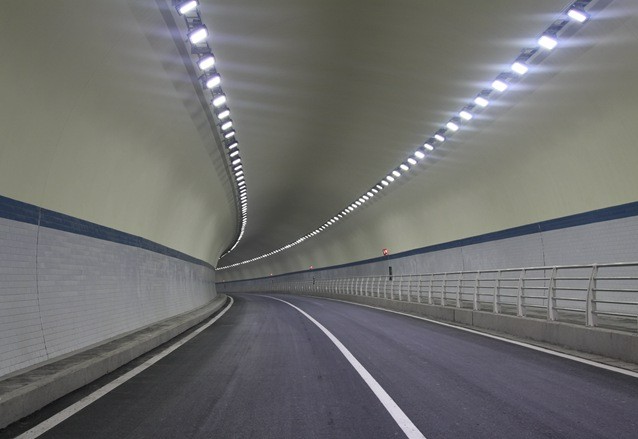

Tunnel lighting is necessary to solve the problem of sudden adaptation to the environment inside the tunnel. The need to balance the adaptability of the internal and external brightness to the people entering and leaving the tunnel. This design is based on a certain critical length of the tunnel.


Which tunnel light is the best?

Asymmetrical lighting

It is generally used for transition zones and internal areas of long tunnels, short tunnels, or low-speed tunnels in all areas. Asymmetrical lighting can also be a way to enhance the brightness level of a one-way tunnel.
