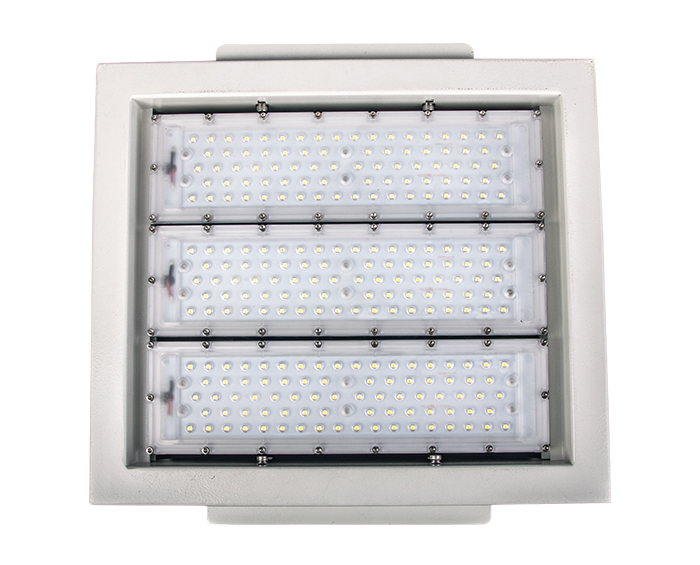

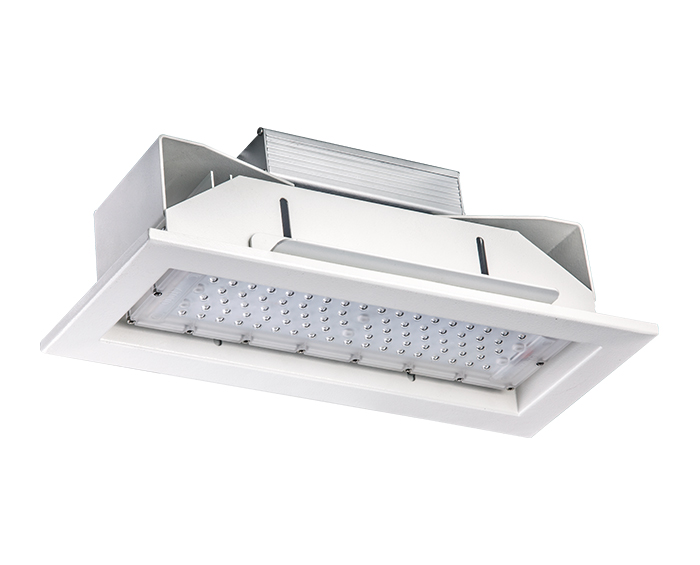

Recessed LED Canopy Light
Series A5 Recessed LED Canopy Light
Model:
ZGSM-QD50A5
Applications：
Gas station | Toll station | Petrol station
1. Wide power range: 40W~200W.
2. Special circuit design, single LED’s damage won't affect others' normal work.
3. Modular design for easy installation, replacement and maintenance.
4. High Lumen output up to 140lm/ w with high quality LED chips.
5. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.
6. Designed to last at least 100,.000 hours at L70.
7. Multiple lighting distributions are available.
8. Multiple lighting distributions are available.
| Model | ZGSM-QD50A5 |
| LED Brand | Lumileds LUXEON 3030 |

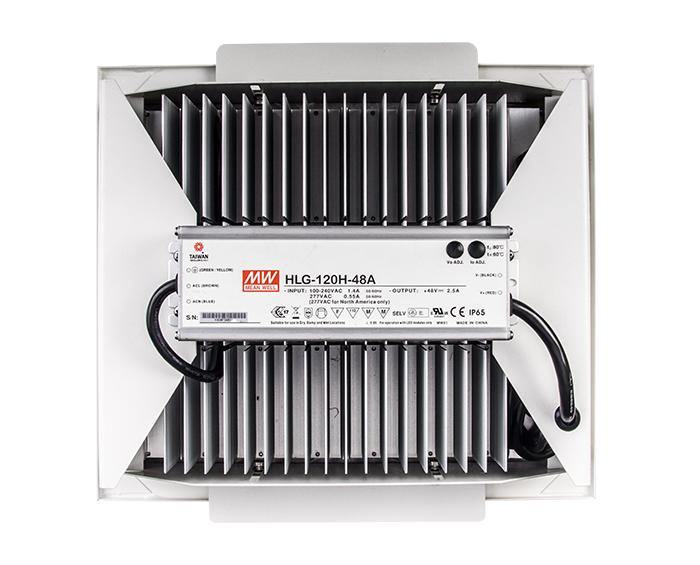

| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 50W |
| LED Module Quantity | 1 module |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 135 lm/w |
| Lamp Rated Lumen output | 6750 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Stretching Aluminum |
| Cover | PC lens |
| Rating | IP65 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE,ROHS,LM80 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | White |
| Warranty | 7 years |
| Fixture Dimension | 180x365x130mm |
| Fixture Weight | 3.2kg |
| Packing Dimension | 415x200x195 mm |
| Packing Weight | 4.0 kg |
