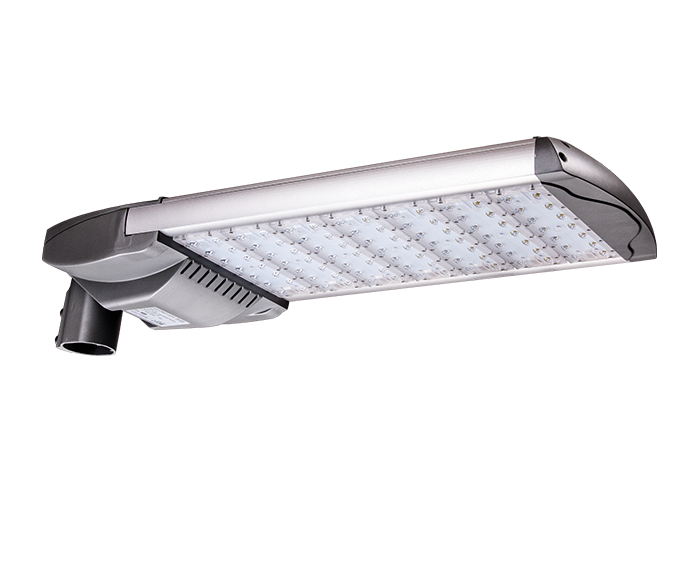

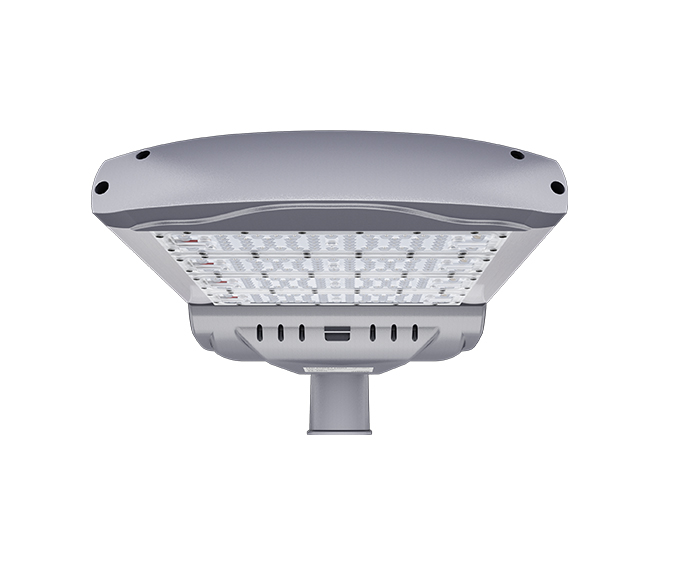

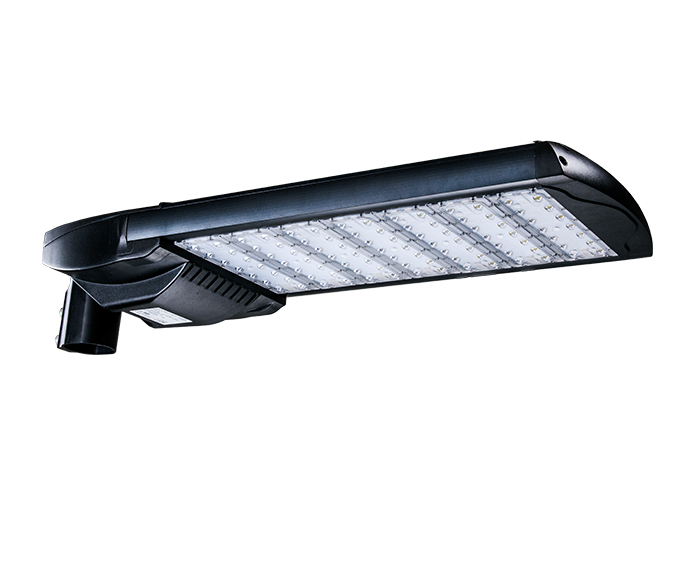

UL And DLC Listed 230W Street Light Supplier

UL and DLC listed 230w street light supplier, modular design LED light is one of our main products. We can produce kinds of modular design LED lights such as LED canopy lights, parking lot lights, street lights, tunnel lights, high bay lights, etc.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED damage won't affect others' normal work.

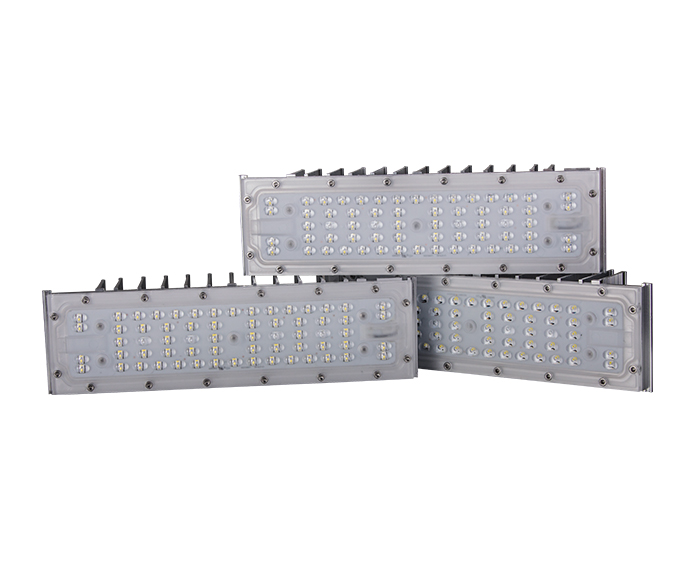

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE,ROHS,GS,CB,LM80,FCC,IP66,IK10

14. 7 years warranty

Specifications

Model	ZGSM-LD230H
LED Brand	Lumileds Luxeon TX
Driver Brand	Meanwell or Inventronics
Normal Wattage	230W
LED Module Quantity	7 modules
Input Voltage	100-240/277VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	>110lm/w
Lamp Rated Lumen output	25300 lm (Lumen tolerance +/- 5%)
Color Rendering Index	Ra>70
Color Temperature	3000K, or 4000K, or 5000K, or 5700K
Photometric Type	Type I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature	25°
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100000 hours -L70, @25 ºC (77 ºF)
Wind Index	Force 12
Body	Die-cast Aluminum Housing
Cover	PC lens
Pole Fitter Diameter	60mm ( 50mm optional)
Rating	IP66 IK10
Protection	Class I ( Class II optional)
SPD	10KV (20KV optional)
Certification	CE,ROHS,GS,CB,UL,cUL,DLC,LM-79,LM80,SAA
Dimming Options	1-10V or DALI or PWM or Timer
Control Options	Photocell or Motion sensor or Smart control
Color Options	Silver or Black
Warranty	7 years

FAQ

1. How many street lights can one gateway control?

Support for multiple devices in a single network

One IoT gateway can communicate with up to 200 street light controllers and motion sensors. This means you can monitor up to 200 smart street lights with a single gateway.

2. Can the laser pointer turn off the street lights?

Locate the light sensor on the street lamp and align it. This will take about 20 seconds, and then it should be disabled for a few minutes. If you aim the laser at the sensor, it will remain off all night.

3. What is a NEMA socket/connector?

NEMA means National Electrical Manufacturers Association in the USA. NEMA connectors are power plugs and receptacles used for AC mains electricity in North America and other countries that use the standards set by the US National Electrical Manufacturers Association. The voltage ratings for NEMA wire devices range from 125 to 600 volts and the current values range from 15 to 60 amperes (A) (V). For each combination of voltage, electric current carrying capacity, and grounding system, different permutations of contact blade widths, shapes, orientations, and dimensions result in non-interchangeable connections.
