Modular Design LED Street Light

Home  /  Products / LED Street Light / Modular Design LED Street Light
  • 200W LED Street Light With IK10
  • 200W LED Street Light With IK10
  • 200W LED Street Light With IK10
  • 200W LED Street Light With IK10
  • 200W LED Street Light With IK10

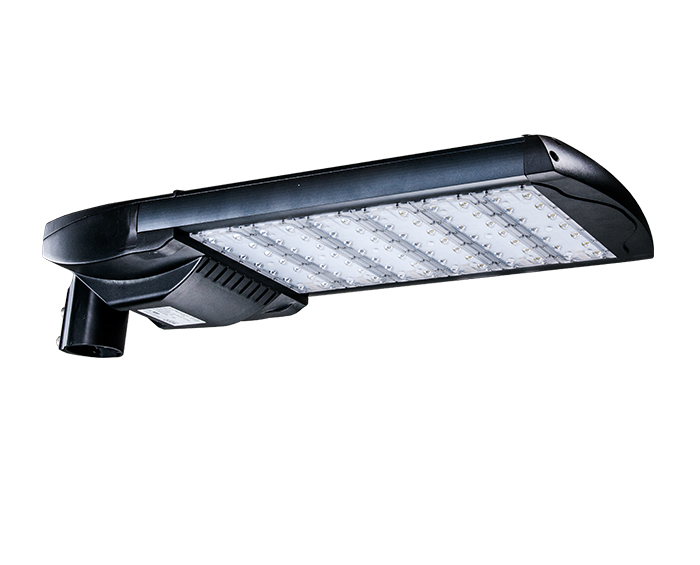

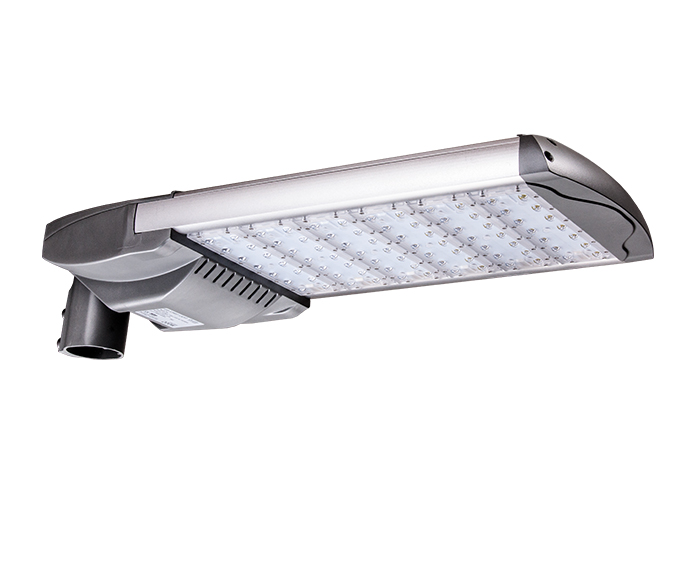

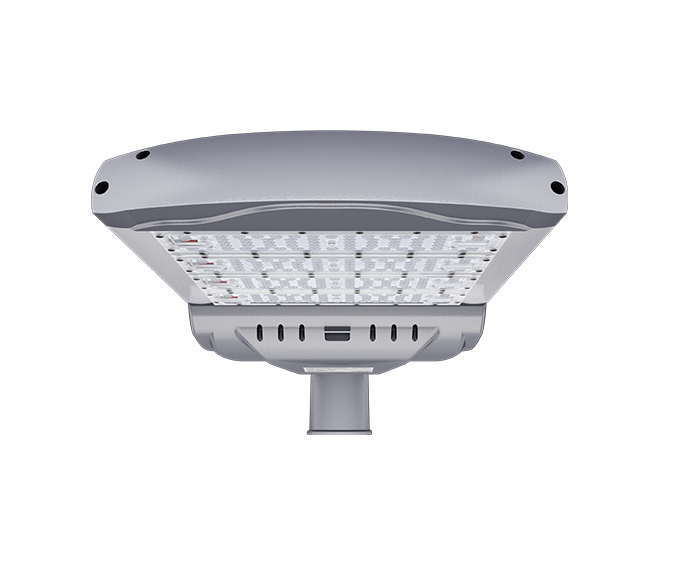

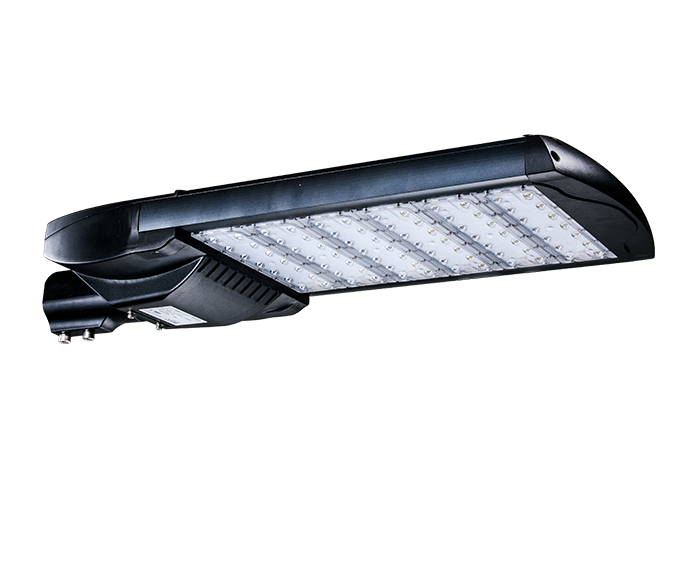

200W LED Street Light With IK10

ZGSM is a street light manufacturer, This street light adopts a modular design to save replacement and maintenance costs. LED Street Light Price 200W is affordable, it is your first choice for street lights,  there are gray and black options and colors can also be customized according to customer requirements, welcome to buy.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

led street light, street light manufacturers, led street lighting, street light fixture, black street light

1. Wide power range: 35W~320W.

2. Special circuit design, single LED damage won't affect others' normal work.

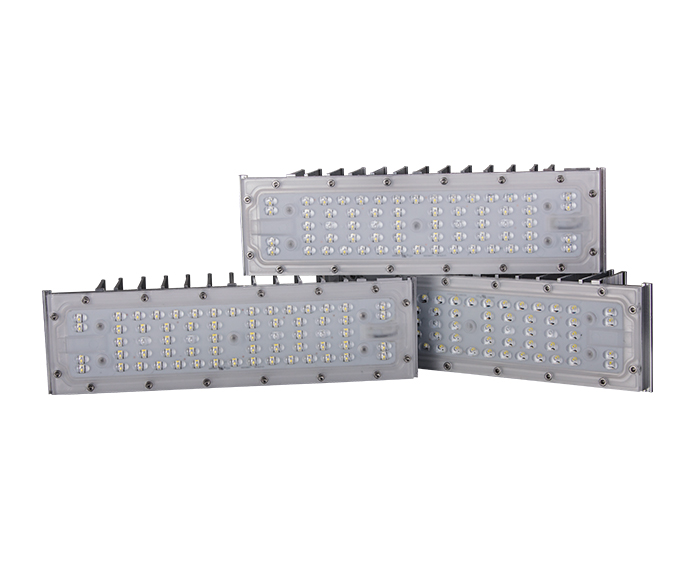

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE, ROHS, GS, CB, LM80, FCC, IP66, IK10

14. 7 years warranty


Specifications

ModelZGSM-LD200H
LED BrandLumileds Luxeon TX
Driver BrandMeanwell or Inventronics
Normal Wattage200W
LED Module Quantity6 modules
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110lm/w
Lamp Rated Lumen output22000 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79,LM80,SAA
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years




FAQ

1. How much does it cost to install a street light?

How much does it cost to install a street lamp? Typically, a street lamp can cost between $20 and $300. The installation fee for street lights can cost $1,000, depending on the region.


2. How do LED Street Lights Compare to High-Pressure Sodium Street Lights?

The biggest difference between LED lamps and high-pressure sodium lamps is the color temperature and color rendering index. LED lights have a wider range of color temperatures as well as a higher color rendering index. LED area lights have easier intrinsicality than high-pressure sodium lamps.


3. How can optics and controls help mitigate any negative impacts of public light?

Controls for ZGSM lighting solutions, such as dusk-to-dawn sensors, can automatically dim or turn off the luminaires depending on the time of day, lowering both energy usage and any adverse environmental effects. Our solutions also include shields to reduce sidelight and uplight as well as, most crucially, "optics" to lessen glare regardless of how much blue light or what color temperature (e.g., 3,000K vs. 4,000K) they produce.
