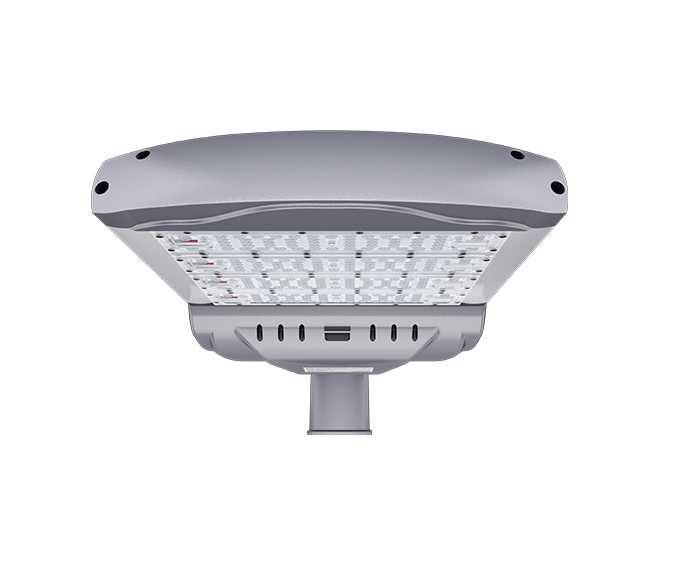

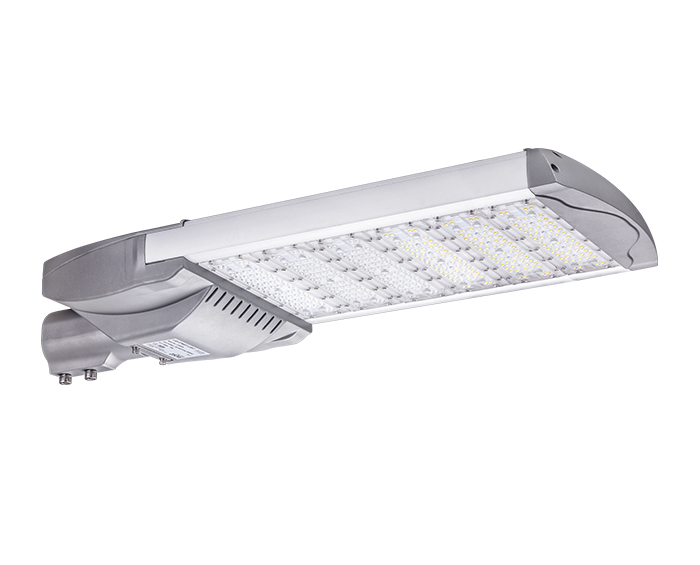

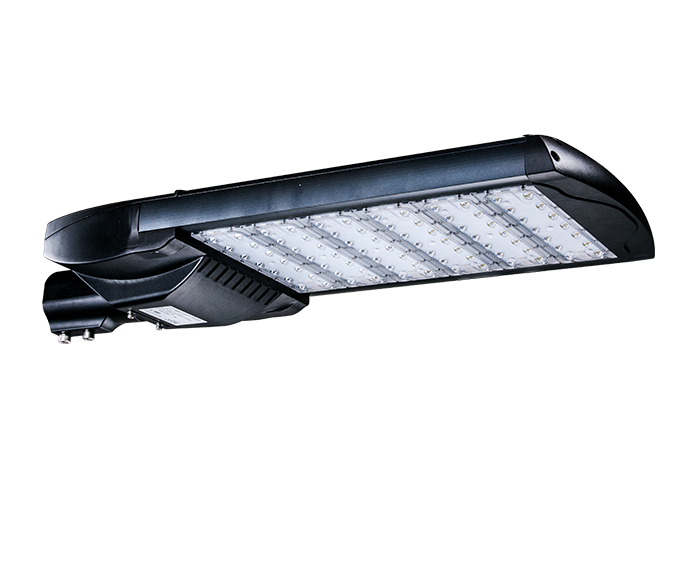

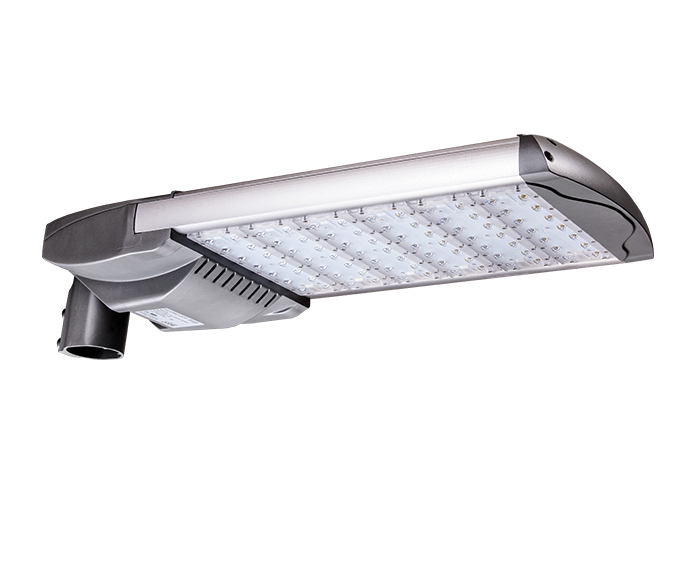

Cheap Price 320w Modular Design LED Path Light

320W Modular LED street lights produced by ZGSM use IP66 LED modules, which are dust-proof, waterproof, easy to assemble, good in heat dissipation, and easy for maintenance. Its high power feature makes it widely used in main roads, highways, squares, and parking lots.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

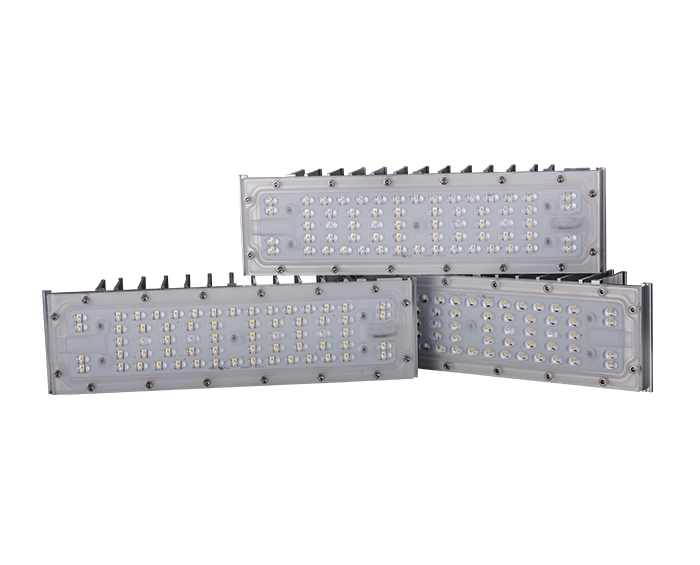

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality Lumileds LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE,ROHS,UL,DLC,GS,CB,LM80,FCC,IP66,IK10

14. 7 years warranty

Specifications

Specifications
Model	ZGSM-LD320H6
LED Brand	Lumileds 3030/5050
Driver Brand	Meanwell or Inventronics
Norminal Wattage	320W
LED Module Quantity	6 modules
Input Voltage	100-240/277VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	128-158 lm/w
Lamp Rated Lumen output	40960-50560 lm (Lumen tolerance +/- 5%)
Color Rendering Index	70( 80 optional）
Color Temperature	3000K or 4000K or 5000K or 5700K
Photometric Type	Type I Medium;Type II Medium;Type III Medium,TypeV,Short
Optimal Operating Temperature	25°
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100000 hours -L70, @25 ºC (77 ºF)
Wind Index	Force 12
Body	Die-cast aluminum Housing
Cover	PC lens
Pole Fitter Diameter	60mm ( 50mm optional)
Rating	IP66 IK10
Protection	Class I ( Class II optional)
SPD	10KV (20KV optional)
Certification	CE,ROHS,LM80,LM79,FCC,IP66,IK10
Dimming Options	1-10V or DALI or PWM or Timer
Control Options	Photocell or Motion sensor or Smart control
Color Options	Silver or Black
Warranty	7 years

FAQ

1. What is the voltage used by LED street lights?

LED street lights generally use alternating current with a voltage of 100-240/277VAC. Of course, there are also street lights with 347VAC, 480VAC, 520VAC high voltage input in the United States and Canada. In addition, the 12VDC or 24VDC LED street lights refer to solar power, which is converted solar energy into electric energy by solar panels and stored energy in the battery to continuously supply power to the LED street lights when needed.

2. Is there an industry standard for street lighting?

For the design, manufacture, and distribution of products, there are standards that have been established by international and regional standardization bodies like CIE, IES, and CEN that are widely regarded as industry best practices. The LED lights manufacured by ZGSM are CE, RoHS, CB, UL, DLC, SAA, ENEC certified. The lighting solutions we provide meet the requirements of these standard.

3. How long do LED street lights last?

About 15 to 20 years.

LEDs use up to 50% less energy than standard sodium bulbs and can last for 15 to 20 years. There are also some surprising advantages. Better street lighting may make it easier to use public transit by reducing the feeling of danger and increasing visibility on the roads.
