ENEC certified 27w tool-less pathway lights

When it comes to driveway lighting, LEDs are the way to go. Outdoor LED lighting provides long-lasting, powerful illumination in an energy-efficient manner. LED driveway lights are stylish and beautiful. It is designed to make the most of your driveway and yard. Can be equipped with motion sensors, and the motion sensor lights that come on when you walk to a car or drive are a great safe choice.

Inquire Now None

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 27W~120W

2. Special circuit design, single LED damage won't affect others' normal work

3. Tool-less open for easy installation, replacement, and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Breather ensures air balance inside and outside of the lamp

7. High Lumen output up to 150lm/w with high quality LED chips

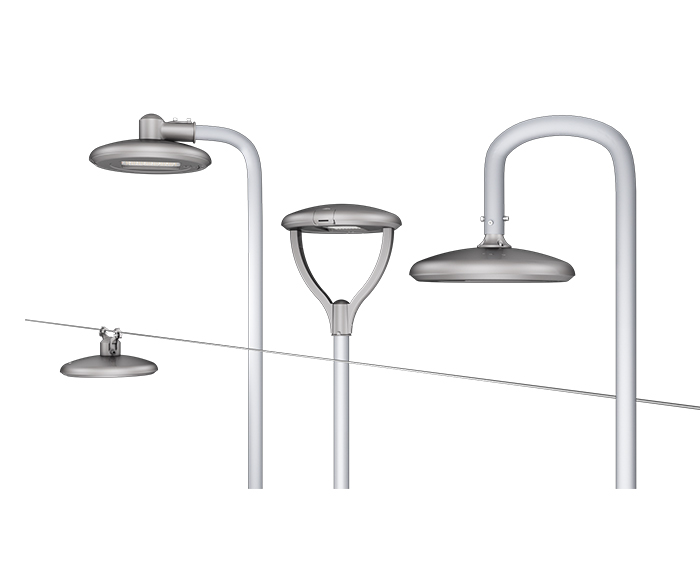

8. Post Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional.

9. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell

10. Designed to last at least 100,000 hours at L70

11. Multiple lighting distributions are available

12. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

13. 7 years limited warranty available.

Specifications

Model	ZGSM-LD27LMA
LED Brand	LUMILEDS® LUXEON 3030 or 5050
Driver Brand	Meanwell HLG series/ Inventronics
Normal Wattage	27W
LED Chip Quantity	3030: 72pcs 5050: 36pcs
Input Voltage	100-240/277VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	115-135 lm /w
Lamp Rated Lumen output	3105-3645 lm (Lumen tolerance +/- 5%)
Color Rendering Index	70(80 optional)
Color Temperature	3000K or 4000K or 5000K or 5700K
Photometric Type	Type I Medium; Type II Medium; Type III Medium; TypeV, Short
Optimal Operating Temperature	25℃
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100,000 hours -L70, @25 ºC (77 ºF)
Wind Index	Force 12
Body and Shell Materials	Die-cast aluminum; Tempered Glass
Pole Fitter Diameter	60mm
Rating	IP66 IK08
Protection	Class I ( Class II optional)
SPD	10KV (20KV optional)
Certification	CE, ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT
Dimming Options	1-10V or DALI or PWM or Timer
Control Options	Photocell or Motion sensor or Smart control
Color Options	Deep grey
Warranty	7 years

FAQ

Types of driveway lights?

Fence Post Lights.
Up-Down Lights.
Hanging Lantern Pathway Lights.
Outdoor Rope Lighting.
Security Flood Light.
Barn Light.
Solar Powered Up-Light.
Outdoor Wall Lights.
Post Lights.
Solar Pathway Lights.
Glowing Stake Lights.
Brick Pillar Light.

How many lumens are required for driveway lighting?

How many lumens do I need for a lane? A lane can range from 1600 lumens in a small lane to 2400 lumens in a large lane. The lane needs to be safe, so make sure it's well lit. The motion sensor lights that come on when you walk to the car or drive are a great safe choice.
