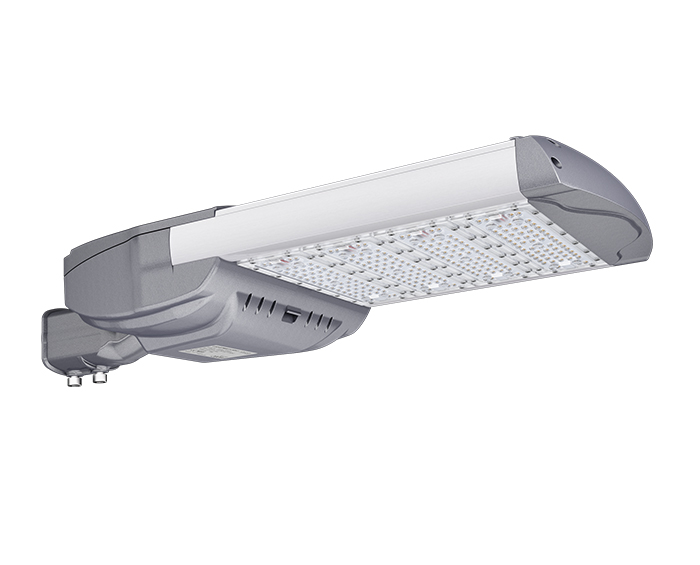

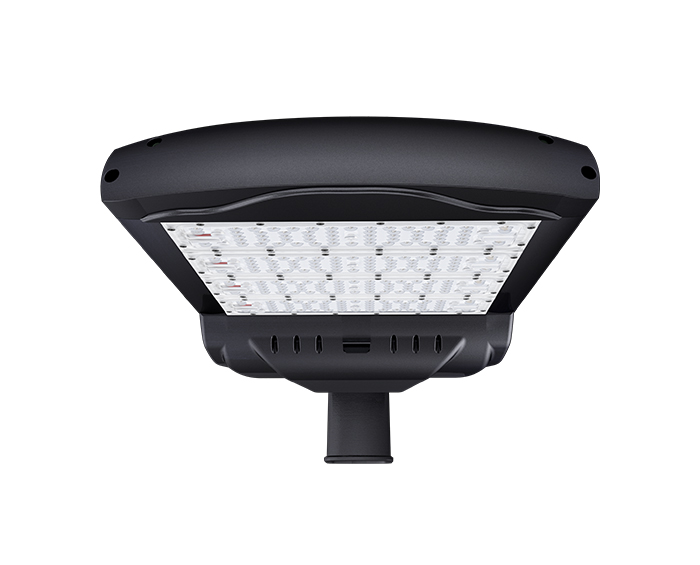

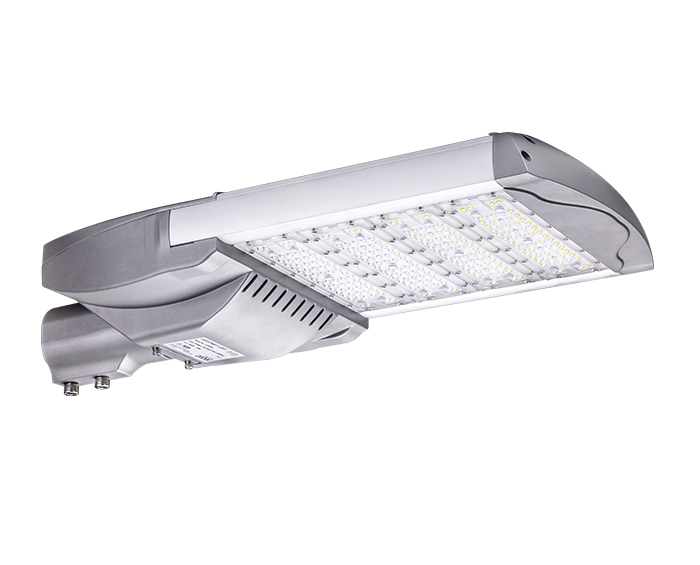

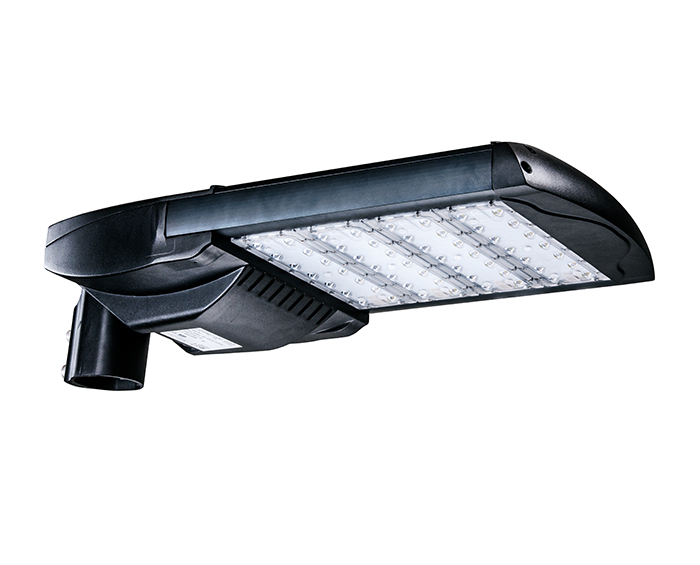

Modular Design LED Street Light
Learn about our Neighborhood Street Lights and enhance your LED street lighting solutions with our LED product range designed specifically for street lighting. You can choose the appropriate accessories to realize the intelligence of street lights, so that the management of street lights in your residential area is more convenient.
1. Wide power range: 35W~320W.
2. Special circuit design, single LED damage won't affect others' normal work.

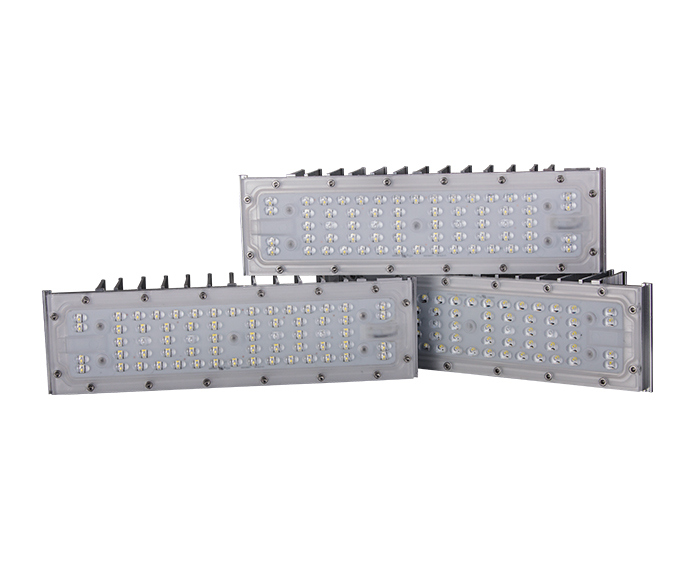

3. Modular design and tool-less open for easy replacement and maintenance.
4. Power-off protection makes the power automatically off when the fixture is opened (optional).
5. Level bubble makes it easy for the installer to adjust the position of the lamp.
6. Breather ensures air balance inside and outside of the driver box of the lamp.
7. High Lumen output up to 165lm/ w with high-quality LED chips.
8. 1000 hours salt spray test report.
9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.
10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.
11. Designed to last at least 100, 000 hours at L70.
12. Multiple lighting distributions are available.
14. 7 years warranty
|LED Brand||Lumileds 3030/5050|
|Driver Brand||Meanwell or Inventronics|
|LED Module Quantity||4 modules|
|Lamp Rated Luminous Efficiency||125-155 lm/w|
|Lamp Rated Lumen output||30000-37200 lm (Lumen tolerance +/- 5%)|
|Color Rendering Index||70( 80 optional）|
|Color Temperature||3000K, 4000K, 5000K, or 5700K|
|Photometric Type||Type I Medium; Type II Medium; Type III Medium, TypeV, Short|
|Optimal Operating Temperature||25°|
|Working Environment||Between-40°C~+50°C, 10%~90%RH|
|Total Harmonic Distortion||< 10%|
|Lumen Maintenance||> 100000 hours -L70, @25 ºC (77 ºF)|
|Wind Index||Force 12|
|Body||Die-cast Aluminum Housing|
|Pole Fitter Diameter||60mm ( 50mm optional)|
|Protection||Class I ( Class II optional)|
|SPD||10KV (20KV optional)|
|Dimming Options||1-10V or DALI or PWM or Timer|
|Control Options||Photocell or Motion sensor or Smart control|
|Color Options||Silver or Black|
Basically, our goal is always to provide illumination that enables people to accurately and comfortably identify risks and hazards, regardless of the light source. These may include:
Pedestrian vehicle conflict
Obstacles on the driver's road, other vehicles, and pedestrians clash
Giving drivers and pedestrians time to identify and avoid these threats can improve safety.
The intelligent street lighting system consists of a set of street lights that can communicate with each other and provide lighting data to the local concentrator. The concentrator manages the relevant data and transmits it to a secure server, which captures the data and presents it in a web browser dashboard.
NEMA means National Electrical Manufacturers Association in the USA. NEMA connectors are power plugs and receptacles used for AC mains electricity in North America and other countries that use the standards set by the US National Electrical Manufacturers Association. The voltage ratings for NEMA wire devices range from 125 to 600 volts and the current values range from 15 to 60 amperes (A) (V). For each combination of voltage, electric current carrying capacity, and grounding system, different permutations of contact blade widths, shapes, orientations, and dimensions result in non-interchangeable connections.
