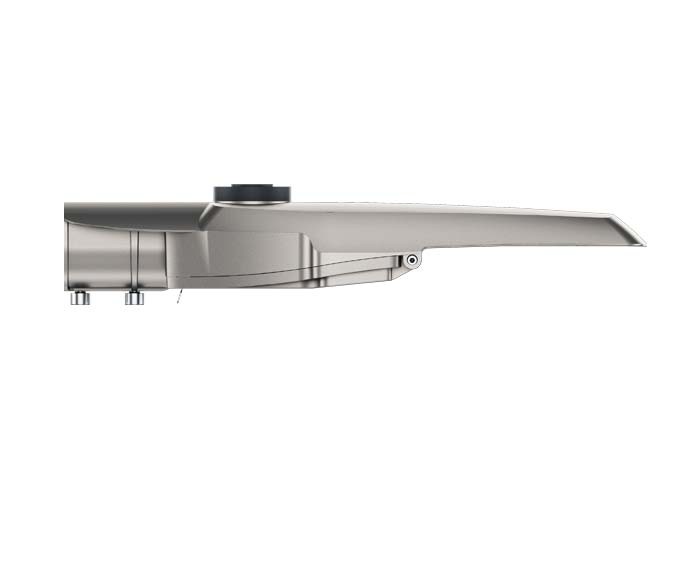

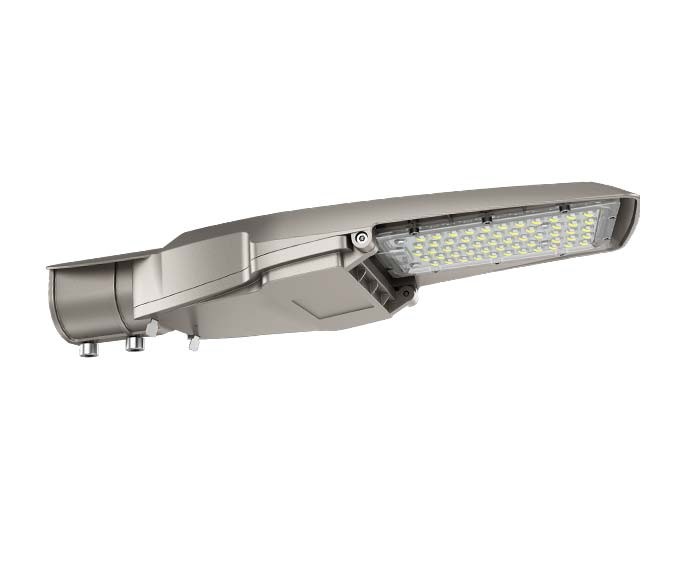

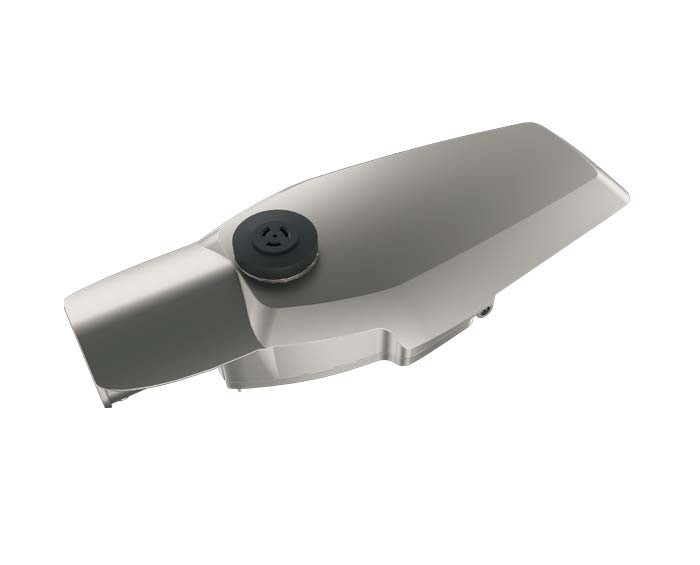

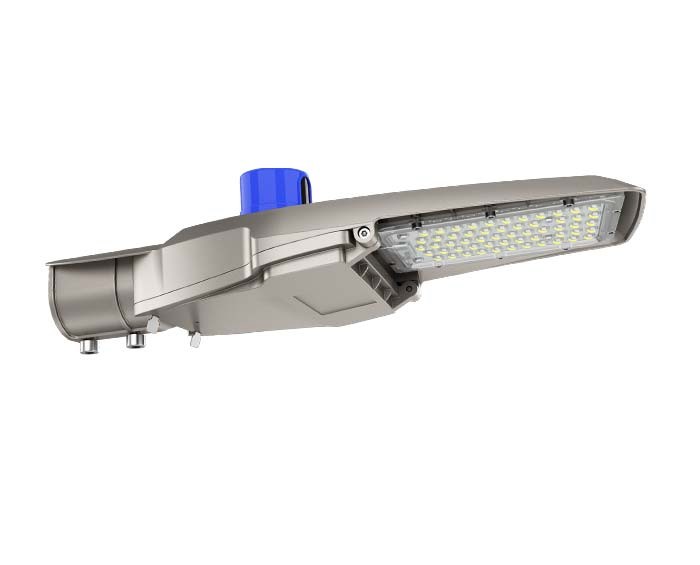

Series Leaf Smart LED Street Light

The Leaf series LED street lights are smart led street light designed with leaves as the prototype. The minimalist design can be equipped with a NEMA socket for intelligent control and can be turned on without tools, which is convenient for future upgrades and maintenance. This smart led street light is also suitable for use as a street light head for split solar street lights and two-in-one solar street lights. The Leaf series smart led street light with high light efficiency, long life and slow light decay are designed to provide green lighting for the city.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

Power range 20W-160W
Free-tool maintenance
High performance with Lumileds chips
Luminaire efficiency up to 199 lm/W
Build-in 10KV surge protection device
Two light distributions
Customized dimming profile as per request
ENEC certified for both Class I and II
Available on request: NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Daylight sensor, Motion sensor, NTC, OLC, Solar Compatible, DALI Dimming

Specifications

Series No	Series Leaf
Power	20W, 30W, 40W, 50W, 60W, 70W, 80W, 90W, 100W, 110W, 120W, 130W, 140W, 150W, 160W
Efficacy	155-199lm/W
Input Voltage	100-240/277 VAC, 50 / 60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request) with IEC61643-11
IP Rating	IP66
IK Rating	IK09
CCT	2200K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	Type II, Medium
Mounting Option	Side entry, or vertical pole mounted with adapters
Warranty	5 Years
Certification	CE, RoHS, ENEC, CB, Zhaga-D4i, LM79, LM80, TM-21, IP66, IK09/IK10, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO9227, CISPR15:2018
Control	Daylightsensor, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control

FAQ

1. What is a NEMA protector socket?

NEMA protector socket, specifically those used for street lighting, are a standardized electrical interface for connecting luminaires (lighting equipment) to control equipment (usually photocontrols or other automation systems). These receptacles are designed with a twist-lock mechanism for a secure and reliable connection and are often made of durable materials such as polycarbonate. They are a key component of modern outdoor lighting systems, enabling features such as dimming and remote control.

2. Which sensor is used in a smart street light system?

Street light sensors typically include motion detectors (passive infrared or microwave sensors) to detect moving vehicles or pedestrians. When motion is sensed, the lights brighten to full brightness; when no one is in the area, the lights dim or turn off. Smart street lights are equipped with sensors that continuously collect data on environmental conditions, traffic flow, and usage patterns. This data is transmitted to a central management system via a wireless network.
