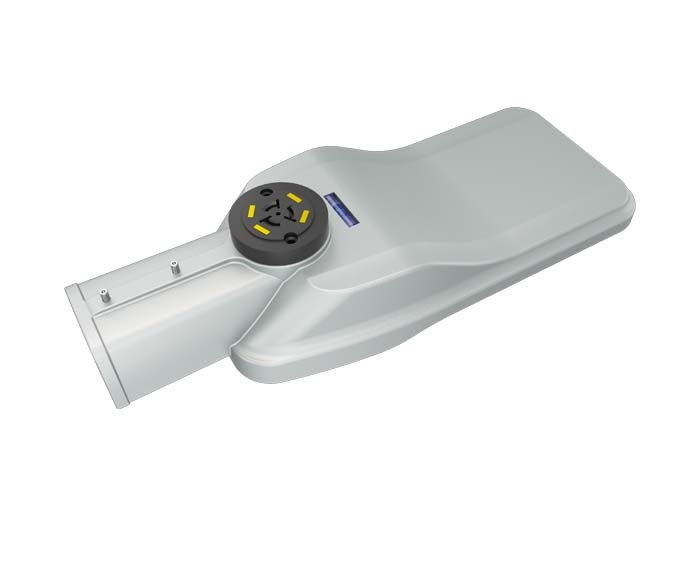

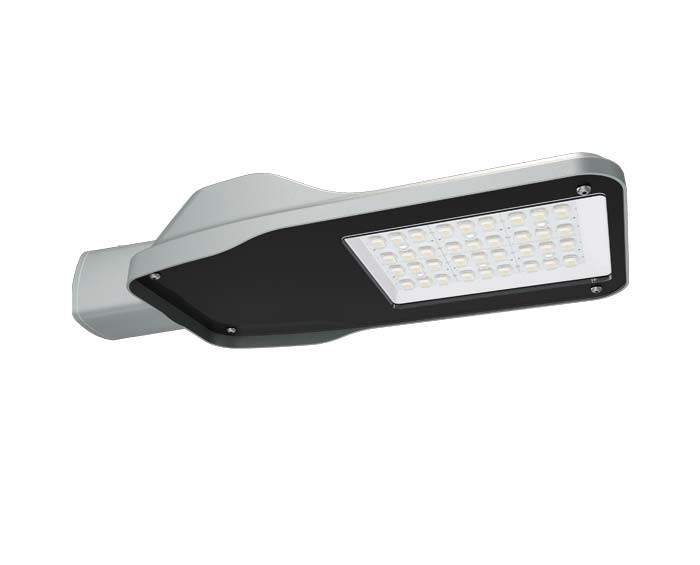

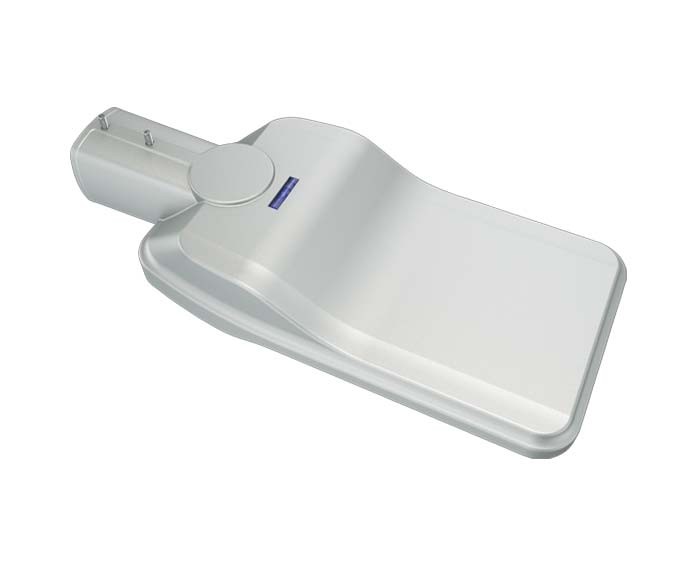

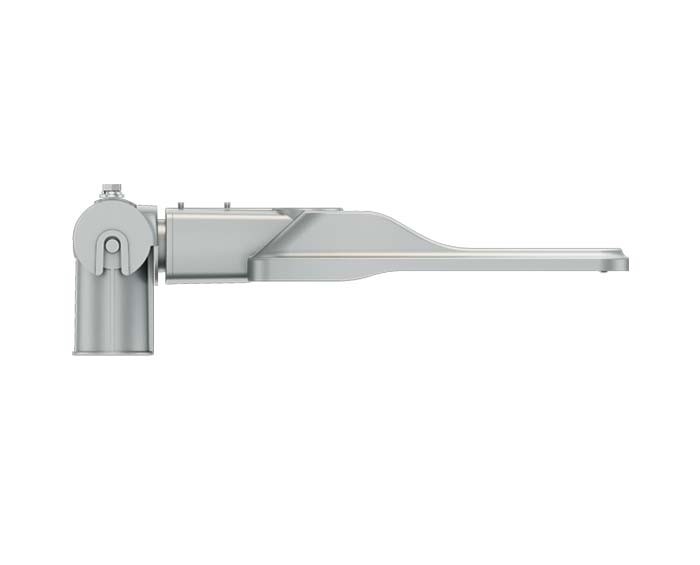

Series Nova Economical LED Street Light

The Nova series economical LED street light is a smart street light that combines high performance with low price. It is available in three sizes with a power of 20-150W. It can be equipped with 1-10V/DALI dimming, NEMA, Zhaga, photoelectric sensor, motion sensor, Zigbee/Lora socket for smart control system or future upgrade. Due to its compact and lightweight design, it greatly reduces transportation costs and is a rare and economical LED street light.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Power covers 30W~150W

2. Easy to install and maintain

3. Full die-casting aluminum housing

4. Efficiency up to 140 lm / W.

5. 10 /20KV SPD, IP66&IK09

6. Variety of optics lenses are available

7. Horizontal bubble Convenient for installers to work accurately.

8. Smart Control: 1-10V/ DALI dimming, NEMA, Zhaga, Photocell, Motion sensor, Zigbee /Lora socket for smart control system or future updating

Specifications

Series No	Series Nova
Power	30W, 40W, 50W, 60W, 80W, 100W,120W, 150W
Efficacy	130-140lm/W
Input Voltage	100-240/277 VAC, 50 / 60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request)
IP Rating	IP66
IK Rating	IK08 / IK10
CCT	3000K, 4000K, 5000K, 5700K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	Type II, Medium; Type III, Medium;
Mounting Option	Side entry or Vertical pole mounted( with extra adapter)
Warranty	5 Years
Certification	CE, RoHS, ENEC, CB, Zhaga-D4i, LM79, LM80, TM-21, IP66, IK08/IK10, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO9227, CISPR15:2018
Control	Photocell, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control

FAQ

1. How efficient is economical LED street light?

Economical LED street light consume significantly less energy than traditional lighting systems. They convert approximately 80-90% of electrical energy into light, whereas conventional lights lose much of their energy as heat.

2. What is intelligent or smart street lighting?

Smart streetlights are public lighting systems that use advanced technologies such as sensors, wireless communications, and data analytics to optimize energy consumption, improve safety, and provide real-time information about urban conditions. These systems go beyond traditional lighting and can dynamically adjust brightness based on environmental factors, traffic flow, and even pedestrian presence.
