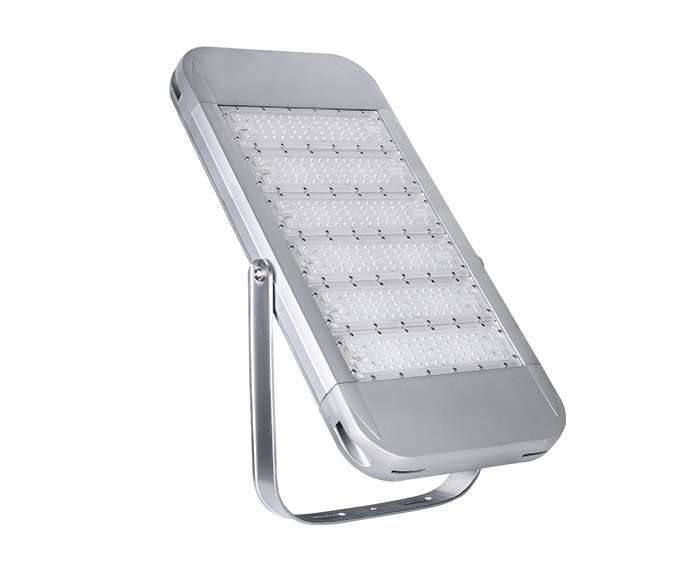

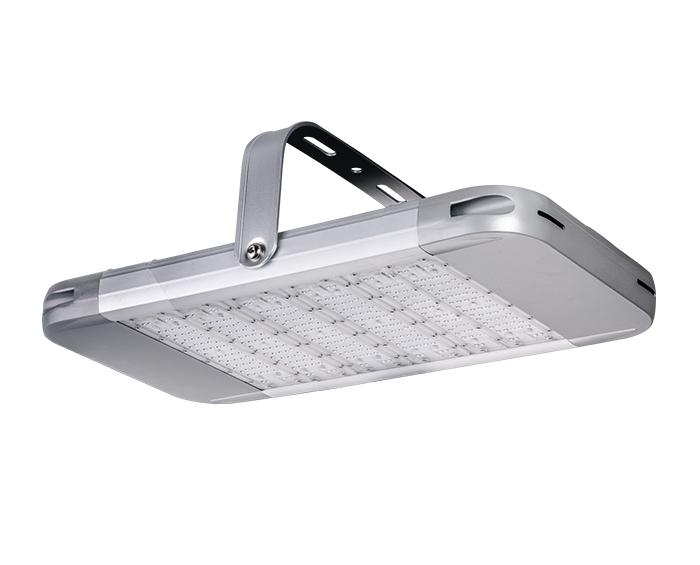

High efficiency 300w Modular design linear high bay

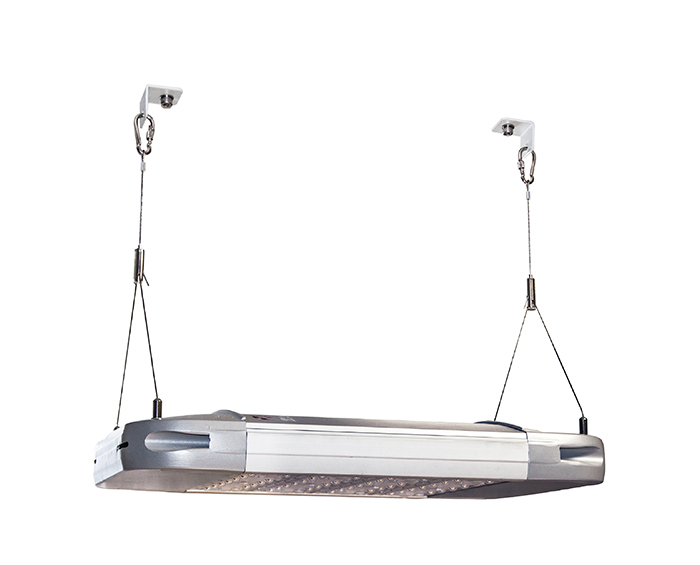

Linear High Bay Lights are a popular choice for warehouse lighting. They are easy to hang with two gripping wire ropes and it is designed to illuminate wide areas where maximum light output is required. This takes modern LED high bay technology and extends it. Longer and wider than UFO lights, giving you different options.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

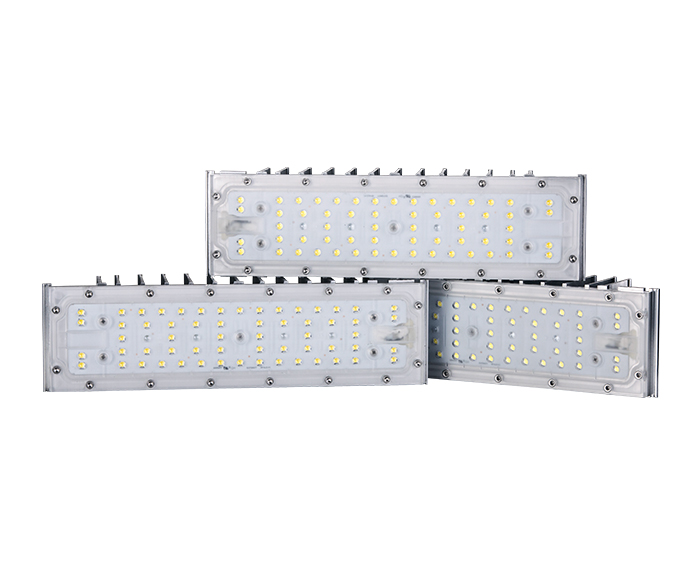

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-GCD300H5
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage300W
LED Module Quantity6 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-160 lm/w
Lamp Rated Lumen output39000-48000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60, 90, 110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)

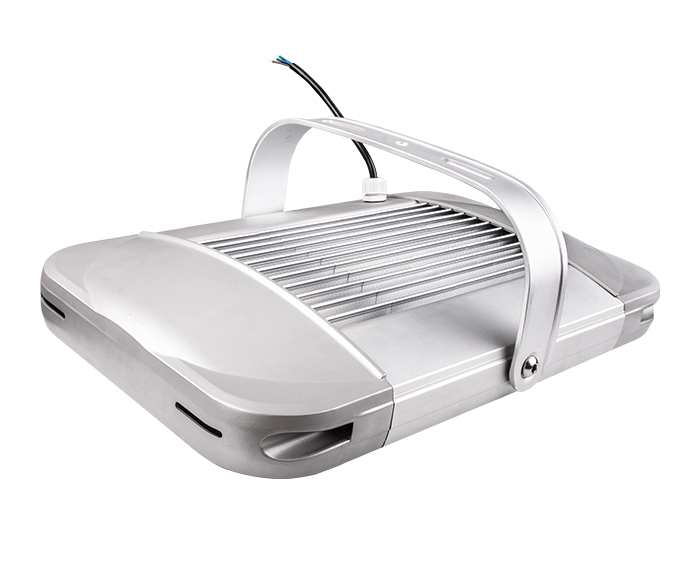

BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

What are Linear High bay lights?

Linear high-bay luminaires are used to illuminate large indoor areas with higher ceilings (typically 20 to 45 feet from the floor). The large space between the ceiling and the floor requires linear miner lamps to provide high lumen output, and light needs to be focused downward from the luminaire. In contrast to other types of circular or "bell-shaped" sheds, linear sheds tend to be rectangular. They can be mounted directly on the ceiling or suspended with chains or cables.


Where are Linear High Bay lights used?

Given their location, linear shed lights are ideal for commercial or industrial spaces. Examples include retail stores, factories, warehouses, hangars, and manufacturing areas. They are also ideal for conference halls, event centers, large recreational facilities, and fitness centers. All of these areas require adequate illumination from a ceiling height of 20 feet or more.


How do you suspend a high bay light?

One installation method is to use a chain to hang a linear LED high bay light.

Step 1: Disconnect the power supply.

Step 2: Wiring.

Step 3: Hang the chain.

Step 4: Secure the chain to the rails.

Step 5: Plugin the power and adjust the light.
