High Tower LED Projector Light

Home  /  Products / LED Projector Light / High Tower LED Projector Light
  • 560w High Tower Stadium LED Projector Light
  • 560w High Tower Stadium LED Projector Light
  • 560w High Tower Stadium LED Projector Light
  • 560w High Tower Stadium LED Projector Light
  • 560w High Tower Stadium LED Projector Light

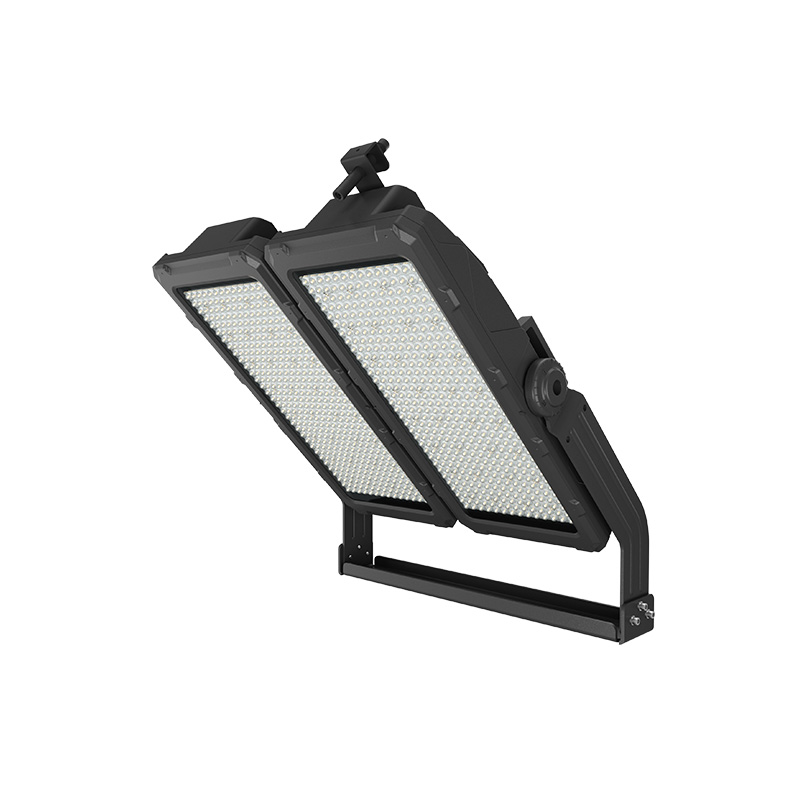

560w High Tower Stadium LED Projector Light

Series M LED Projector Light

Model:

ZGSM-TGD560M

Application:

Stadium | Arena | Golf course | Tennis court | Airport


Share:
PRODUCT DESCRIPTION

Key Features

1. Up to 840W, max lumens is 94, 000lm.

2. Special circuit design, single LED’s damage won't affect others' normal work.

3. Modular design for easy installation, replacement and maintenance.

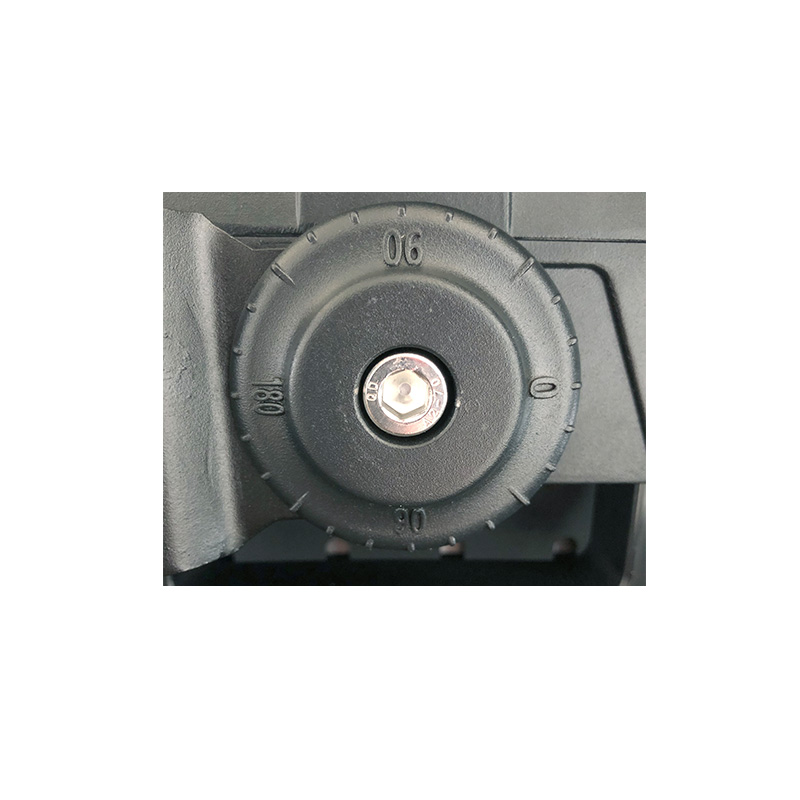

4. Mounting bracket for 360 degree adjustment.

5. Multiple lighting control options are available, e.g. DALI, 1-10V.

6. Designed to last at least 100, 000 hours at L70.

7. Multiple lighting distributions are available.


Specifications

ModelZGSM-TGD560M
LED BrandPhilips Lumileds 3030 2D
Driver BrandINVENTRONICS EUC Series
Norminal Wattage560W
LED Quantity896 Pcs
Input Voltage100-240/277VAC, 50/60Hz
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>150lm/w
Lamp Rated Lumen output84000 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type15, 30,45, 60 degrees
Optimal Operating Temperature25℃
Storage Temperatures‘-40℃~+50℃
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Body and Shell MaterialsStretched Aluminium Alloy
IP RatingIP66, IK10 with test report
CertificationCE,ROHS
Optional Function1-10V DC Dimming
Warranty5 years

Packing Details

Fixture Dimension687 x578 x222 mm
Fixture Weight30.0 kg
Packing Dimension770 x640 x235 mm
Packing Weight35.5 kg

Applications
