UL certified LED High Bay Light

Home  /  Products / LED High Bay Light / UL certified LED High Bay Light
  • 40W High Bay Fixtures UL certified
  • 40W High Bay Fixtures UL certified
  • 40W High Bay Fixtures UL certified
  • 40W High Bay Fixtures UL certified
  • 40W High Bay Fixtures UL certified

40W High Bay Fixtures UL certified

High Bay Fixtures replace mine lamps using metal halides and HPS bulbs, providing more energy-efficient lighting for warehouses, stadiums, and hangars. 3000K-6000K color temperature is optional, the modular design is convenient for installation and maintenance, the flexible bracket installation meets different installation angles, and it can also be used as a floodlight.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

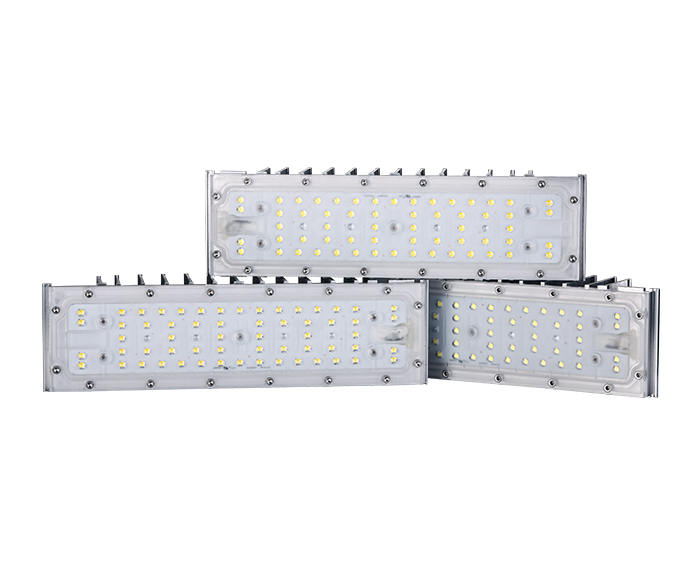

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-GCD40HB
LED BrandLumileds LUXEON® TX
Driver BrandMeanwell HLG series
Norminal Wattage40W
LED Module Quantity1 module
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110 lm/w
Lamp Rated Lumen output4400 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66, IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, GS, CB, UL, cUL, DLC, LM-79, LM80, SAA
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


FAQ

How to choose the high bay light?

Wattage and Lumens

Industrial and high bay led lights to have different wattages, but it is a lumen that you need to pay attention to. As LEDs become more efficient, they will use fewer wattages. You can easily choose one according to the height of the high bay lamps installed. Different heights have different wattages:


• 10-15 feet – This height is ideal for lamps from 10,000 to 15,000 lumens.

• 15-20 feet – This height is ideal for lamps from 16,000 to 20,000 lumens.

• 25-35 feet – For this height, a 33,000-lumen lamp is ideal.


spacing

The spacing between the lamps is also an important factor in the selection of industrial and mining lamps LED mining lamps. You can consider the three most common scenarios to find the best light for your space. These are listed below:


• At 15 feet high, a spacing of approximately 12 feet is essential for bright light. However, if you need normal light, you should leave 15 feet of space.

• At 20 feet high, you can use a spacing of 15 feet to produce bright light, or if you need normal light, you should use a spacing of 18 feet.

• At 30 feet high, you can leave a 20-foot spacing between lights for brighter light. However, for normal light, you can choose a spacing of 25 feet.


The number of lights

After you've determined the spacing between the lights, it's time to know how many lights you need. The number of lights depends on the available space. With the desired spacing and brightness quality, you can know the number of lights needed for a particular space. You can also create a layout to calculate.


Lamp type

High bay lamps are available in a variety of shapes. We offer round lights (now known as UFO high bay lights) and longer large lights (called LED linear bay lights). Most people don't know that if hung a few feet high, the circular lights can disperse the lights very well. About 15 feet above, we always recommend a circle. They are easier to install. In areas with aisles, linear lights become ideal. At lower altitudes, you can opt for wide-angle linear mining lamps.
