LED High Bay Light

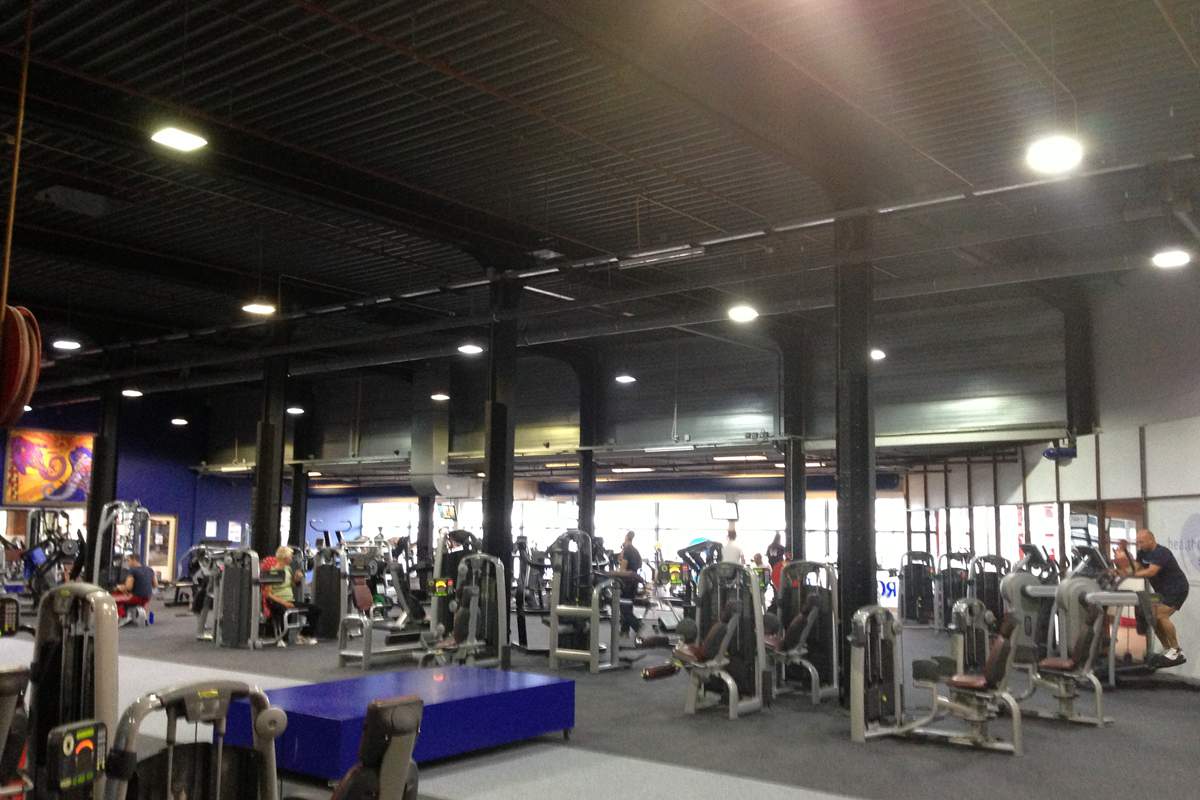

The high bay LED lighting project for a gym in the Netherlands was completed in 2010. This project adopted 60W HB series LED high bay lighting fixtures to replace 200W old HPS lamps. Because of the high efficacy of 155lm/W, our HB series LED high bay lights greatly improved the lighting condition of this gymnasium. What's more, high bay LED lamps are safer and more environmentally friendly than old HPS lights. The whole power range from 40W to 360W is certified by CE, RoHS, LM-79, LM-80, ISO 9001, and ISO 14001.

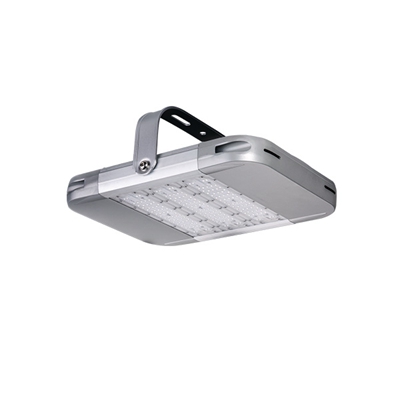

Product: 60W LED High Bay Light
Model No.: ZGSM-GCD60H6B
LED: Lumileds 3030
Driver: Meanwell
CCT: 4000K
Optics: 110 degrees
QTY: 200 Units
| Model | ZGSM-GCD60H6B |
| LED Brand | Lumileds LUXEON 3030/5050 |
| Driver Brand | Meanwell HLG series |
| Normal Wattage | 60W |
| LED Module Quantity | 1 module |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 125-155 lm/w |
| Lamp Rated Lumen output | 7500-9300 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K, or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Stretching Aluminum |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE, ROHS, LM80 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
Installation Manual_HighBay&FloodLight&TunnelLight_HB.pdf
Data Sheet_HighBay&Flood&TunnelLight_HB.pdf
 |  |  |
| 60W Modular Design Warehouse LED Lighting | 300W LED Bay Lights | 200W LED UFO Design High Bay Lights |
 |  |  |
| 80w Modular Design LED Suspend Bay Light | 120W LED High Bay Light | CE RoHS 200w UFO LED High Bay Light |
 |  |  |
| The Advantages Of Led High Bay Light | How To Choose A Good LED High Bay Light? | Why Does High Bay Light Use LED? |
 |  |  |

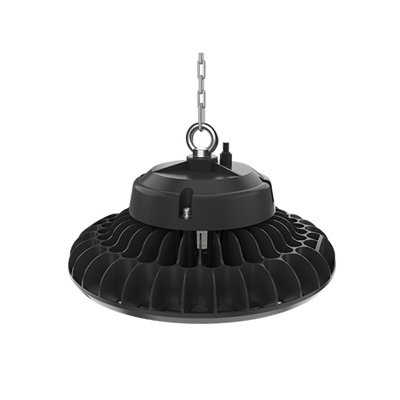

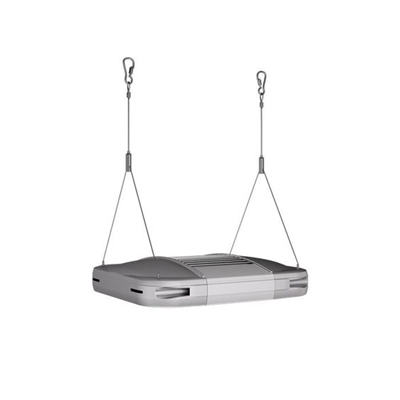

Depending on the application requirements, high bay lights can be hung or mounted in a variety of ways. Suspending the fixtures from the ceiling by a cable, chain, or other mechanism is the most popular and easiest installation option. A v-hook or pendant hook is usually linked to the backside of the fixture, to which the chain or cable is connected.

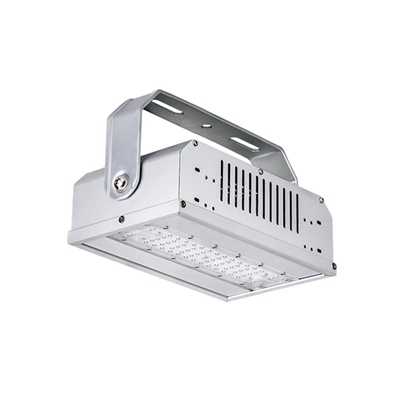

Direct mounting, which can be done with either a surface mount or a yoke mount, is another popular method. Surface mounting has the smallest profile and is popular for level ceilings that do not require the fixture to be adjusted in any way. Yoke mounting is similar to yoke mounting, however it allows for adjustments for angled ceilings.
LED lights have a mild dimming effect and do not flicker. LEDs also have the ability to turn on instantly in any setting and under any weather conditions. Fluorescent or compact fluorescent lights (CFLs), on the other hand, are not dimmable and frequently flicker.
In the above quiz, you'll also find inside information about various LED light advantages. As a result, LED is clearly superior to fluorescent and CFL lighting.
Yes, our H Series LED High Bay Light could be used for both indoor lighting and outdoor lighting. IP66 waterproof design makes it no need to worry about the rain. PC lenses of different beam angles could meet the lighting requirements of different lighting areas.
