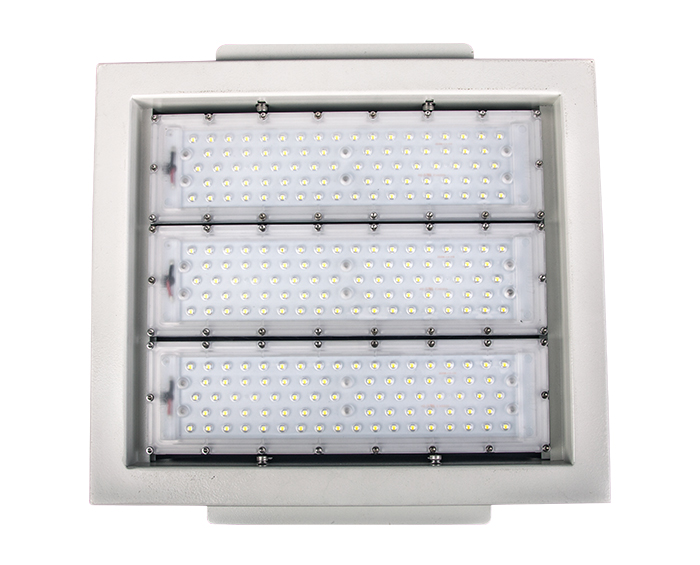

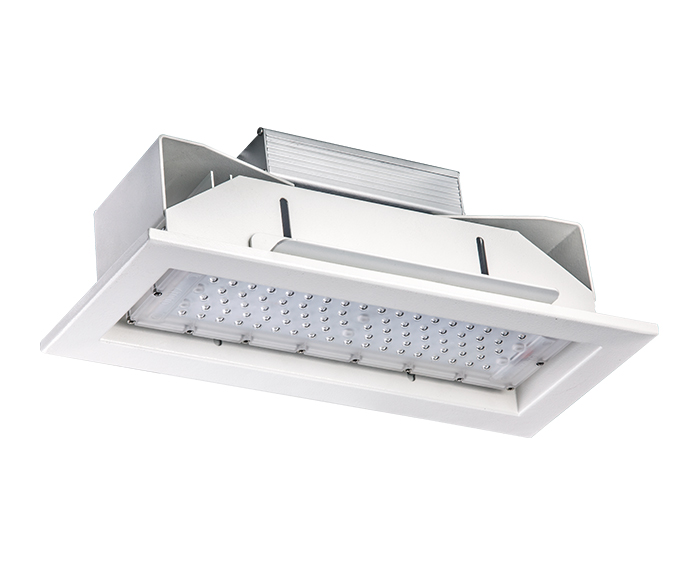

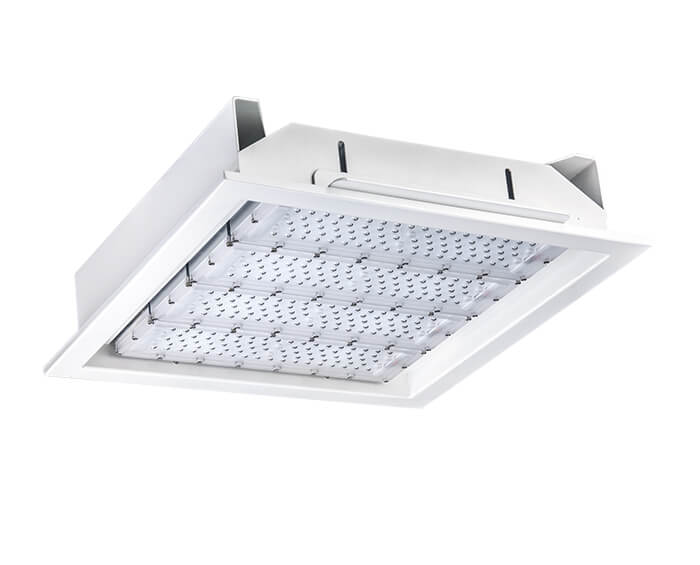

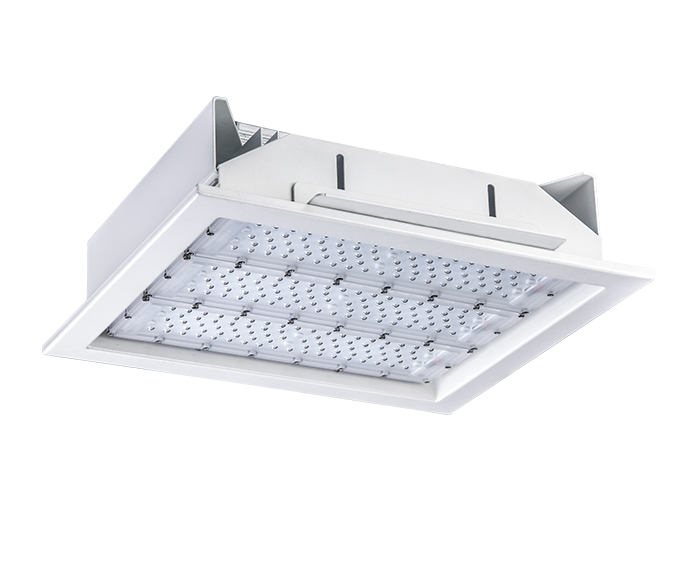

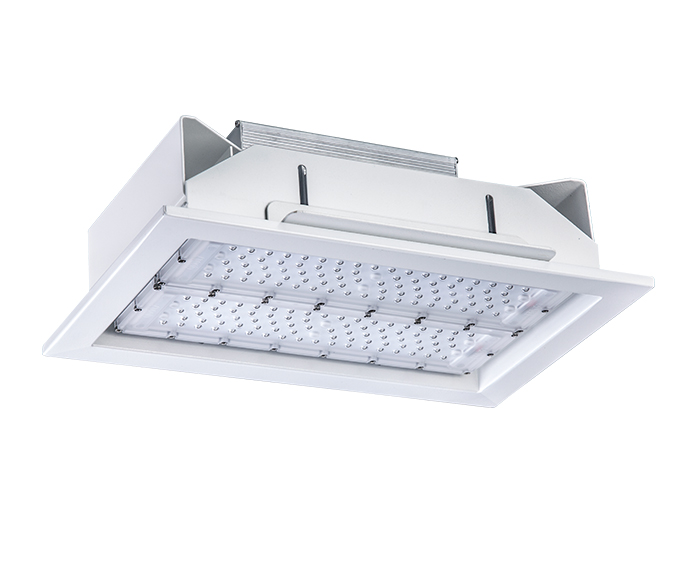

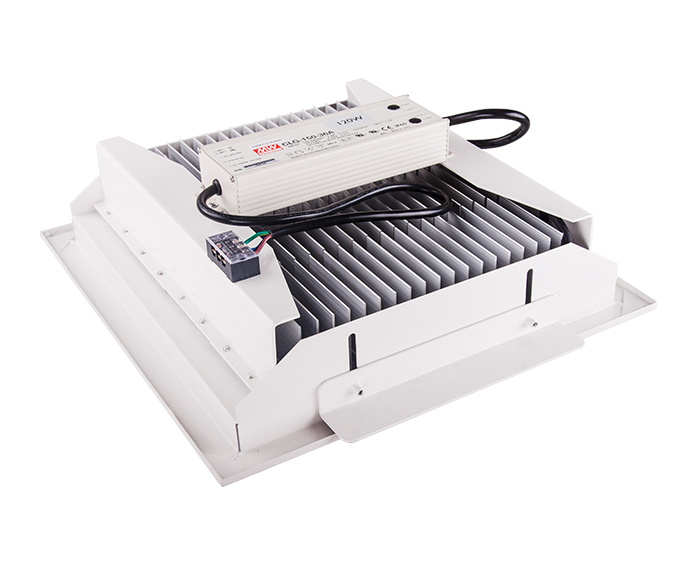

160w Recessed petrol pump canopy lights

Series A4 LED Gas Station Light

Model:

ZGSM-QD160A4

Applications:

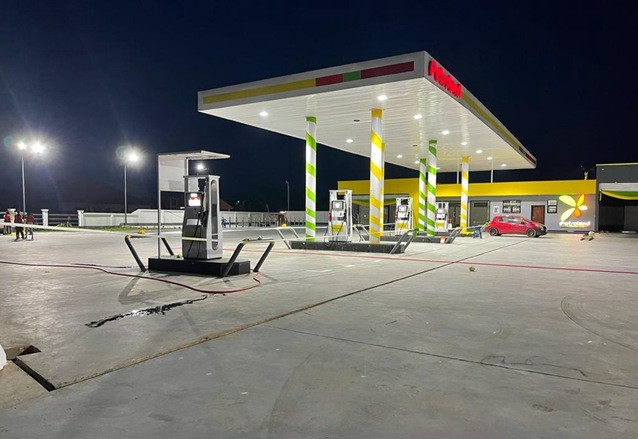

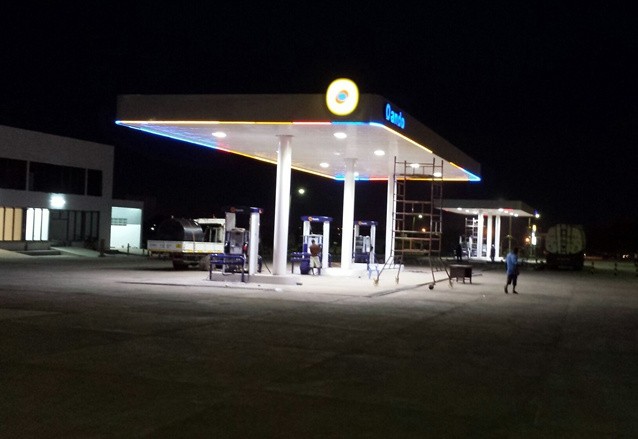

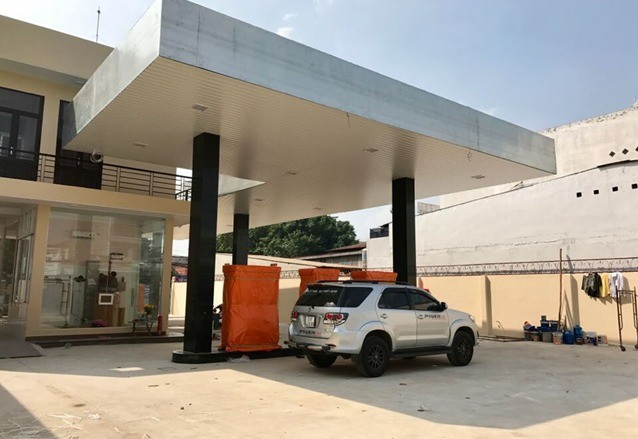

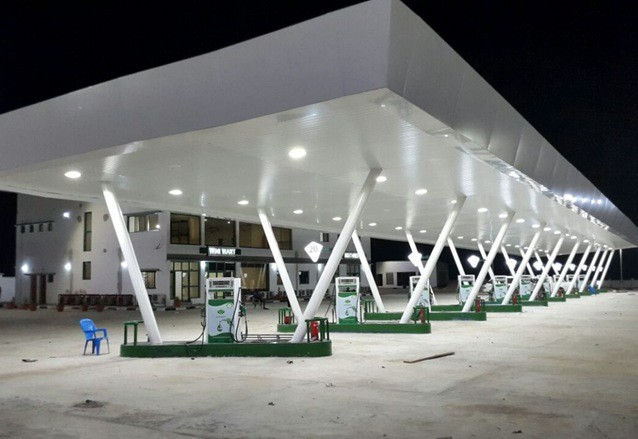

Gas station | Toll station | Petrol station


PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~200W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

3. Modular design for easy installation, replacement and maintenance.

4. High Lumen output up to 140lm/ w with high quality LED chips.

5. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

6. Designed to last at least 100,.000 hours at L70.

7. Multiple lighting distributions are available.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-QD160A4
LED BrandLumileds LUXEON 3030

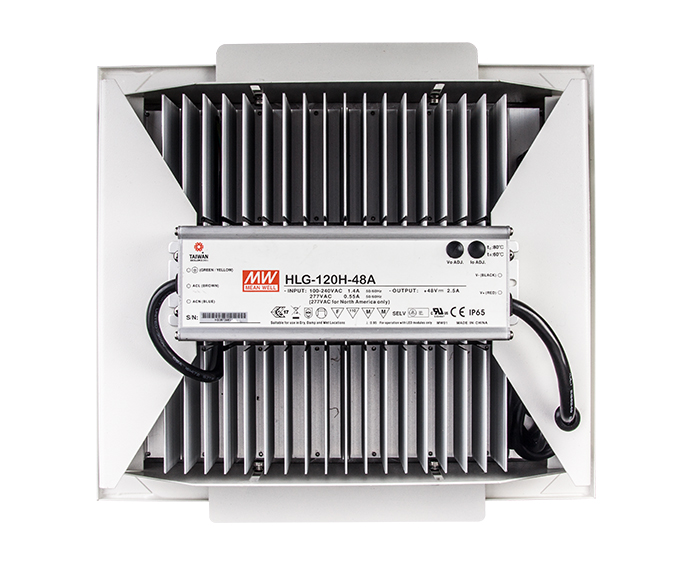

Driver BrandMeanwell HLG series
Norminal Wattage160W
LED Module Quantity4 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140lm/w
Lamp Rated Lumen output22400lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP65 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

Fixture Dimension430X400X130 mm
Fixture Weight8.4 kg
Packing Dimension455X455X195mm
Packing Weight10.4 kg
