Gas Station LED Canopy Light
Series H5 Gas Station LED Canopy Light
Model:
ZGSM-QD100H5
Applications：

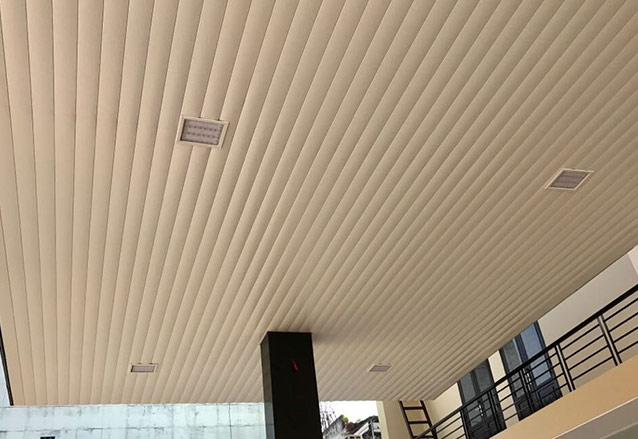

Gas station | Toll station | Petrol station
led canopy light, led gas station canopy lights, Canopy Light Fixture, exterior canopy lighting, recessed canopy lighting
led canopy light, led gas station canopy lights, Canopy Light Fixture, exterior canopy lighting, recessed canopy lighting
1. Wide power range: 40W~240W.
2. Special circuit design, single LED’s damage won't affect others' normal work.

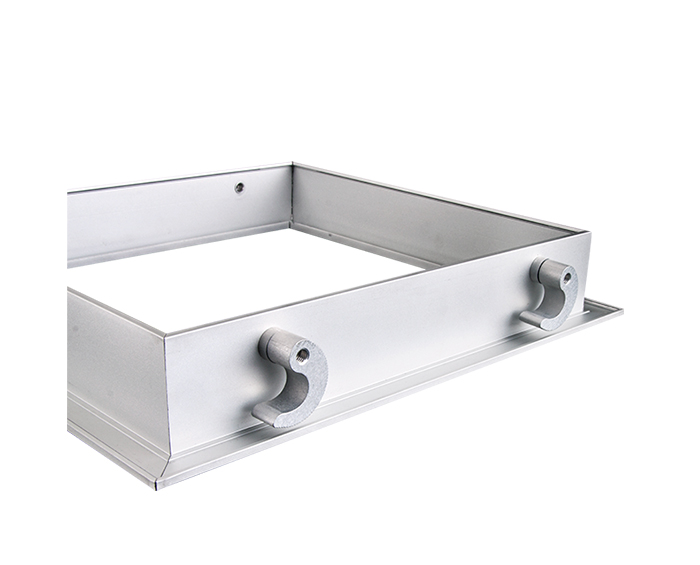

3. Modular design for easy installation, replacement and maintenance.
4. High Lumen output up to 165lm/ w with high quality LED chips.
5. ATEX Certified, available for explosive area.
6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.
7. Designed to last at least 100, 000 hours at L70.
8. Multiple lighting distributions are available.
led canopy light, led gas station canopy lights, Canopy Light Fixture, exterior canopy lighting, recessed canopy lighting
| Model | ZGSM-QD100H5 |
| LED Brand | Lumileds LUXEON 3030/5050 |

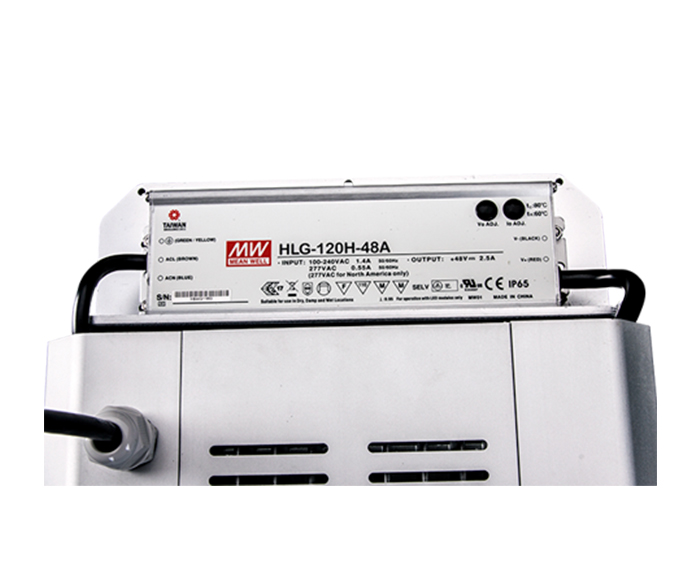

| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 100W |
| LED Module Quantity | 2 modules |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 130-160 lm/w |
| Lamp Rated Lumen output | 13000-16000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Stretching Aluminum |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE,ROHS,LM80,ATEX |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
led canopy light, led gas station canopy lights, Canopy Light Fixture, exterior canopy lighting, recessed canopy lighting
| Fixture Dimension | 304X316X120mm |
| Fixture Weight | 3.6kg /7.9 lbs |
| Packing Dimension | 355 x370x200mm |
| Packing Weight | 4.4 kg /9.7 lbs |
