IP66 LED Flood Light

Home  /  Products / LED Flood Light / IP66 LED Flood Light
  • Economical 360w IP66 Outdoor LED Floodlights
  • Economical 360w IP66 Outdoor LED Floodlights
  • Economical 360w IP66 Outdoor LED Floodlights
  • Economical 360w IP66 Outdoor LED Floodlights
  • Economical 360w IP66 Outdoor LED Floodlights

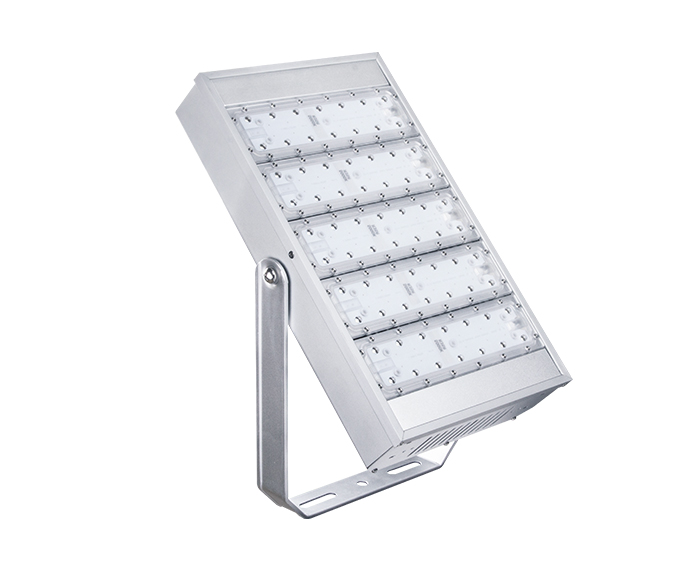

Economical 360w IP66 Outdoor LED Floodlights

A floodlight is an outdoor lighting device that projects high-output light to focus on objects or increase visibility in dark or low-light areas. The IP66 360W Outdoor LED Floodlights can be used in warehouses, workshops, garages, billboards, areas, etc.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-FGD360H6B
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage360W
LED Module Quantity6 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency125-155 lm/w
Lamp Rated Lumen output45000-55800 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60, 90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

How many lumens do I need for an outdoor floodlight?

Floodlights require 700 to 1300 lumens. The brighter the lights are, the more lumens they emit, and the more secure your space. Motion sensor flood lights require between 300 and 700 lumens. These lights have ranges, so brightness may vary.


Which is better, floodlights or spotlights?

Ultra-bright: If you want maximum brightness, floodlights are also a better choice. Even if you choose a wired connection on Spotlight, Floodlight is still 4.8 times brighter than Spotlight. Due to the extra brightness, the overall picture quality at night is better and brighter.
