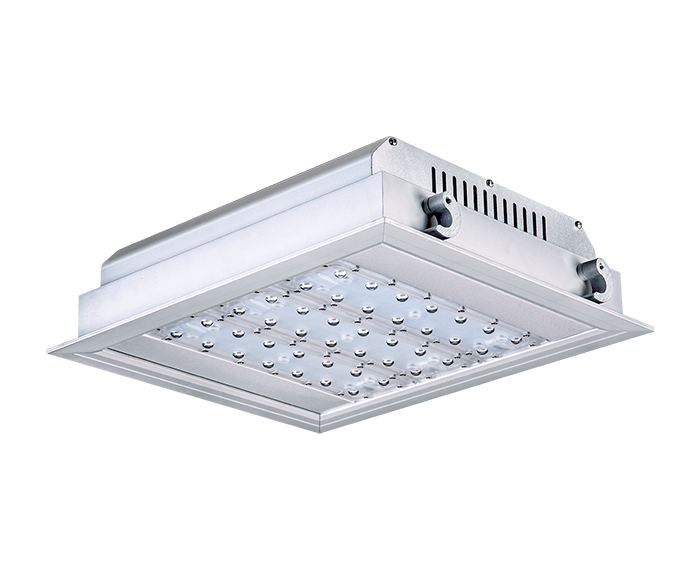

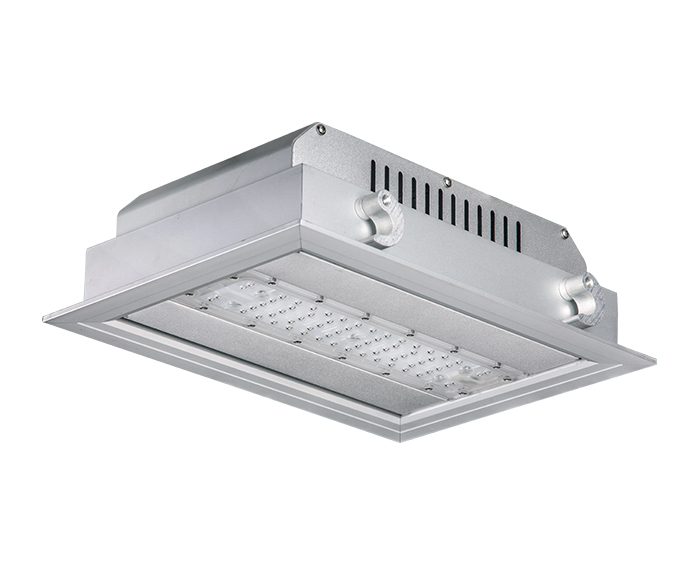

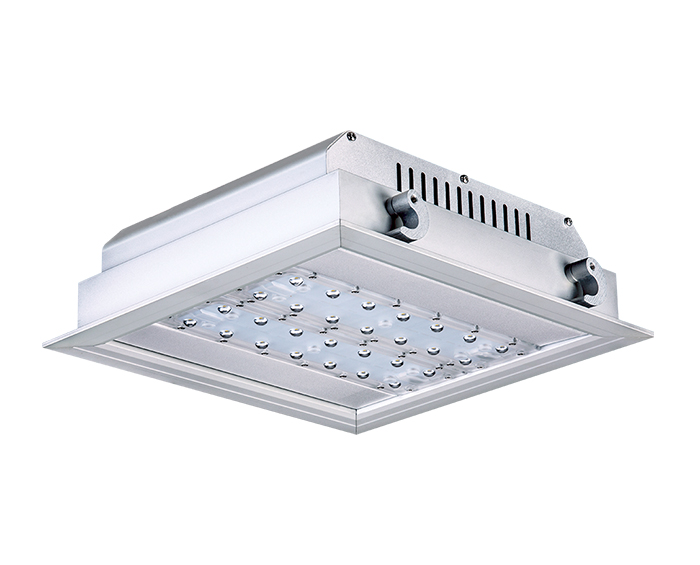

ATEX LED Gas Station Light

Home  /  Products / LED Gas Station Light / ATEX LED Gas Station Light
  • High efficiency 40w ATEX petrol pump canopy
  • High efficiency 40w ATEX petrol pump canopy
  • High efficiency 40w ATEX petrol pump canopy
  • High efficiency 40w ATEX petrol pump canopy
  • High efficiency 40w ATEX petrol pump canopy

High efficiency 40w ATEX petrol pump canopy

Series H4 LED Gas Station Light

Model:

ZGSM-QD40H4

Applications:

Gas station | Toll station | Petrol station


PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~240W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

3. Modular design for easy installation, replacement and maintenance.

4. High Lumen output up to 165lm/ w with high quality LED chips.

5. ATEX Certified, available for explosive area.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-QD40H4
LED BrandLumileds LUXEON 3030/5050

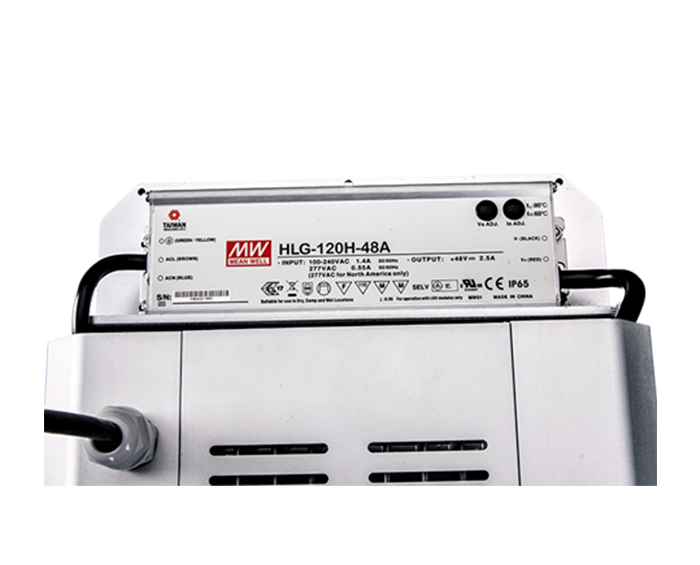

Driver BrandMeanwell HLG series
Norminal Wattage40W
LED Module Quantity1 module
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-165 lm/w
Lamp Rated Lumen output5600-6600 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,LM80,ATEX
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

Fixture Dimension231X316X120mm
Fixture Weight2.4kg / 5.3 lbs
Packing Dimension285 x370 x200 mm
Packing Weight3.1 kg /6.8 lbs
