All In One Solar Street Light Project in Thailand

The industrial park lighting project in Thailand was finished in 2016. It used more than 30 units of ZGSM PV2 series 30W all in one solar powered street lights. Each 30W all-in-one solar street light has 90pcs high efficacy Lumileds 3030 2D chip, so the lamp efficacy is as high as 145lm/W. The 300WH (27AH/11.1V) Lithium battery could support the integrated solar street light to work 26.5hous under energy-saving mode or 8 hours under full power. Each solar street light could choose a PIR sensor or microwave sensor, the all-in-one solar LED light usually works under energy-saving mode(default 20%) and it will turn to 100% automatically when sensing persons coming. This project helps to save power of more than 60% than before.

Project details

Product: 30W All In One Solar Street Light

Model No.: ZGSM-PV1003027

LED: Lumileds

Solar Panel: Monocrystal 100W /18V

Battery: 27AH /11.1V Lithium Battery

Sensor: Human infrared induction

CCT: 5700K

Optics: Type 1S

Installation Height: 5m

QTY: 30 Units

Video

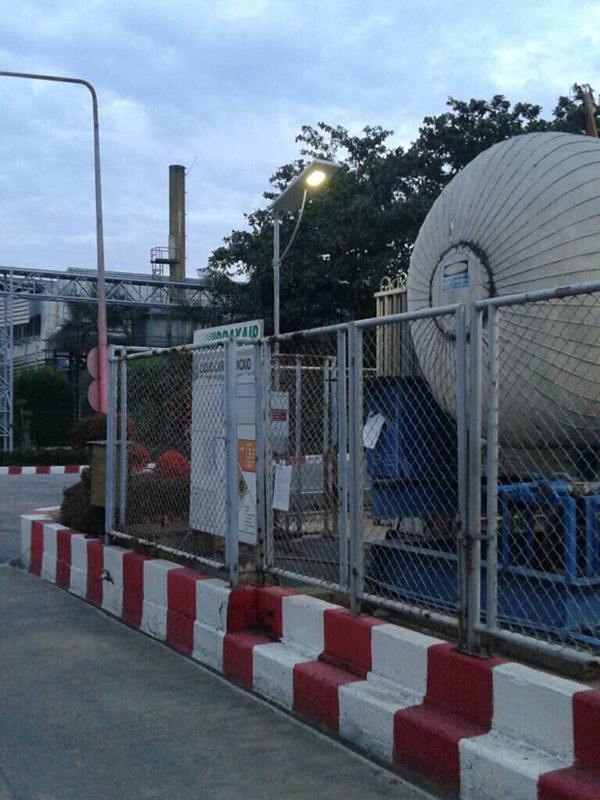

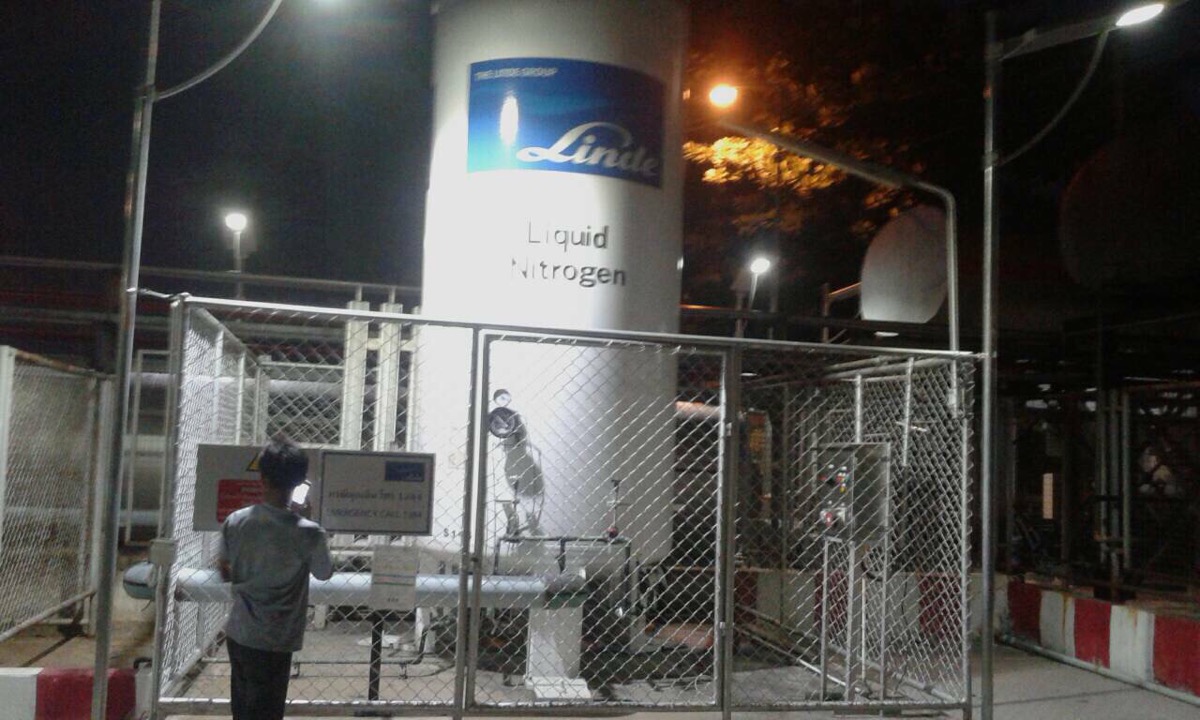

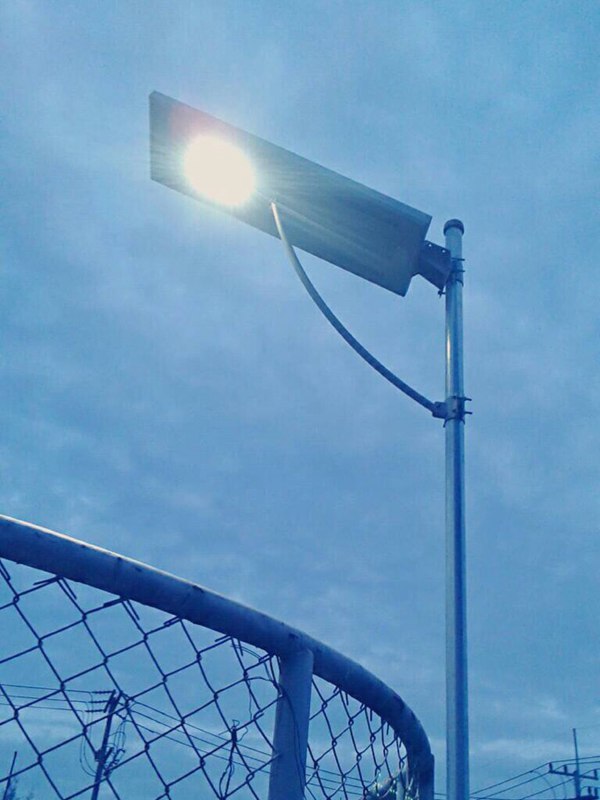

Project Photos

Specification

Download

Installation Manual_AIOSolarStreetLight_PV3.pdf

Data Sheet_AIOSolarStreetLight_PV2_11.1V.pdf
