IP66 LED Flood Light

Home  /  Products / LED Flood Light / IP66 LED Flood Light
  • CE UL approved 80w IP66 LED Outdoor Flood Light
  • CE UL approved 80w IP66 LED Outdoor Flood Light
  • CE UL approved 80w IP66 LED Outdoor Flood Light
  • CE UL approved 80w IP66 LED Outdoor Flood Light
  • CE UL approved 80w IP66 LED Outdoor Flood Light

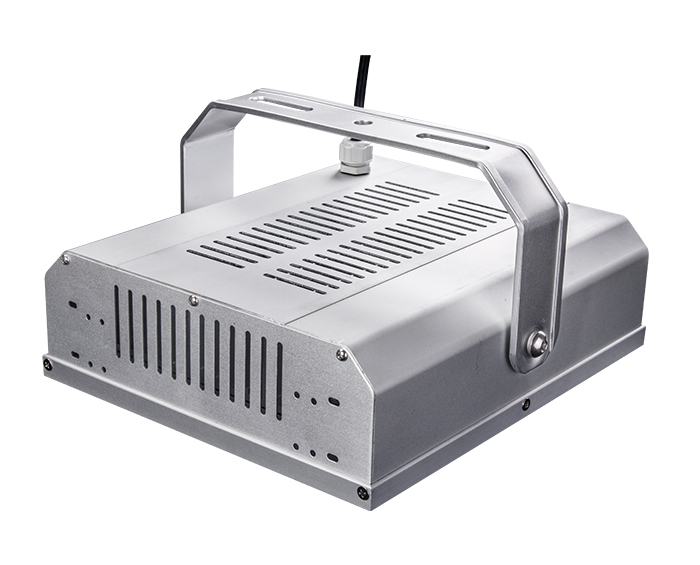

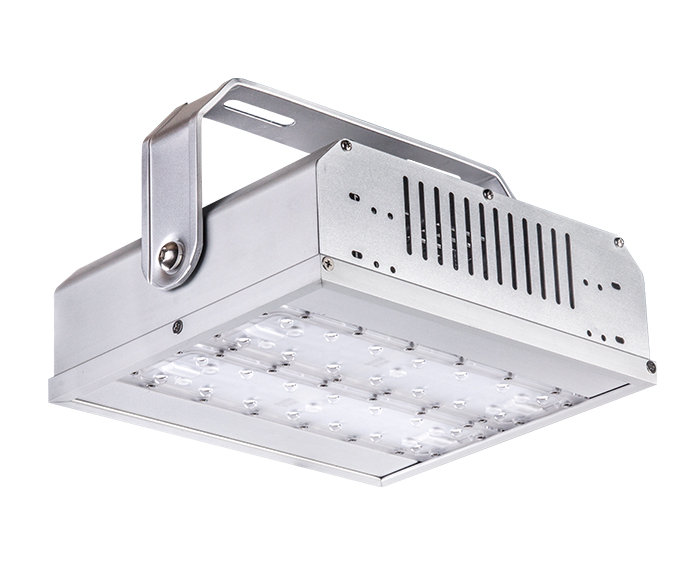

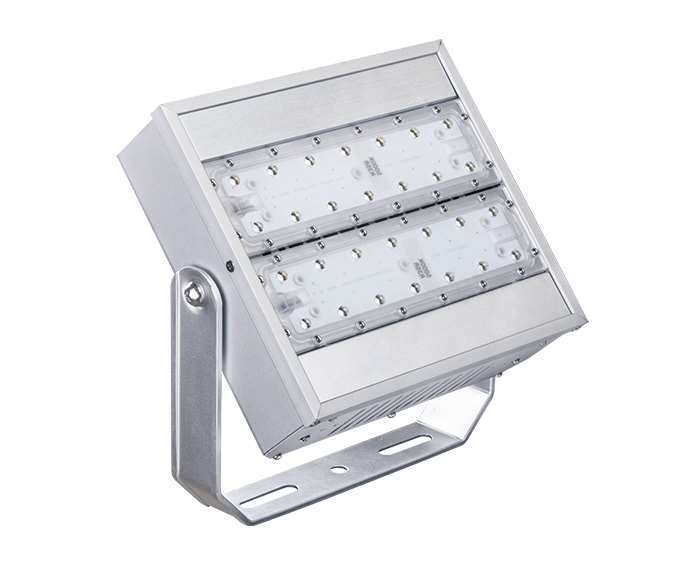

CE UL approved 80w IP66 LED Outdoor Flood Light

The most important thing in the use of outdoor luminaires is waterproof, and the IP66 waterproof rating ensures that your LED Outdoor Flood Light does not succumb to the elements. Has a variety of lighting opening angles, Illuminate those dark spaces with our ultra-bright LED floodlights. Stylish appearance and excellent performance.


PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

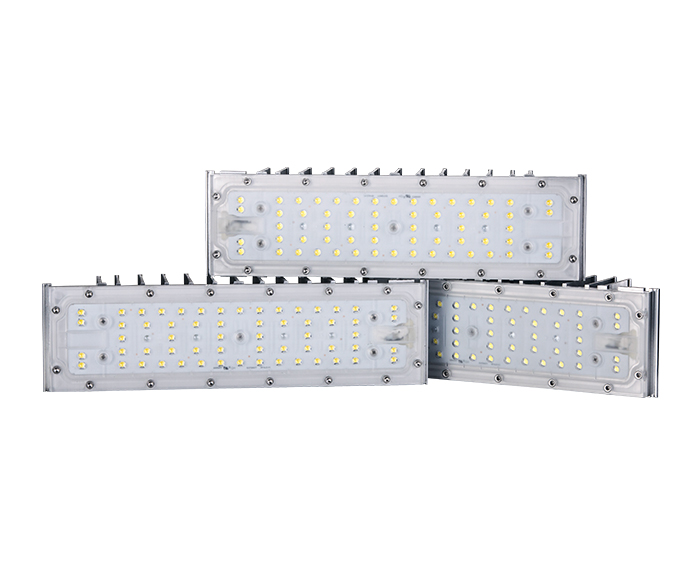

3. Modular design for easy installation, replacement and maintenance.

4.High Lumen output up to 165lm/ w with high quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-FGD80HB
LED BrandLumileds LUXEON® TX
Driver BrandMeanwell HLG series
Normal Wattage80W
LED Module Quantity2 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110 lm/w
Lamp Rated Lumen output8800 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

what is ip66 in led lights?

For IP66-certified luminaires, such as impermeable LED luminaires, this means that the luminaire is dust-proof, there will be no foreign objects ingressing for 2 to 8 hours, and the luminaire is resistant to rough seas or strong water sprays.


What is the IP rating of an LED lamp?

The IP rating of an LED lamp is a measure of how well the LED lamp protects liquid (water) and solid (dirt, dust, etc.) objects. There are two numbers in the IP rating, the first number (0 to 6) is the reliable IP rating. It shows resistance to solid objects.
