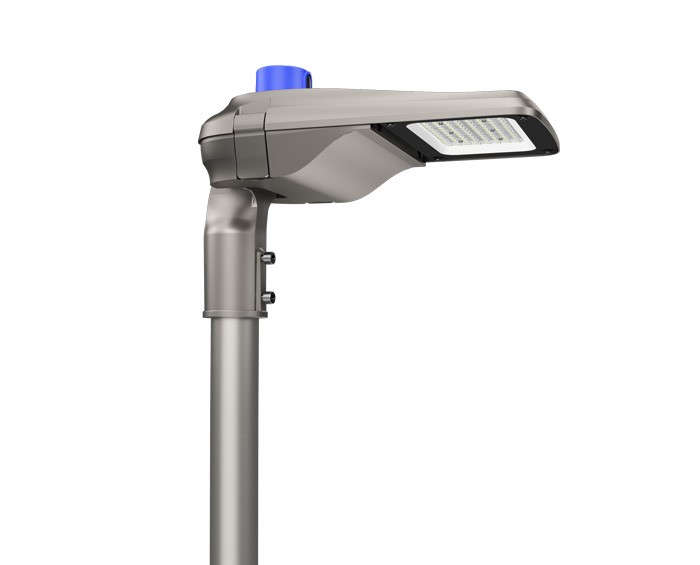

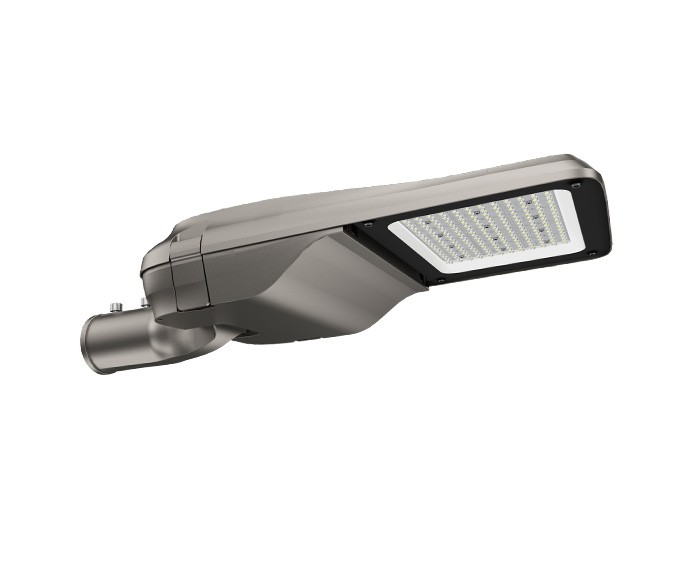

High cost performance LED Street Light
The VLCA series LED city street lights have a simple and elegant appearance, with 4 sizes, supporting horizontal and vertical installation, power of 30-240W, luminous efficiency of up to 176lm/W, and multiple light distribution options to meet different lighting needs and installation environments. The whole lamp is composed of high-pressure die-cast aluminum and UV-treated tempered glass. The spring latch design allows the lamp body to be disassembled without tools, making it easy to replace and upgrade in the later maintenance. The standard knife switch can automatically cut off the power supply to ensure the personal safety of the installers during the maintenance process. The lamps can be equipped with 1-10V/DALI dimming, NEMA, Zhaga, photoelectric sensors, motion sensors, Zigbee/Lora sockets for intelligent control systems or future upgrades.
4 sizes with wide power range 30W-240W
High luminous efficacy up to 176 lm/W
High quality LED chips and high MTBF LED driver

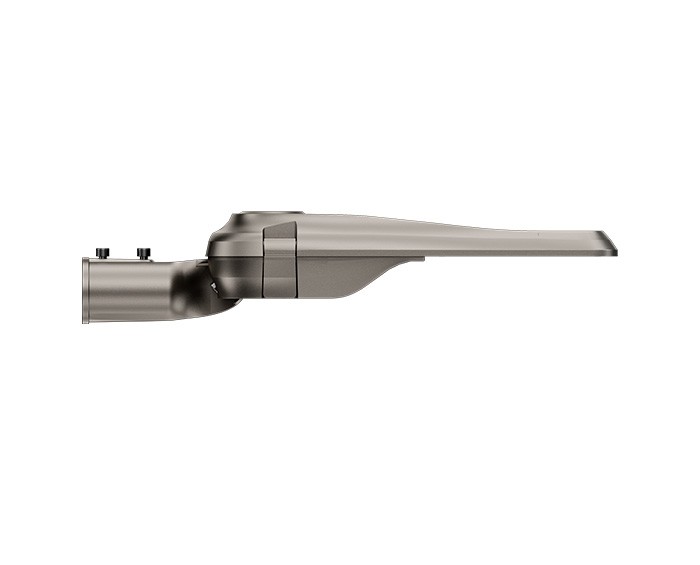

Both horizontal and vertical installation are supported

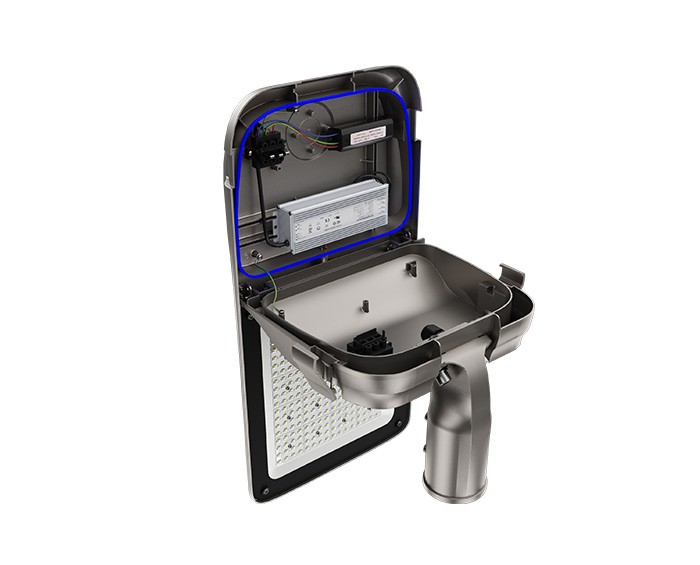

Tool-less design for easy maintenance
Unique spring latch pin design for easy replacement
Class I and Class II ENEC certified
Can be with NEMA socket (3/5/7pins) and ZHAGA socket for smart control
Photocell, motion sensor, NTC, or OLC as per request
| Series No | Series ALCA |
| Power | 30W, 40W, 50W, 60W, 80W, 100W, 120W, 150W, 180W, 200W, 240W |
| Efficacy | 140-176lm/W |
| Input Voltage | 100-240/277 VAC, 50 / 60 Hz |
| Power Factor | >0.95 |
| Surge Protection | 10KV (Default) / 20KV (available on request) with IEC61643-11 |
| IP Rating | IP66 |
| IK Rating | IK09 |
| CCT | 2700K, 3000K, 4000K, 5000K, 5700K, 6500K |
| CRI | Ra>70 |
| Operating Temperature | -40°C ~ +50°C, 10%～90%RH |
| Beam Angle | Type II, Type III, Asymmetric for pedestrian crossings |
| Mounting Option | Side entry or Vertical pole mounted |
| Warranty | 5 Years |
| Certification | CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IEC62471, IEC60068-2-6, IEC61643-11 |
| Control | NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, NTC, OLC, Solar Compatible, Smart Controller |
When selecting city street lights, the first consideration is whether the fixture's appearance blends well with the surrounding environment. Secondly, consider the specific requirements for brightness (lumens), color temperature, and light distribution at the location, as well as factors such as energy efficiency, durability, smart features, pole height, local regulations, and budget. ZGSM offers free lighting simulations. Please contact us with any questions about LED lighting.
LED Street Lights
Incandescent Street Light.
Halogen Street Light.
Fluorescent Street Light.
Compact Fluorescent CFL Street Light.
Mercury Vapor Street Lights.
HPS High-Pressure Sodium Street Light.
LPS Low Pressure Sodium Street Light.
Metal Halide Street Light.
