Series Lume LED light Retrofit Kits

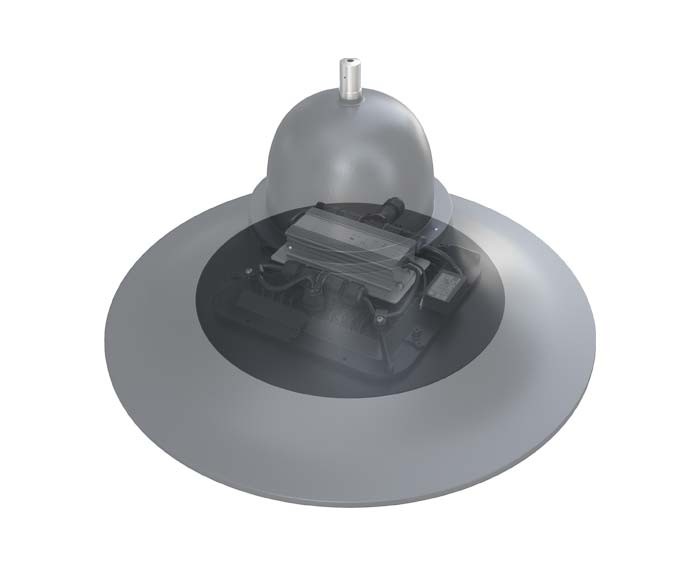

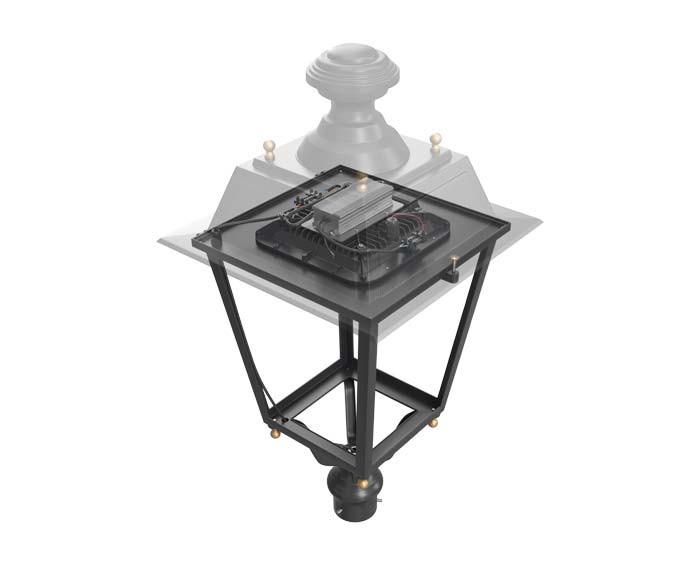

Lume Series LED light Retrofit Kits make it easy to upgrade outdated HID or fluorescent fixtures, while preserving the original look of historic lanterns and decorative lamps in memorial and heritage areas. These retrofit kits allow users to take advantage of the energy-saving and low-maintenance benefits of LEDs, making them an ideal choice for industrial or commercial fixtures. They have a long service life, low maintenance costs, and lower energy consumption. Additionally, LED light Retrofit Kits are available in a variety of color temperatures (CCT) and light distribution options to suit your needs. The power of this series can reach 100W, and it also provides customizable frame design to meet customers' unique needs.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~100W

2. High luminaire efficiency up to 185lm/w

3. Class I, and Class II are optional

4. IP66&IK08 with excellent water resistance

5. 10KV surge protection device

6. Suitable for -40°C to +50°C environments

7. Various CCTs and light distributions are available

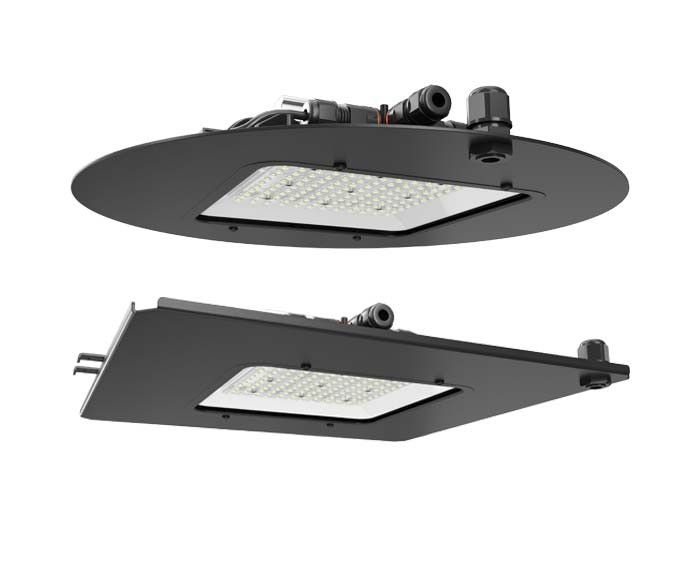

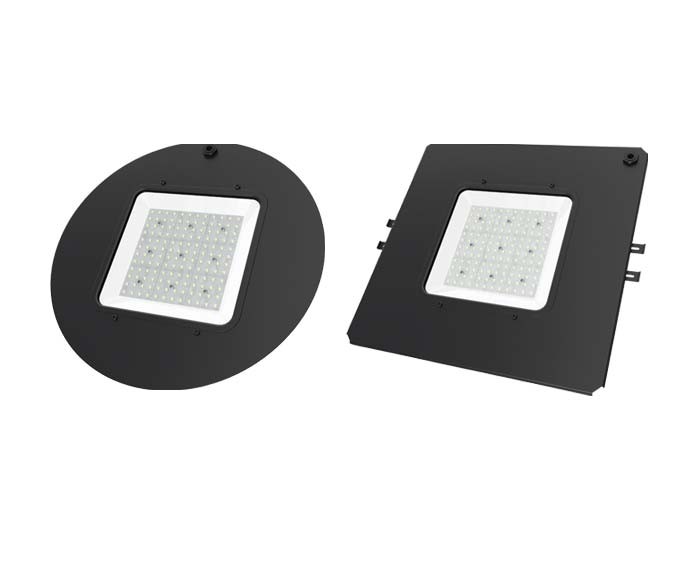

8. Available with square or round type, support customization

9. With gland, adjustable bracket and cable holes for easy installation

Specifications

Model	Series Lume
Power	40W-100W
Efficacy	150-180lm/w
Input Voltage	AC 100-240V /277V \| 50 /60Hz
LED	Lumileds /Other brands on request
Driver	Inventronics /Other brands on request
Power Factor	>0.95
THD	<15
SPD	10KV (Default) / 20KV (available on request)
Optics	Type II, Type III, Asymmetric for pedestrian crossings
CRI	Ra>70 (Default) / Ra>80
CCT	1800K, 2200K, 2700K, 3000K, 4000K, 5000K, 5700K, 6500K
Material	High pressure die-cast aluminum, Tempered glass, UV-resistant polycarbonate
Housing Color	Black (Default) /Other Colors on request
Working Environment	-40°C ~ +50°C, 10%～90%RH
Lifespan L70 at 25 °C	>100, 000 h
Mounting Type	Side entry or Vertical pole mounted
Dimmable	1-10V Dimming (Default) /Timer Dimming /DALI Dimming
Protection Class	Class I (Default) /Class II

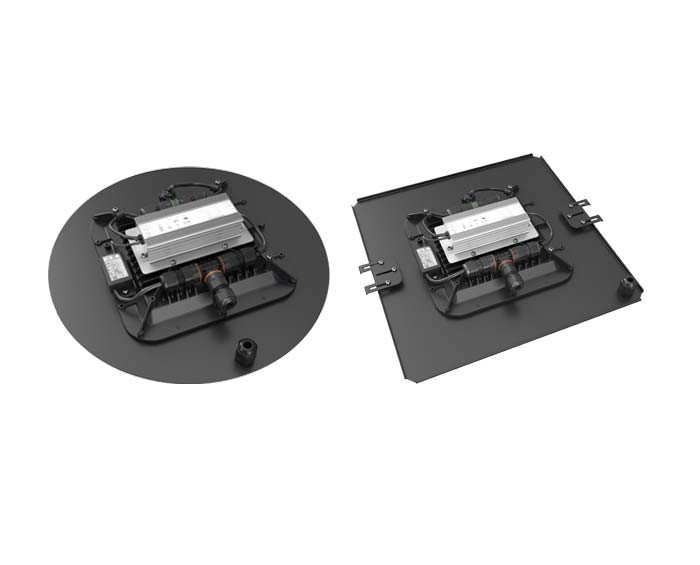

Mounting Plate	Round (Φ 400mm) / Square type (400 x 400mm), Shape and Size are customizable

FAQ

What are LED light Retrofit Kits?

An LED retrofit kit is a modern lighting solution designed to upgrade existing fixtures with energy-efficient LED technology. These kits allow you to enhance your lighting system without replacing the entire fixture, making them a cost-effective and sustainable choice for both residential and commercial applications.

How do LED retrofit kits work?

LED retrofits essentially convert existing fixtures (whether CFL, fluorescent, incandescent, etc.) to LED lighting. This allows you to upgrade your existing fixtures to LED without changing the original design.
