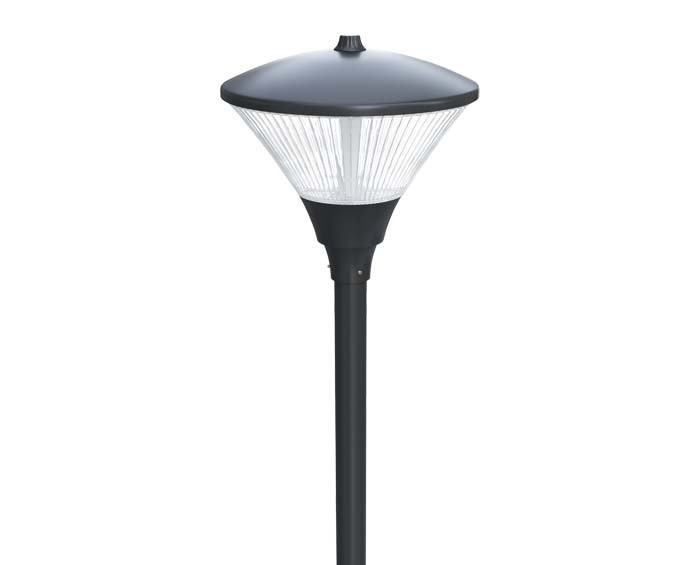

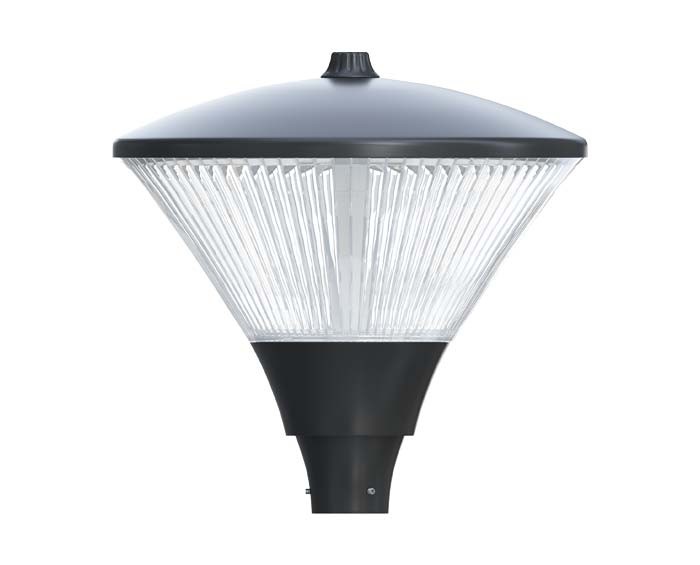

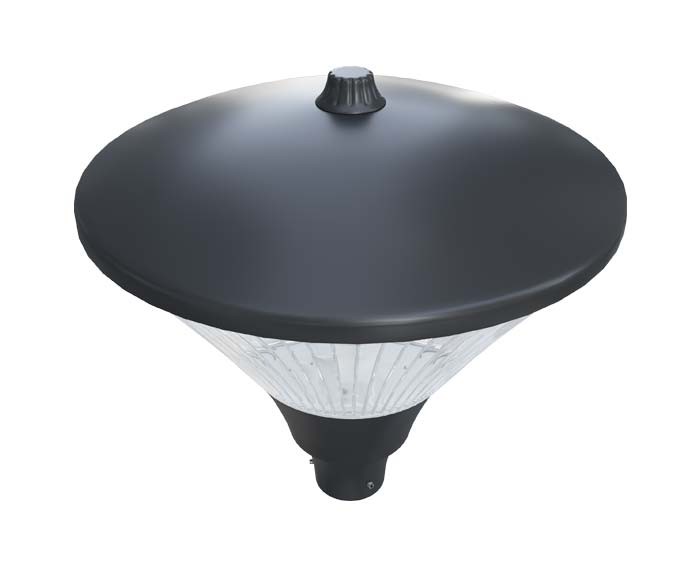

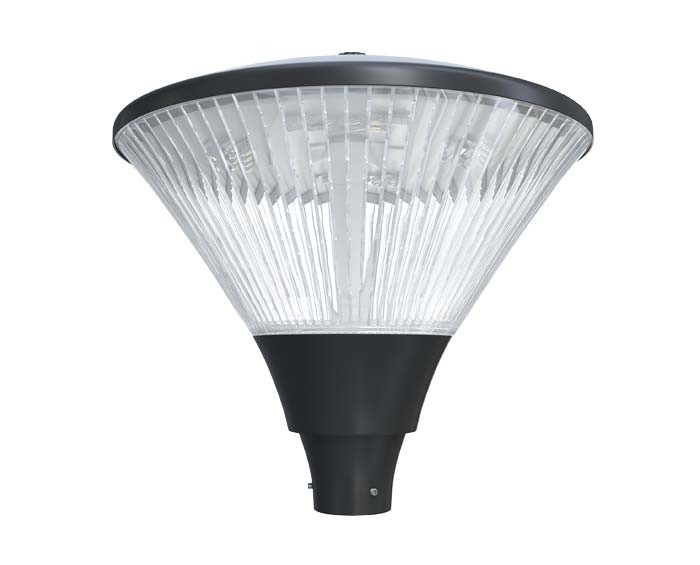

Series ZG-6116 Post Top Street Lights

The ZG-6116 Post Top Street Lights are both decorative and ultra-bright, and its professional optical distribution provides extremely high visibility and uniformity. From retro street lights to more modern style street lights, our LED Post Top Street Lights are made of impact-resistant, UV-resistant and weather-resistant materials for durability. The product can be directly mounted on a 60mm diameter light pole, and mounting options for 76mm diameter light poles are also available. These Post Top Street Lights are designed to enhance the visibility and atmosphere of outdoor areas such as streets, paths and public places. The products are versatile and suitable for various environments and provide high-quality, long-lasting and durable lighting.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 30W~70W

2. High luminaire efficiency up to 120lm/w

3. Full die-casting aluminum housing(ADC12)

4. Class I, and Class II are optional

5. IP66&IK08

6. Type V Short

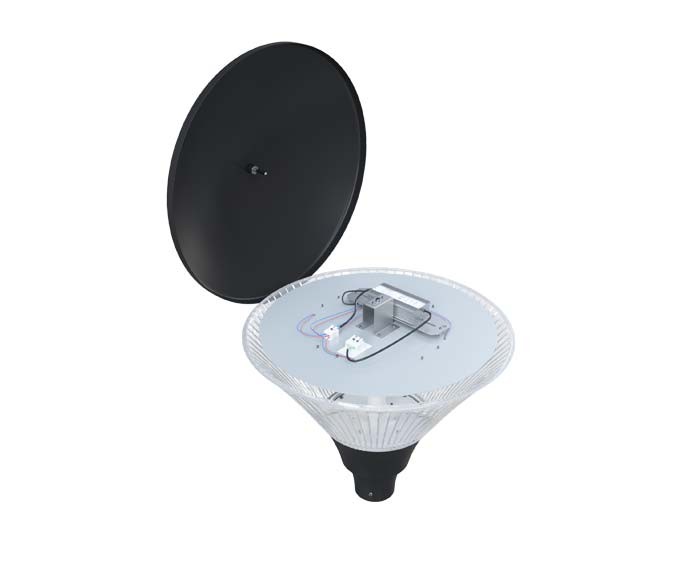

7. Driver and SPD are easy to take off for replacement

8. 1-10V Dimming (Default) /Timer Dimming

9. Surge Protection: Differential mode 6 kV, Common mode 10 kV

Specifications

Model	Series ZG-6116
Power	30W, 40W, 50W, 60W, 70W
Efficacy	120lm/W
Input Voltage	100-240/277 VAC, 50 / 60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request)
IP Rating	IP66
IK Rating	IK08
Beam Angle	Type V
Mounting Option	Post Top
Warranty	5 Years
Certification	CE, ROHS, IP66, IK08, LM80, TM-21, IEC62471

FAQ

What is the distance between Post Top Street Lights?

For average road widths of about 5-7m with pole heights of 5-7m, the installation distance should be 10-25m; For average road widths of 8-12m with pole heights of 8-12m, the installation distance should be 30-40m; For main traffic arteries about 20m wide with pole heights of 12-14m, the spacing should be at least 40m.

What are those pole lights called?

The lights attached to poles are referred to as pole lights, streetlights, floodlights, or area lights. The specific name depends on the type of fixture mounted on the pole. Streetlights illuminate roads, while floodlights provide broad lighting for parking lots and security applications.
