Recessed LED Canopy Light

Home  /  Products / LED Canopy Light / Recessed LED Canopy Light
  • 40w Recessed canopy lights led
  • 40w Recessed canopy lights led
  • 40w Recessed canopy lights led
  • 40w Recessed canopy lights led
  • 40w Recessed canopy lights led

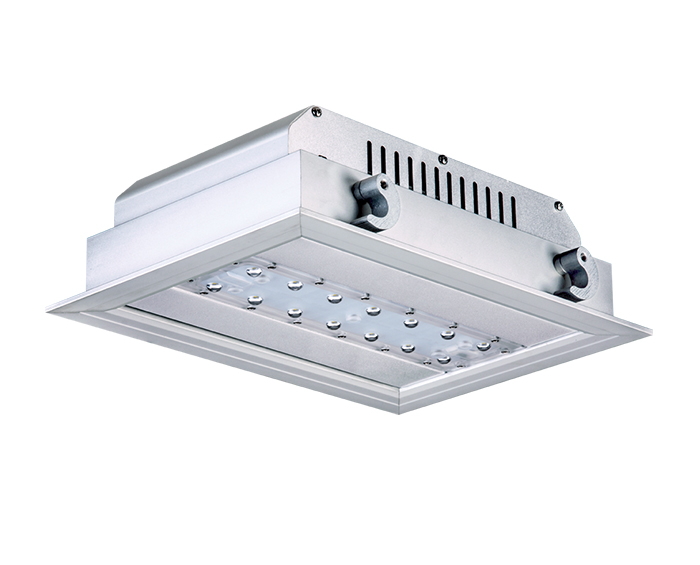

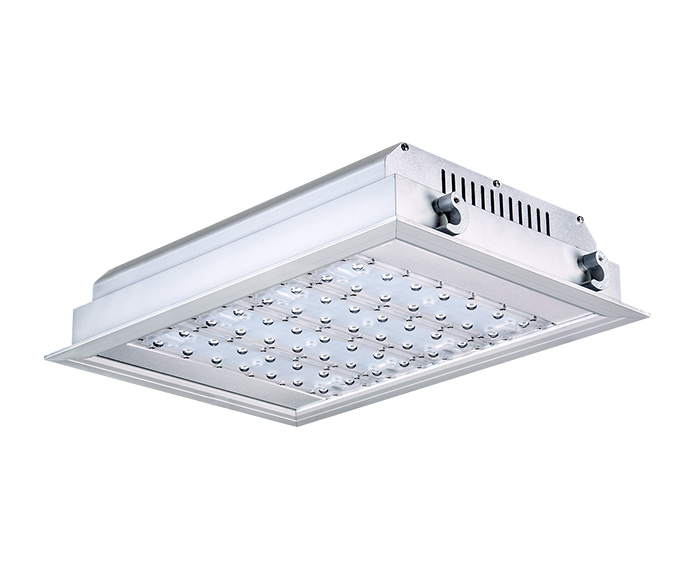

40w Recessed canopy lights led

The LED canopy light features an understated design and is constructed from durable, die-cast, weather-resistant aluminum, making it ideal for outdoor use. Supporting direct ceiling mounting, the LED canopy light is perfect for garages or patio walkways.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~200W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

3. Modular design for easy installation, replacement and maintenance.

4. High Lumen output up to 140lm/ w with high quality LED chips.

5. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

6. Designed to last at least 100,.000 hours at L70.

7. Multiple lighting distributions are available.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-QD40A4
LED BrandLumileds LUXEON 3030
Driver BrandMeanwell HLG series
Norminal Wattage40W
LED Module Quantity1 module
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140 lm/w
Lamp Rated Lumen output5600lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP65 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsWhite
Warranty7 years

FAQ

Are all LED canopy lights recessed?

While most LED canopy lights are recessed mounted, there are also some styles that are non-recessed mount LED canopies. These can be used for outdoor lighting or beam lighting. Depending on your lighting needs, you can choose between a top light or a recessed top light. Some Canopy lights are recessed, so knowing what your favorite design looks like will make it easier for you to choose the right fixture for your space.

Where are canopy lights used?

LED Canopy Lights can be used in multiple areas. For example, gas stations, parking structures, storage areas, walkways, security entryways, exterior canopies, and more.

Canopy Lighting is applied to depict exterior lighting and interior lighting that is usually suspension, recessed, or surface installed to a soffit structural ceiling overhang, etc. This kind of lighting is ordinarily used to offer illumination to outdoor areas for pedestrians and vehicles. There are extensive mounted types, fixture sizes, and shapes.
