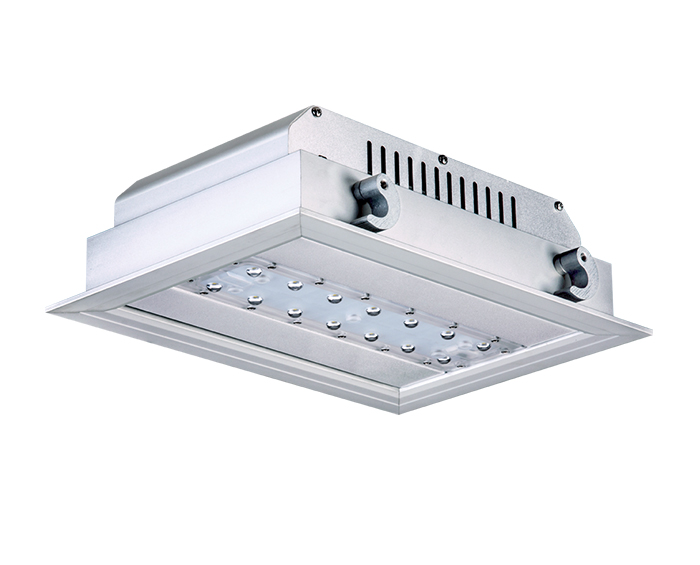

Gas Station LED Canopy Light
Series H Gas station lights
Model:
ZGSM-QD40H
Applications：
Gas station | Toll station | Petrol station
Gas station lights, led gas station light, led canopy light for gas station, led gas station canopy lights, gas station light fixtures
gas station lights, led gas station light, led canopy light for gas station, led gas station canopy lights, gas station light fixtures
1. Wide power range: 40W~240W.
2. Special circuit design, single LED’s damage won't affect others' normal work.
3. Modular design for easy installation, replacement, and maintenance.
4. High Lumen output up to 165lm/ w with high-quality LED chips.
5. ATEX Certified, available for the explosive area.
6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.
7. Designed to last at least 100, 000 hours at L70.
8. Multiple lighting distributions are available.
Gas station lights, led gas station light, led canopy light for gas station, led gas station canopy lights, gas station light fixtures
| Model | ZGSM-QD40H |
| LED Brand | Lumileds LUXEON® TX |

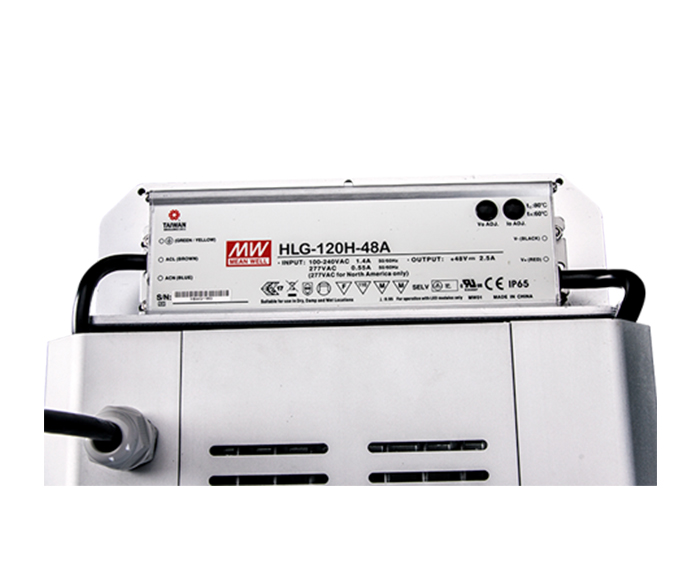

| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 40W |
| LED Module Quantity | 1 module |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >110 lm/w |
| Lamp Rated Lumen output | 4400 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Stretching Aluminum |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE,ROHS,GS,CB,LM80,SAA,ATEX |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
Gas station lights, led gas station light, led canopy light for gas station, led gas station canopy lights, gas station light fixtures
| Fixture Dimension | 231X316X120mm |
| Fixture Weight | 2.4kg |
| Packing Dimension | 285 x370 x200 mm |
| Packing Weight | 3.1 kg |
