  • CE 200w Gas Station LED canopy fixture
  • CE 200w Gas Station LED canopy fixture
  • CE 200w Gas Station LED canopy fixture
  • CE 200w Gas Station LED canopy fixture
  • CE 200w Gas Station LED canopy fixture

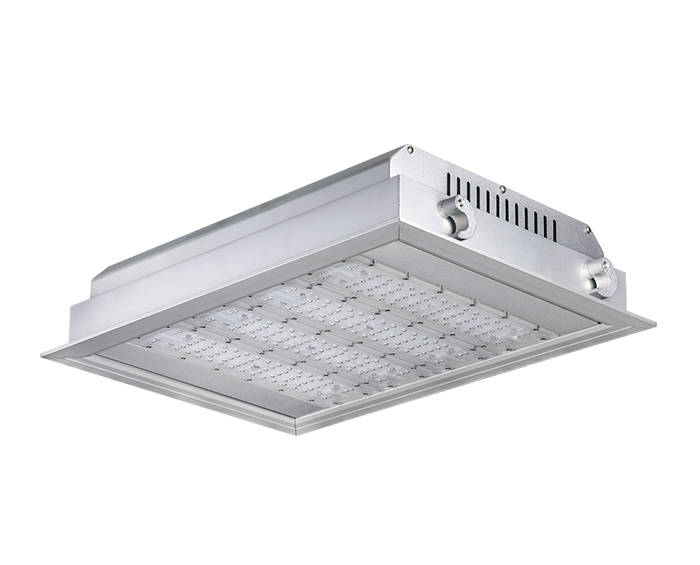

CE 200w Gas Station LED canopy fixture

200w Gas Station LED canopy fixture is a professional recessed LED canopy for installation into ceilings, awnings, gas stations, and other commercial and industrial awnings. It is explosion-proof certified and can be used with confidence in hazardous working environments.



Key Features

1. Wide power range: 40W~240W.

2. Special circuit design, single LED damage won't affect others' normal work.

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. ATEX Certified, available for the explosive area.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


LED BrandLumileds LUXEON 3030/5050

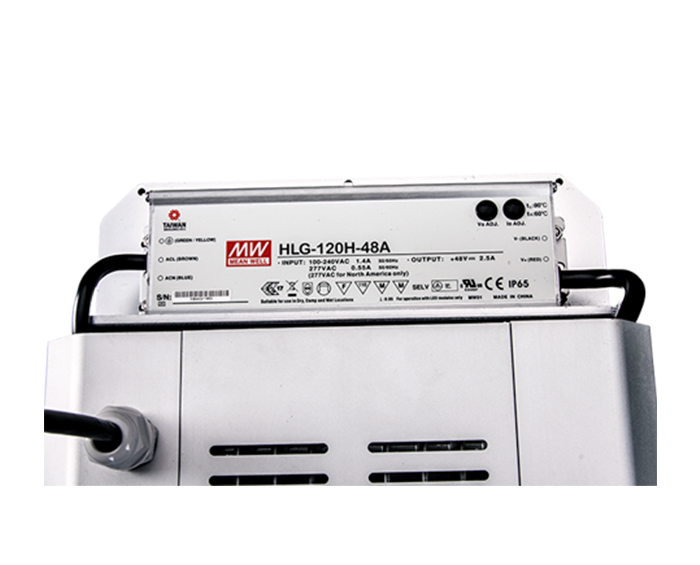

Driver BrandMeanwell HLG series
Normal Wattage200W
LED Module Quantity4 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-160 lm/w
Lamp Rated Lumen output26000-32000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Body Stretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80, ATEX
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


What is an LED canopy?

What is a canopy lamp? Canopy lights are usually installed outdoors under a drape. These luminaires illuminate the area below them. They can be equipped with clear lenses that focus light or frosted lenses that diffuse light, reducing glare and illuminating a wider area.

What are garage and canopy lighting?

Parking garage lighting and canopy lightings are terms used to describe outdoor and indoor lighting, usually surfaces, chandeliers, or recessed mounts to the ceiling, spires, or overhangs of a structure. This type of lighting is often used to illuminate areas used by vehicles and pedestrians.

What lights are used in gas stations?

Canopy lighting

The main type of LED lighting often used in gas stations is ceiling lighting. LED gas station canopy lights are usually installed in a canopy that covers a fuel pump.
