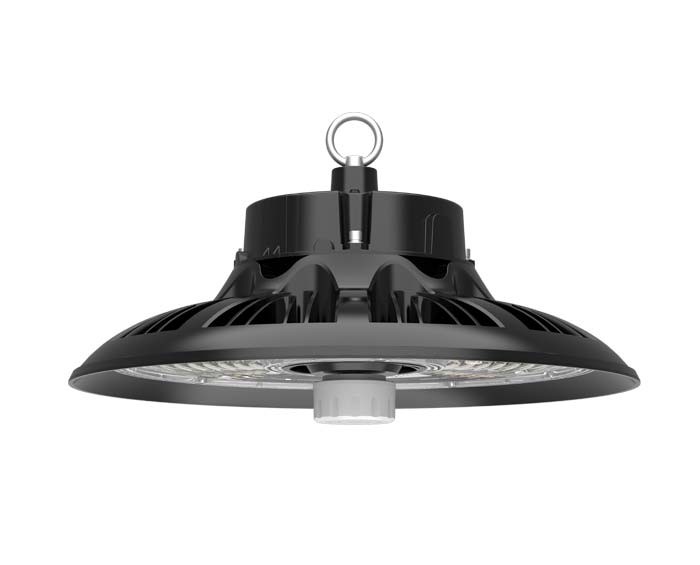

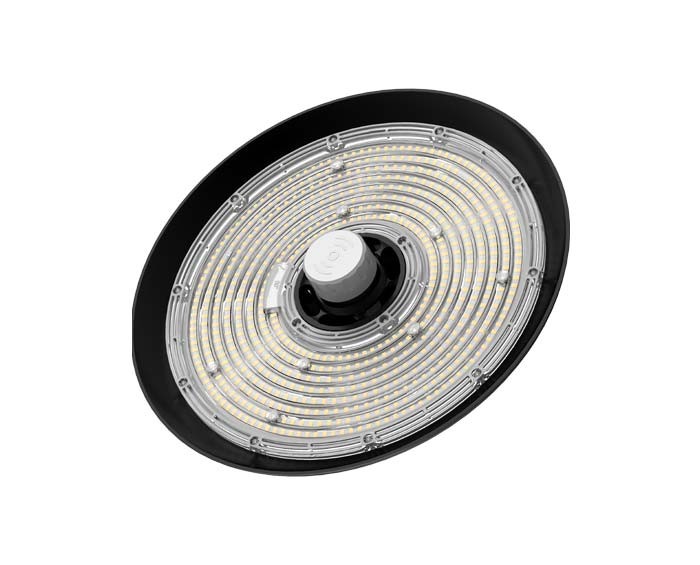

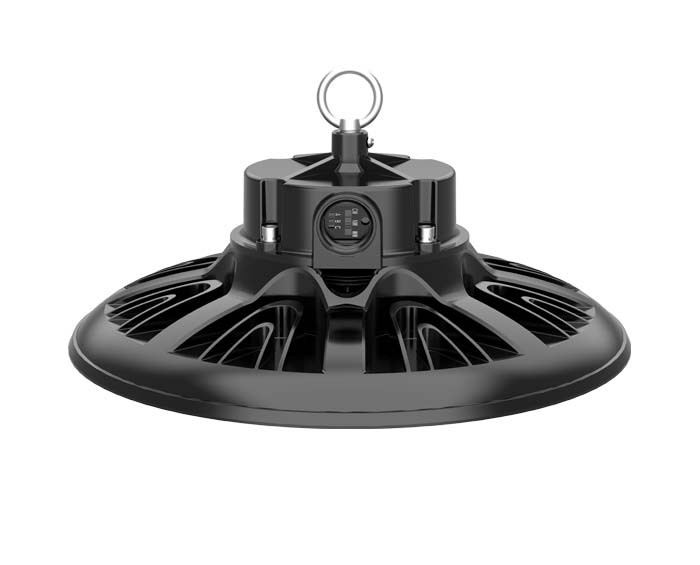

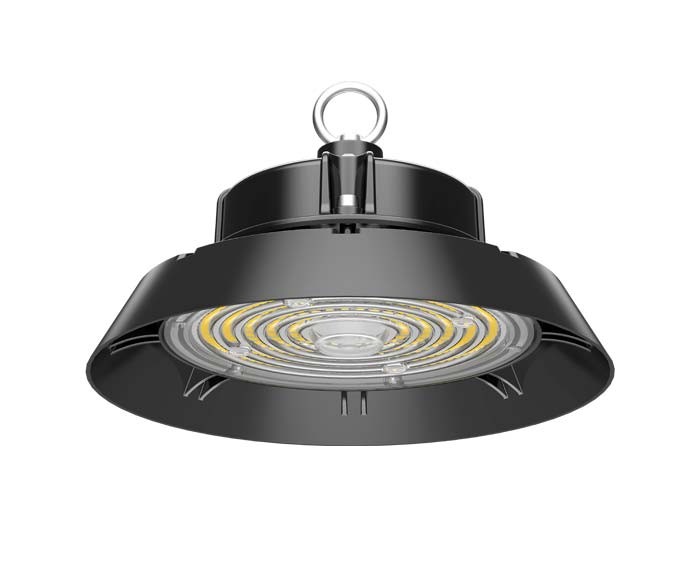

Series HB12 High Bay LED Warehouse Lights

The HB12 Series LED high bay led warehouse lights are designed to provide superior lighting solutions for a variety of commercial and industrial environments with power range from 60W to 500W. Compared to traditional high bays, they are smaller, more efficient, better looking, longer lasting and easier to install. Whether you are lighting a warehouse, manufacturing plant, stadium or retail space, our UFO high bay led warehouse lights offer unmatched performance, energy savings and durability to meet your lighting needs. The luminaires are adjustable in power and color temperature, and feature a high-quality power supply with a three-position dip switch for dynamic lighting solutions.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

Power can reach up to 500W
High luminous efficacy: Up to 190lm/W
Full die-casting aluminum housing
CCT & Power Selectable
Wide options for symmetry optics 40°, 60°, 90°, and 110°
Long lifespan with L70 >50,000 hours

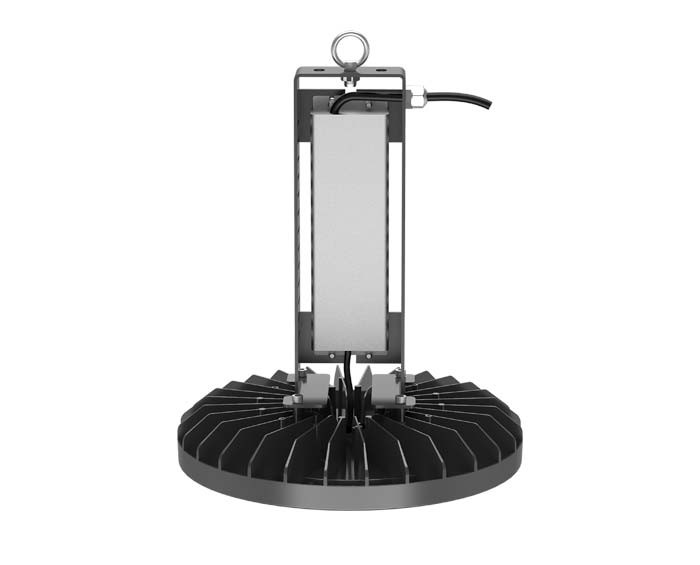

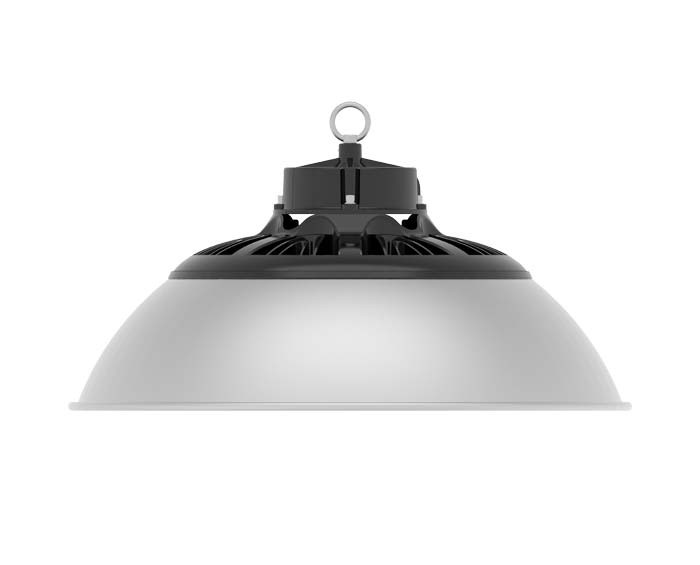

Optional accessories: Alu reflector, U bracket, Emergency battery, Steel rope
ENEC, CE, CB certified
Smart Control: 1-10V/ DALI dimming, Motion sensor, Zhaga socket

Specifications

Model No	ZGSM-HB12-60	ZGSM-HB12-100	ZGSM-HB12-150	ZGSM-HB12-200	ZGSM-HB12-240	ZGSM-HB12-300	ZGSM-HB12-400	ZGSM-HB12-500
Power	60W	100W	150W	200W	240W	300W	400W	500W
Input Voltage	AC100-277V, 50/60Hz
Lumen EFF.	150lm/W,170lm/W,190lm/W
Lumen Flux(+5%)	9,000LM	15,000LM	22,500LM	30,000LM	36,000LM	45,000LM	60,000LM	75,000LM
	10,200LM	17,000LM	25,500LM	34,000LM	40,800LM	51,000LM	68,000LM	85,000LM
	11,400LM	19,000LM	28,500LM	38,000LM	45,600LM	57,000LM	76,000LM	95,000LM
QTY Of LEDS(PCS)	130/172	208/300	300/450	420/680	420/680	616/935	1100/1530	1100/1530
LED Brand	LUMILEDS 2835 /SAN'AN 2835
Driver Brand	SOSEN Or PHILIPS						MOSO
CCT	3000K,4000K,5000K,5700K,6500K and 3CCT ADJ
CRI	>70/80
PF	0.95
Beam Angle	60°/90°/110°					40°/60°/90°
IP Rating	IP65
IK Rating	IK08
Warranty	5-year@SOSEN & MOSO, 7-year@PHILIPS
Dimension(mm)	233*145	260*145	287*147	305*149	305*149	342*168	447*178	447*178

FAQ

1. What is adjustable color temperature for high bay led warehouse lights?

Adjustable color temperature high bay led warehouse lights allow you to change the color temperature of the light output. Color temperature is measured in Kelvin (K) and typically ranges from warm yellowish light (around 2700K) to cool bluish light (up to 6500K).

2. What type of lighting is best for a warehouse?

Round high bay LED lights are ideal for large, open areas due to their wide beam spread and high lumen output. For warehouses with varied ceiling heights or specific task areas, a combination of linear high bays and LED strip lights may be more appropriate to ensure consistent lighting throughout.
