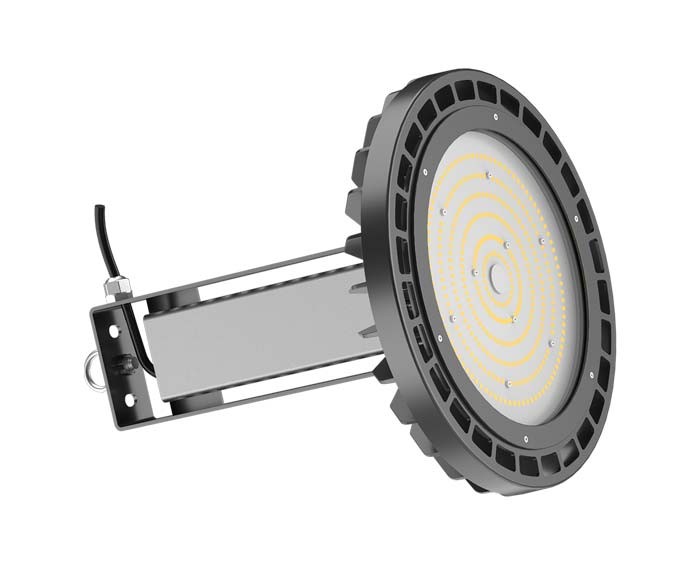

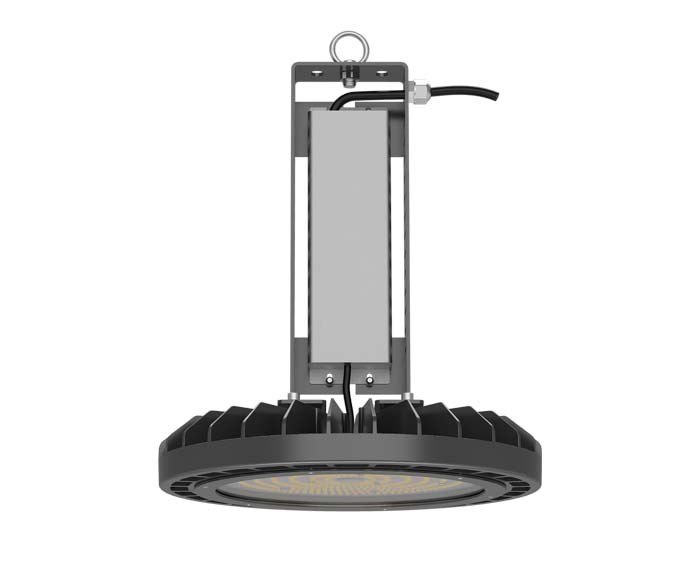

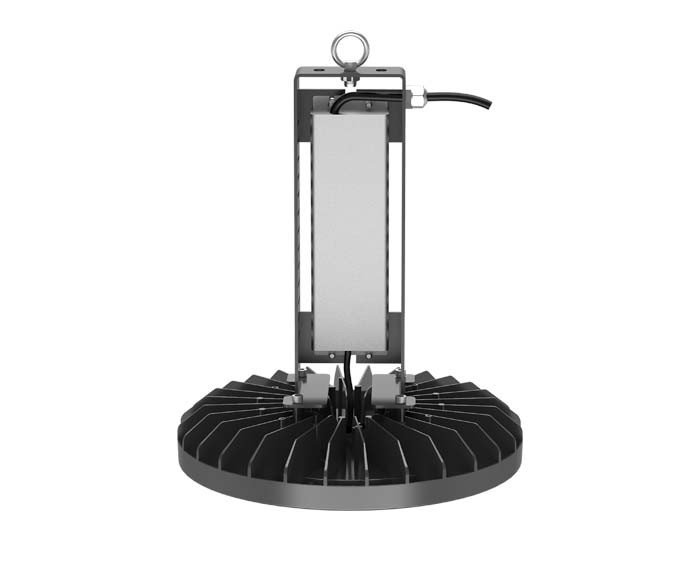

Series HB13 LED Industrial Lights Withstand High Ta

The HB13 series high temperature resistant LED industrial lights feature a vertically positioned LED driver and can operate in ambient temperatures up to 65°C. Standard lighting fixtures may not be able to withstand harsh environments such as steel mills, foundries and glass manufacturing plants. An excellent thermal management system ensures constant light levels and excellent efficacy of up to 150 lm/W even in high temperature environments. Designed to operate reliably in these harsh conditions, high temperature LED industrial lights ensure continuous and stable lighting with minimal maintenance requirements.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Power range 150W up to 800W

2. Tempered glass cover

3. Full die-casting aluminum housing

4. Suitable for high ambient temperature up to 65°C

5. High end LED driver with excellent MTBF

6. ENEC, CE, CB certified

7. Wide options for symmetry optics 25°, 45°, 60°, 90°, and 110°

8. Smart Control: 1-10V/ DALI dimming, Timer dimming, Zigbee /Lora control

Specifications

Model No.	ZGSM-HB13-150	ZGSM-HB13-200	ZGSM-HB13-300	ZGSM-HB13-400	ZGSM-HB13-500	ZGSM-HB13-600	ZGSM-HB13-800
Power (±5%)	150W	200W	300W	400W	500W	600W	800W
Input Voltage	AC100-277V, 50-60Hz
LED Brand	LUMILEDS 3030
Qty of LED	250pcs	330pcs	500pcs	670pcs	864pcs	1000pcs	1632pcs
Lumen Flux (±5%)	22,500LM	30,000LM	45,000LM	60,000LM	75,000LM	90,000LM	120,000LM
Efficacy	150lm/W	150lm/W	150lm/W	150lm/W	150lm/W	150lm/W	150lm/W
CCT	3000K/4000K/5000K/5700K/6500K
Driver Brand	SOSEN
CRI	>70/80
PF	>0.95
Beam Angle	110°		25°/45°/60°/90°/110°
IP	IP65
IK	IK08
Warranty	5 Years
Operating Temperature	-30°C to +65°C
Dimension(mm)	280*400	320*400	448*485			598*507

FAQ

1. What type of lighting is most commonly used in high-ceiling industrial spaces?

For industrial spaces, high-bay lighting is the preferred solution. These luminaires are designed for spaces with high ceilings (typically 12 feet or higher) and provide excellent coverage. ZGSM offers a variety of LED factory lights with varying wattages and mounting options to meet diverse lighting needs and installation environments.

2. Where are LED Industrial Lights Withstand High Ta suitable?

High-temperature LED industrial lights are suitable for a variety of harsh, high-temperature environments, including steel mills, aluminum foundries, power plants, and other manufacturing facilities where extreme temperatures are common. These luminaires can withstand high ambient temperatures, ensuring reliable and efficient lighting in demanding conditions.
