Tempered Glass 30w led floodlight

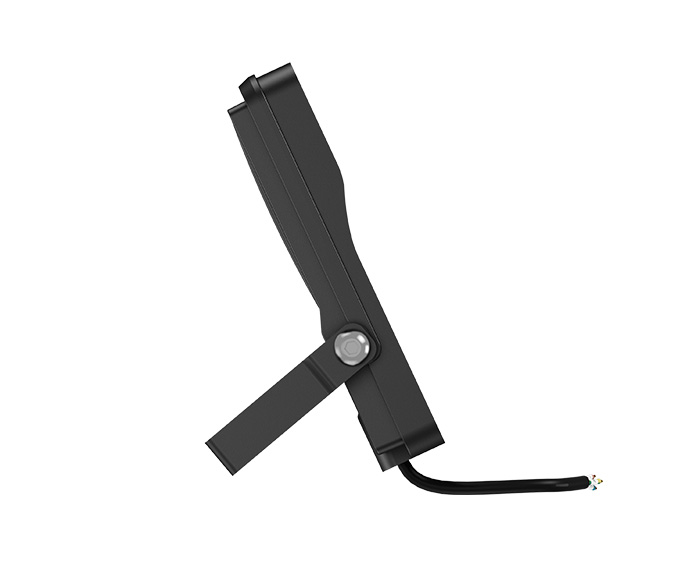

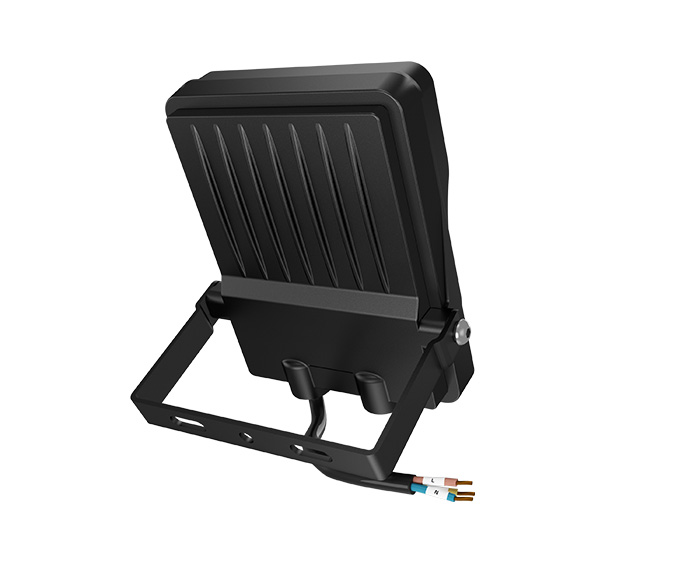

Tempered Glass 30w led floodlight was designed for the replacement of halogen floodlights. With a flexible mounting bracket, the lamp is very easy to install. For garages, public areas, building facades, construction areas, and billboards.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

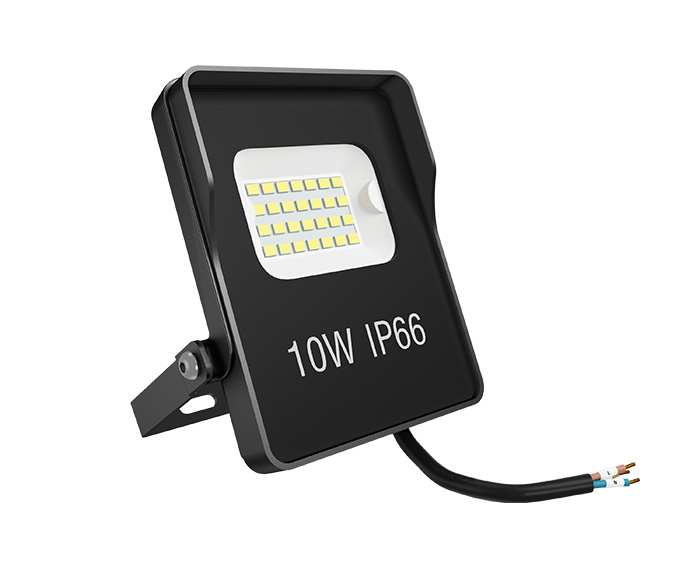

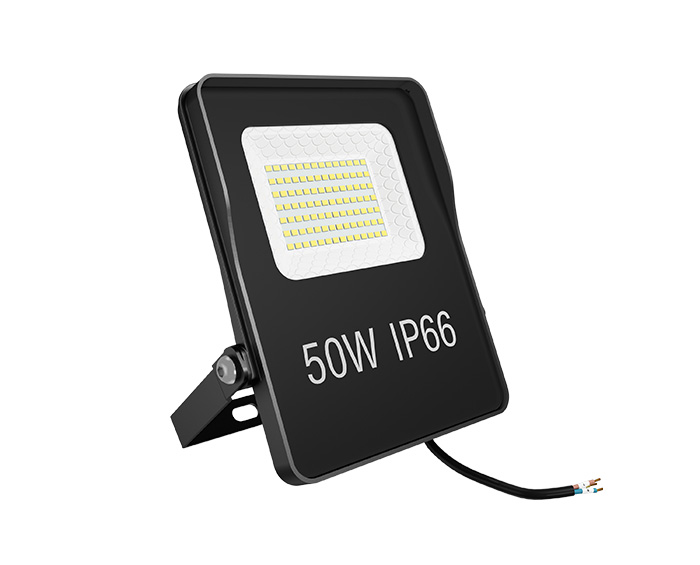

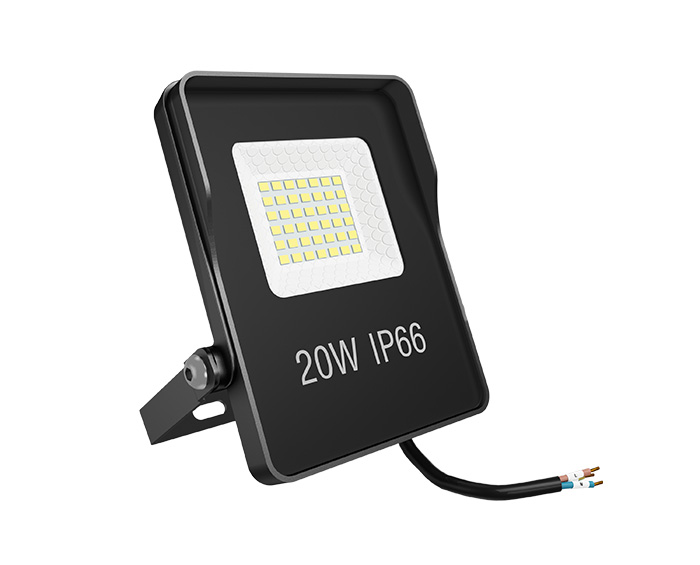

1. Wide power range: 10W~50W

2. Ideal for retro-fit of existing halogen fixtures

3. No upper light output ratio (ULOR 0%) when mounted at 0° tilt

4. Optimized weight and size due to compact design

5. Energy savings of up to 90 % compared to halogen floodlights

6. No mercury or other hazardous materials

7. 2 years warranty

8. Multiple lighting distributions available

9. CE/ RoHS/ IK08/IP66

Specifications

Model	ZGSM-FL07-30
LED Brand	SMD 2835
Driver Brand	Integrated Driver
Normal Wattage	30W
Input Voltage	220-240VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	115lm/w
Lamp Rated Lumen output	3450 lm (Lumen tolerance +/- 5%)
Color Rendering Index	70 (80 is optional)
Color Temperature	4000K, or 5000K
Photometric Type	120 degrees
Optimal Operating Temperature	25℃
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100,000 hours -L70, @25 ºC (77 ºF)
Body	Die casting aluminum
Cover	Toughened glass
Rating	IP66 IK08
Protection	Class I
Certification	CE, ROHS, LM80
Dimming Options	Non-dimming
Control Options	PIR sensor
Color Options	Black
Warranty	2 years

FAQ

What is a driverless LED floodlight?

Driverless LEDs use high-voltage integrated circuits with adjustment and change chips to cleverly change the number of LEDs in the string during the cable cycle so that the voltage of the LED string matches the instantaneous cable voltage.

What is the equivalent of a 30W LED floodlight?

When replacing halogen lamps with LED replacements, always look for lumens. For example, our 30W slim LED floodlight emits 3450 lumens of light – the equivalent of a 100W halogen floodlight while consuming much less energy.
