UFO Type LED High Bay Light

Home  /  Products / LED High Bay Light / UFO Type LED High Bay Light
  • 100W led ufo lights
  • 100W led ufo lights
  • 100W led ufo lights
  • 100W led ufo lights
  • 100W led ufo lights

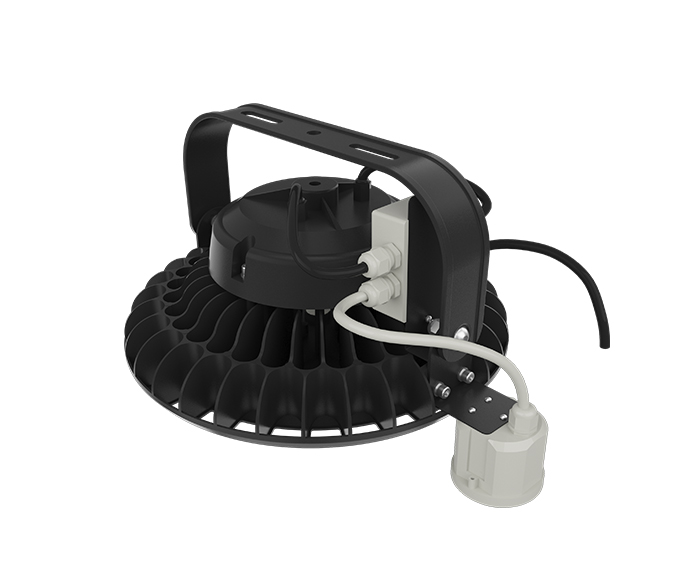

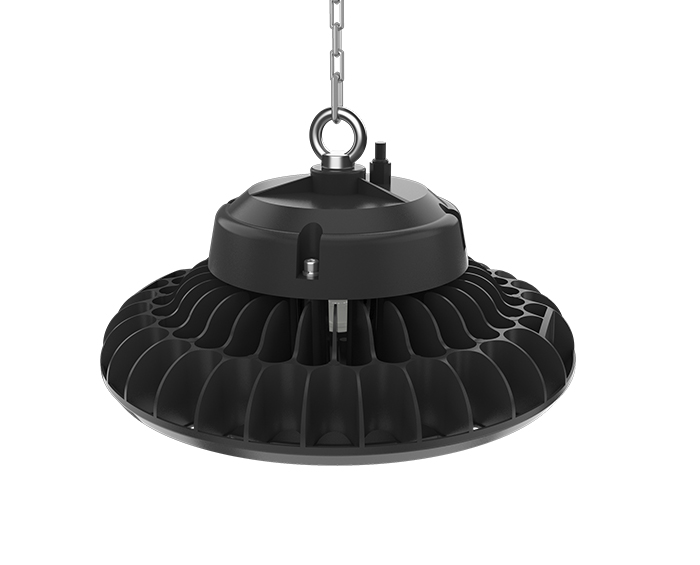

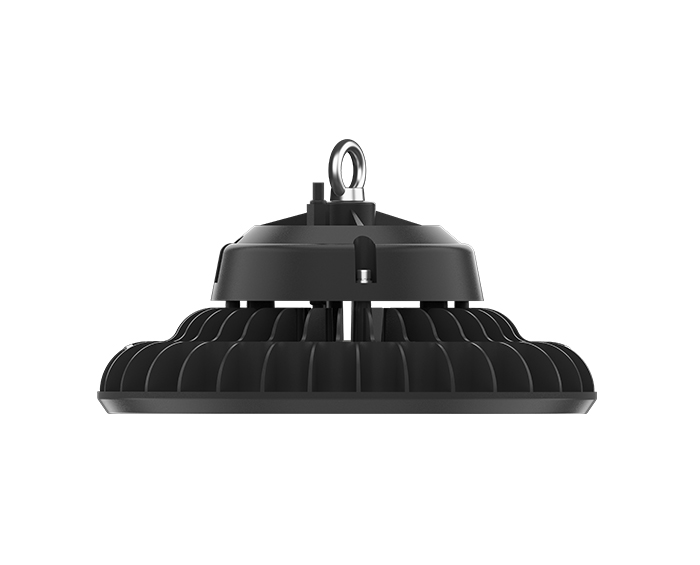

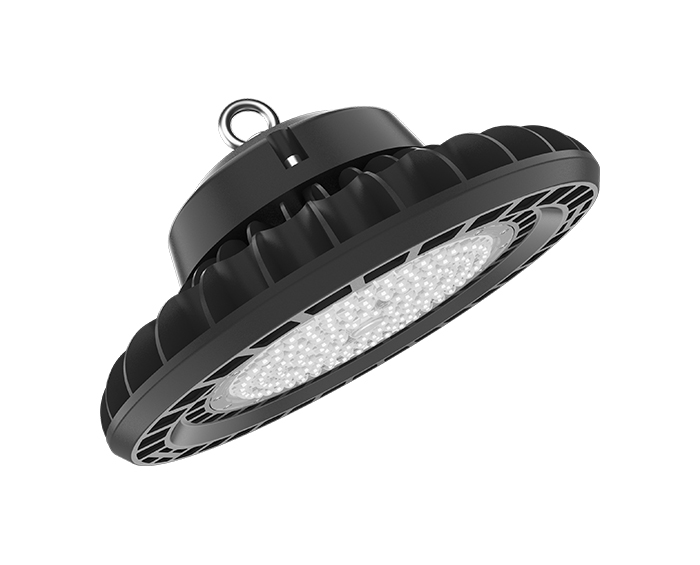

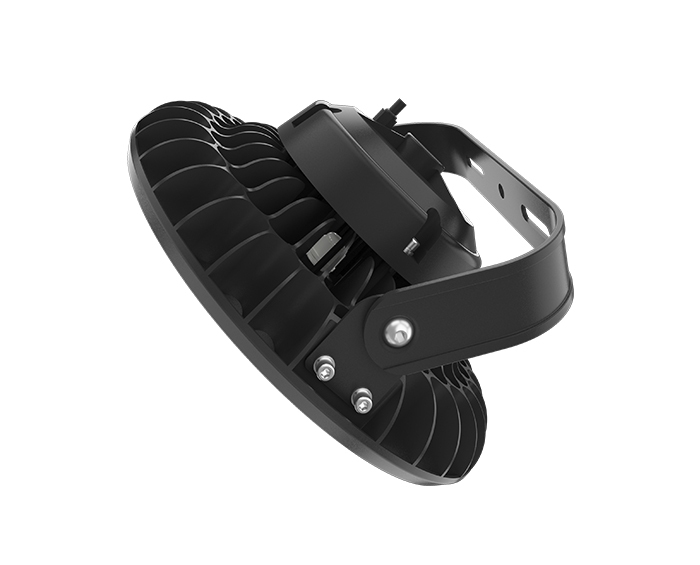

100W led ufo lights

100W led ufo lights, Round hollow design, beautiful appearance, easy to dissipate heat. Various lighting control options are available, such as DALI, 1-10V, and motion sensors. Multiple lighting distributions are available.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 100W~200W.

2. Special circuit design, single LED damage won't affect others' normal work.

3. High Lumen output up to 155lm/ w with high-quality LED chips.

4. Variety applications with different mounting Accessories.

5. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

6. Designed to last at least 100, 000 hours at L70.

7. Multiple lighting distributions are available.


Specifications

ModelZGSM-UFO100M
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HBG series
Normal Wattage100W
LED  Quantity3030: 152pcs 5050: 78pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-155 lm/w
Lamp Rated Lumen output14000-15500 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
Cover110°-Tempered glass;60°-PC lens
RatingIP65 IK08
Protection Class I
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsBlack
Warranty5 years

FAQ

Why do your high bay lights need reflectors?

Reflectors or diffusers are often used in traditional high bay lights, since these lamps have a 360-degree beam angle, they require a reflector to redirect the light to the desired illuminated area. Reflectors are also used to reduce lighting glare.

There are many types of LED high bay lights, and reflectors are often used with UFO LED bay lights and bell LED bay lights.

For LED high bay lights, since they already have an optical lens to adjust the beam angle (mainly 60°/90°/120°), the reflector is not a necessary part for them.


What does UFO mean in LED lights?

The answer is already in the question. UFO LED Industrial Light is a UFO disc-shaped LED luminaire system with a flat monolithic aluminum housing with optics specifically configured to optimize the light distribution in a given area without relying on bulky reflectors.
