Split Solar Street Light

Home  /  Products / Solar Street Light / Split Solar Street Light
  • IP66 waterproof 25-120w solar power system
  • IP66 waterproof 25-120w solar power system
  • IP66 waterproof 25-120w solar power system
  • IP66 waterproof 25-120w solar power system
  • IP66 waterproof 25-120w solar power system

IP66 waterproof 25-120w solar power system

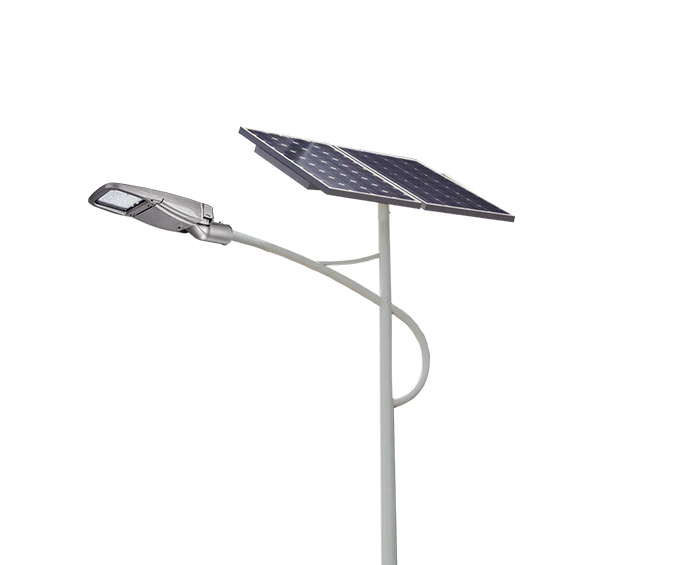

Series K Split Solar Street Light

Application

Street, highway, park lot, roadway, path, Gardens and etc


Share:
PRODUCT DESCRIPTION

Key Features

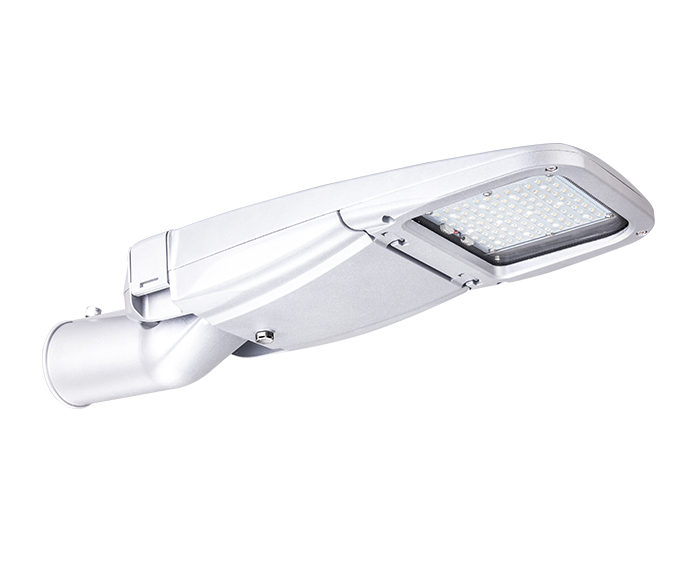

1. High-end LED Street Light

a. System efficiency up to 150lm/w. b. 2. Tool-less open for easy installation.

c. Vertical and horizontal installation both ok. d. Big power range from 25-120w.

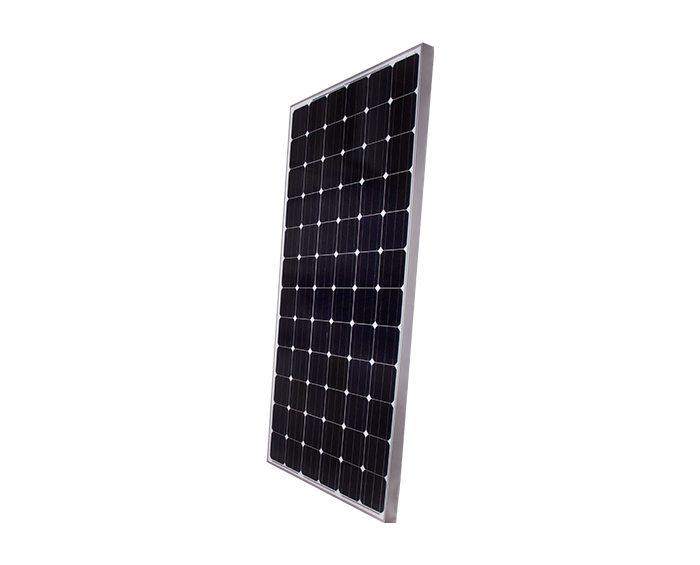

2. High Efficacy Solar Panel

a. High efficiency 20% monocrystalline cells. b. 25-year linear performance warranty.

c. Certified by TUV.  d. 0 to +5W positive tolerance.

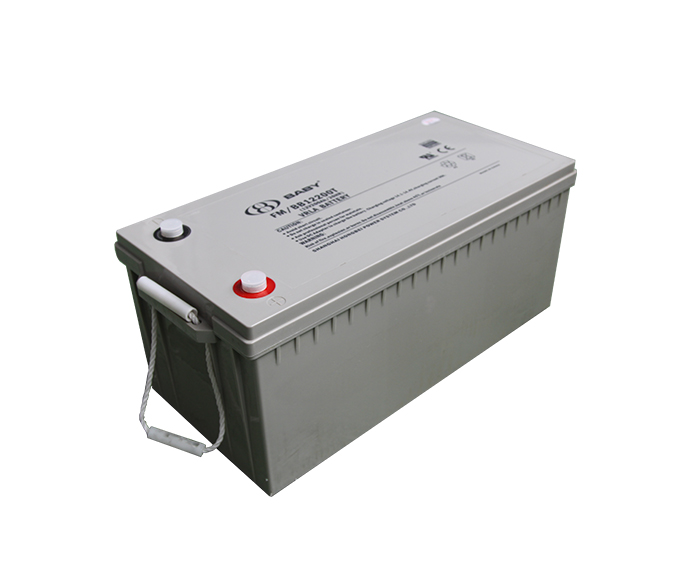

3. Stable Performance Battery

a. Long lifetime up to 8-10 years. b. Maintenance free operation. c. Gel/Lead-acid Battery, or Lithium Battery.

d. Environmental & non-polluting. e. Safe and reliable

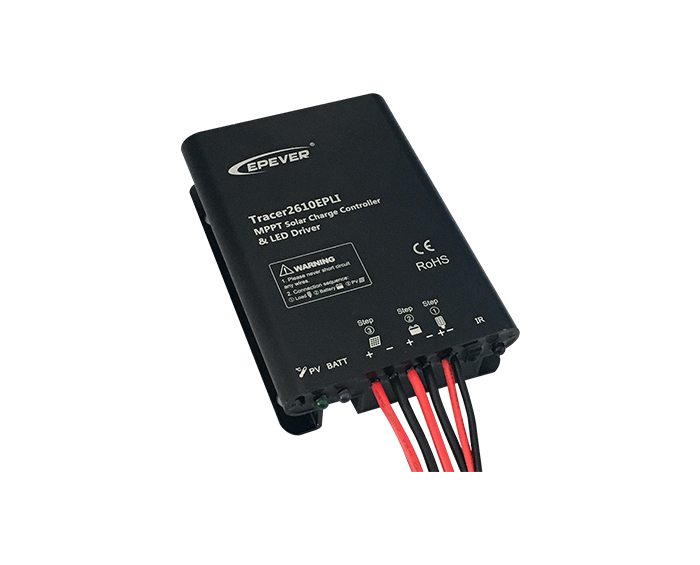

4. MPPT Controller

a. 20% energy utilization more than PWM. b. The infrared wireless communication. c. Metal case, IP68 waterproof.

d. Intelligent mode to extend battery working time. e. 3 time dimming. f. Build-in the Constant LED Driver

5. High Quality Cable

a. Cu content exceeds 99.9999%. b. GB standard CU/PVC/PVC.

c. 2×2.5mm2 copper stranded core cable. d. Double protective layer, long service life.

6. Light Pole

a. Galvanization standard: ASTMA123/EN ISO1461  b. Hot dip-galvanized.

c. Galvanize Q235 d. OEM design


Specifications

ModelLD25KSLD35KSLD55KSLD60KMLD90KM
Power25W35W55W60W90W
Lumen3125-3625LM4375-5075LM8400-9900LM11200-13200LM14000-16500LM
Warranty3 YEARS3 YEARS3 YEARS3 YEARS3 YEARS
PanelsMono 80w x1Mono 100w x1Mono 100wx2Mono 100wx2Mono 150wx2
Battery120AH x 1150AH x 1150AH x 2150AH x 2200AH x 2
Controller10A/12v10A/12v10A/24v10A/24v15A/24v
Pole height3-5m4-6m6-8m6-8m8-12m
Pole distance8~12m9~14m18-25m18-25m24-36m
Color Rendering IndexRa>70
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric TypeType I Medium;Type II Medium;Type III Medium
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast aluminum Housing
CoverTempered Glass
Pole Fitter Diameter60mm ( 50mm optional)
ControlDaylight sensor, Timer
CertificationCE,ROHS,LM80


Packing Details

Due to lot of components in solar street light, so please contact us for packaging details.
