Solar LED Garden Light

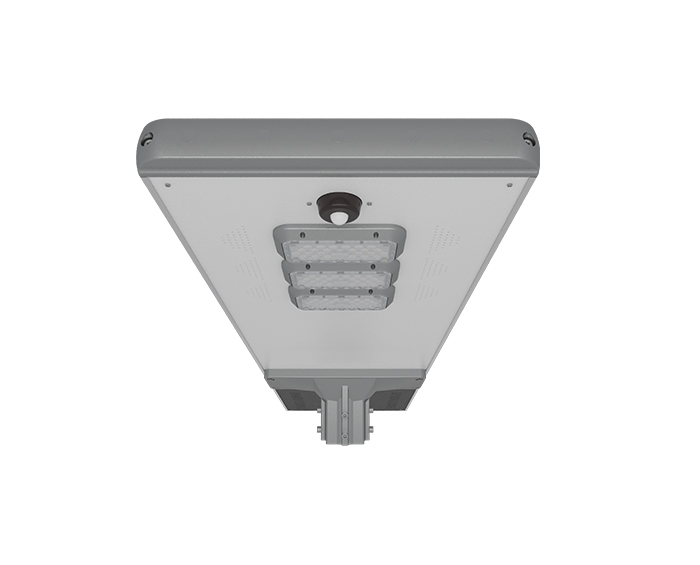

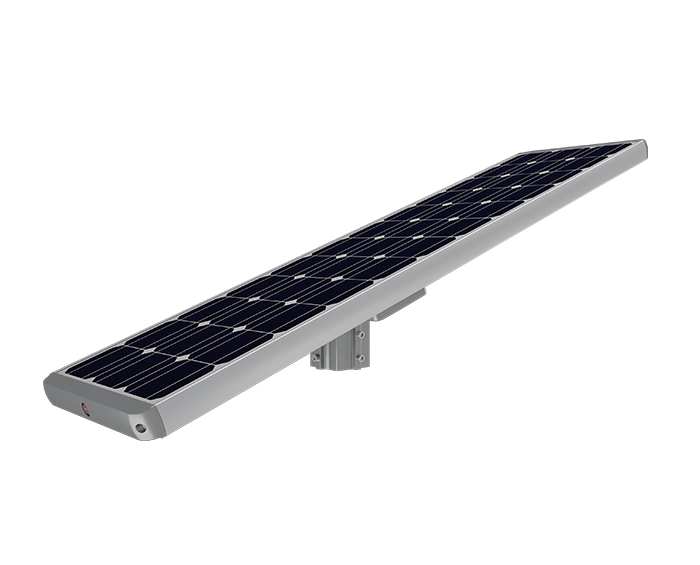

Series PV2 Solar LED Garden Light
Model：
ZGSM-PV1006040
Application：
Street | Road | Highway | Parking lot | Path | Garden
all in one solar street light, outdoor solar street lights, solar led garden light, solar parking lights, all in one street light
all in one solar street light, outdoor solar street lights, solar led garden light, solar parking lights, all in one street light
1. Wide power range: 10W~60W.
2. Special circuit design, single LED’s damage won't affect others' normal work.
3. High Lumen output up to 145lm/ w with high quality LED chips.
4. Lithium batteryimproves the reliability of the luminaire.
5. Monocrystalline silicon solar panels, greatly improving solar energy conversion efficiency.
6. Smart MPPT controller realizes intelligent control of lamps.

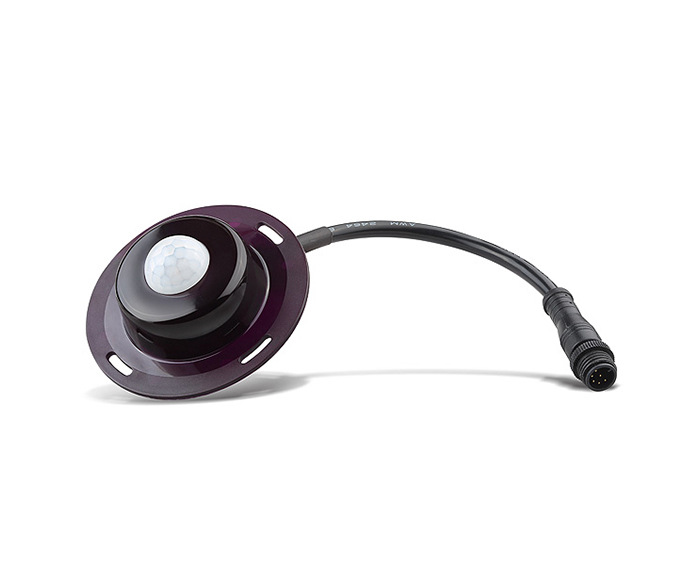

7. Multiple lighting control options are available, e.g. motion sensor, PIR sensor.
all in one solar street light, outdoor solar street lights, solar led garden light, solar parking lights, all in one street light
| Model | ZGSM-PV1006040 | ||
| LED Number | 90units | ||
| Nominal Power | 60W | ||
| Battery Spec. | 40AH /11.1V | ||
| Solar Panel Spec. | Monocrystal 100W /18V | ||
| LED Brand | Philips Lumileds 3030 2D | ||
| Luminous Flux | 7800lm | ||
| Light type | 1S | ||
| CCT | 3000K.4000K.5000K.5700K | ||
| Charge time | <4.5 Hours (Low battery voltage) | ||
| Worktime at Energy -saving Model(30%) | more than 19.5 hours | ||
| Discharge Temperature | -20℃~+60℃ | ||
| Charge temperature | <60℃ | ||
| Light control voltage | 5-11V | ||
| mounting height | 6-8m | ||
| space between light | 18-35m | ||
| Pole Diamerter Fixture | Round pole: Φ60~85mm; Square pole : 60 x60 ~77 x77mm | ||
| Rating | IP65 IK10 | ||
| Induction Type | Human infrared induction or microwave induction function | ||
| Certification | CE,ROHS,LM80 | ||
| warranty period | 3 years | ||
all in one solar street light, outdoor solar street lights, solar led garden light, solar parking lights, all in one street light
| Fixture Dimension | 1610x426x229mm | ||
| Fixture Weight | 22.1kg | ||
| Packing Dimension | 1665x485x140mm | ||
| Packing Weight | 25kg | ||
Solar Street Light Project In Mexico

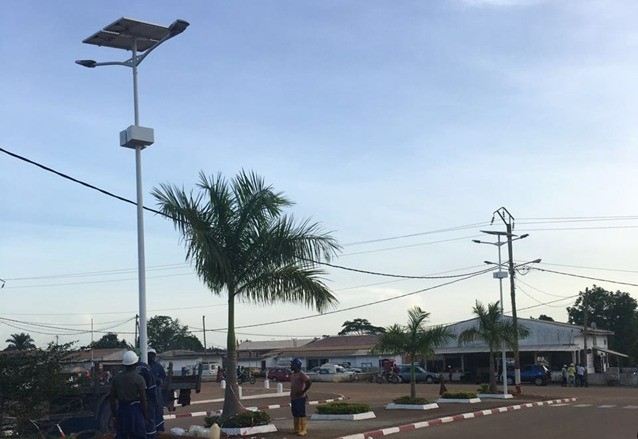

Solar Street Light Project in Cameroon
